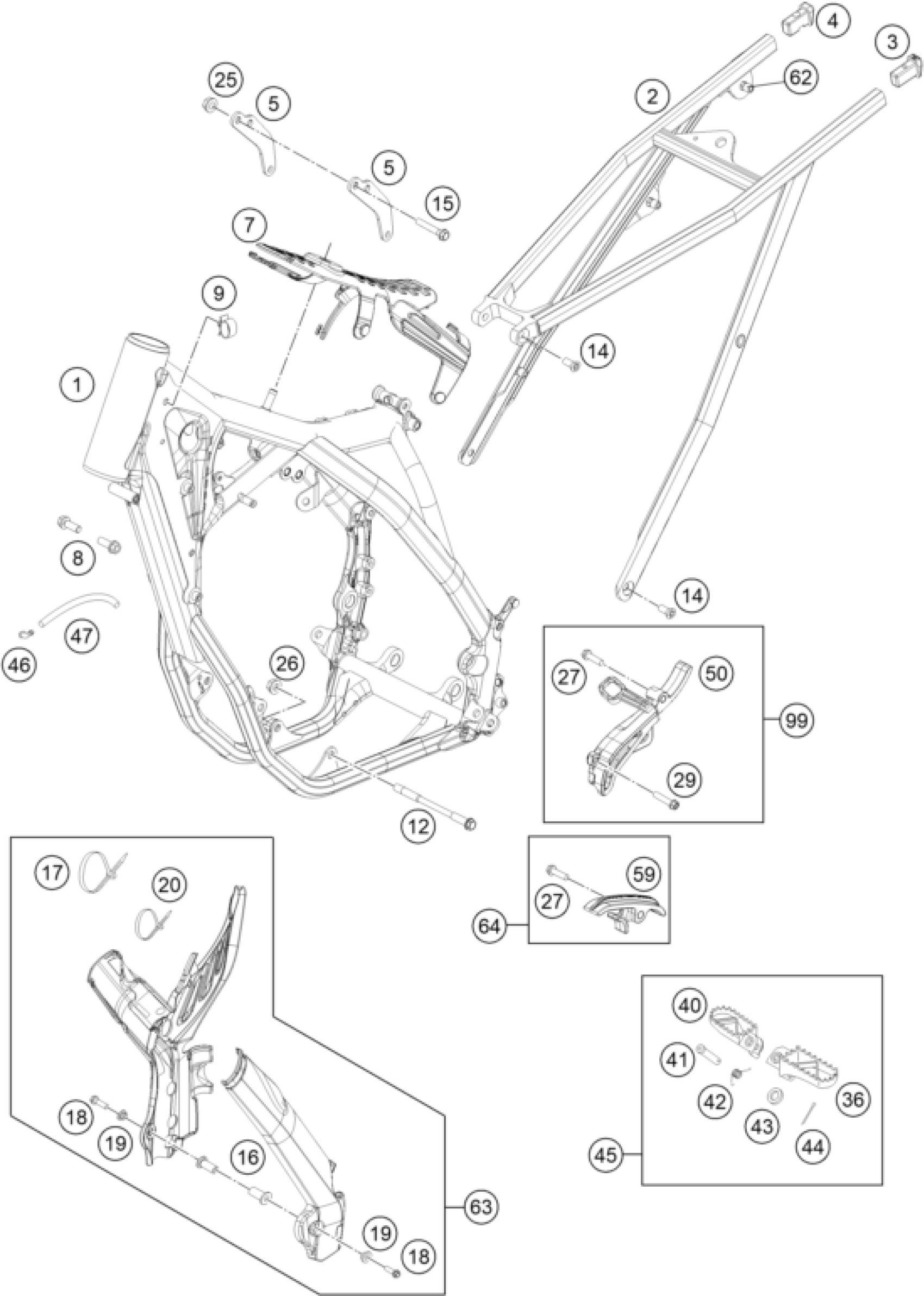

KTM 250 XC-F 2015 FRAME Diagram
#
Description
Price
36
FOOT PEG L/S SILVER 02
59003040250
$43.66
1
FRAME ''777N4'' ORANGE 201
7770300130004
$1,435.18
2
SUB FRAME SX
77203002000
$391.48
3
SUB FRAME APPLICATION LEFT
78103002010
$22.43
4
SUB FRAME APPLICATION RIGHT
78103002020
$20.37
5
REINFORCING
77703013000
$7.38
7
TANK REST RUBBER
77207012000
$9.44
8
HH collar screw M8x16 TX40 SL
0025080166S
$3.08
9
WIRING HOLDER 16MM
57013072100
$1.49
12
engine brac.scr. M10x115
77203014000
$8.97
14
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
$2.05
15
HH COLLAR SCREW M8X44 WS13
56530079000S
$3.08
16
BLIND PLUG-IN NUT M5 WN 22A 03
54803092050
$5.23
17
CABLE TIE 300/4,8MM BLACK
44011076305
$2.05
18
COU.SUNK SCR. AH ISO7380 M5X25
0738050250
$1.49
19
Bush f. frame protection 03
54803092060
$4.11
20
CABLE TIE 140/2,5MM BLACK
44011076140
$1.49
25
Hex. nut DIN EN 1661 M8 WS13
06923080003
$2.05
26
SELF LOCKING NUT M10 CU WS=14
54310086100
$2.05
27
HH collar screw M8x30
0025080306
$3.08
29
HH collar screw M6x40 TX30
0025060406
$3.08
40
FOOT PEG R/S SILVER 02
59003041250
$43.66
41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
$12.43
42
FOOTREST SPRING L/S & R/S
54603041000
$5.23
43
washer DIN 125 A 10.5
0125100003
$2.05
44
PIN DIN0094-3,2X25 STEEL
0094032253
$1.49
45
FOOTPEG L.+R. CPL. 03
5030314013390
$167.45
46
ANGLE PIECE '97
50303089000
$5.23
47
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
50
SPROCKET COVER 350 SX-F
77203096000
$15.61
59
CHAIN SLIDER LOWER PART CPL.
77203053000
$9.06
62
BLIND RIVET NUT EM6-60LF/HX
77303139000
Unavailable
63
PLASTIC FRAME PROTECTION SET
77203094000
$51.98
64
CHAIN SLIDING KIT BELOW CPL.11
77203053010
$18.78
99
SPROCKET COVER KIT
77203096010
Unavailable
