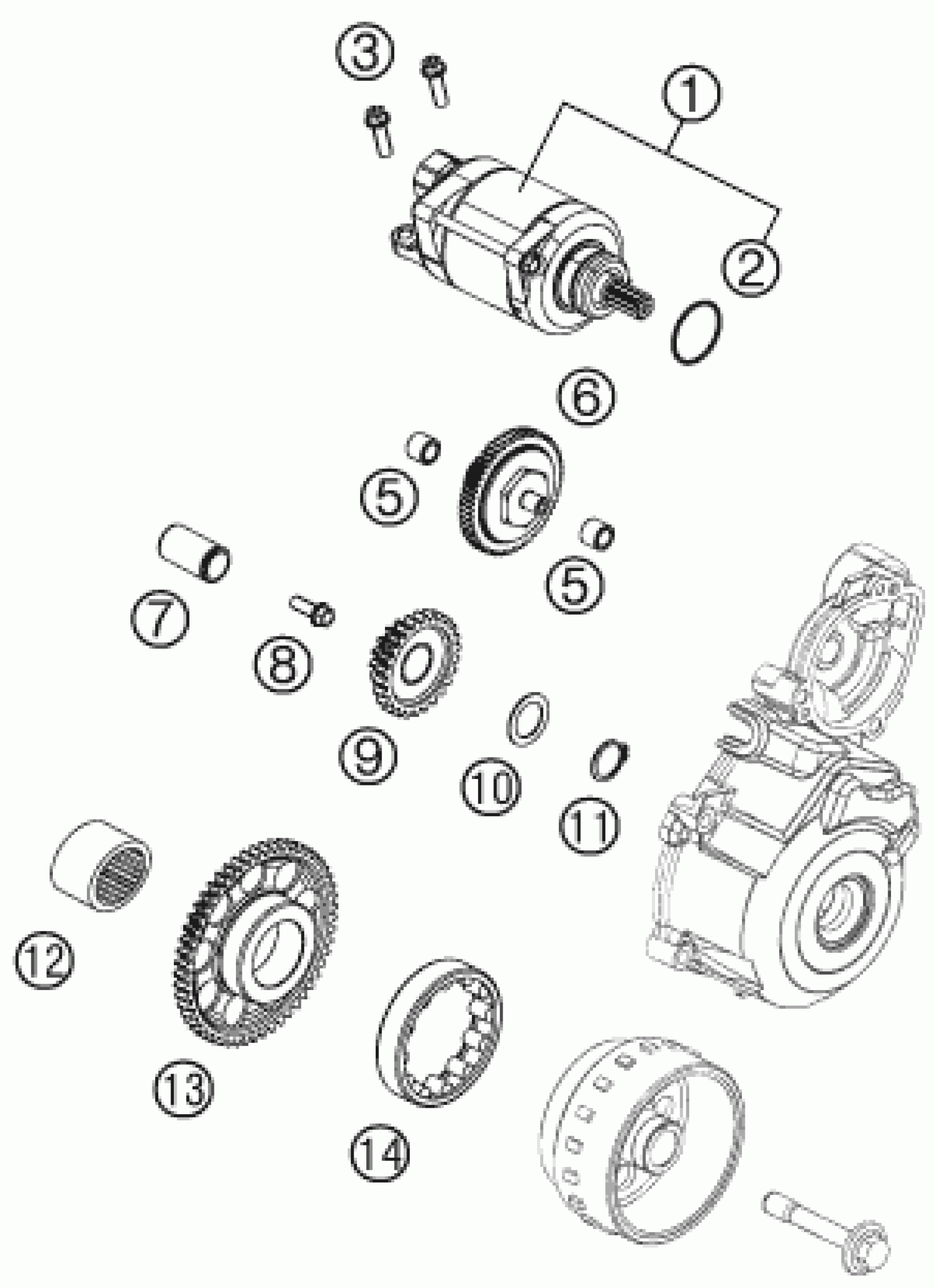

KTM 250 XC-F 2013 ELECTRIC STARTER Diagram

E-STARTER ENGINE CPL.

77240001100

$286.29

O-RING 25,00X3,00 NBR 70

0770250030

$3.08

HH collar screw M6x25 TX30

0025060256

$3.08

NEEDLE BUSH HK 0810 DIN 618

0618081210

$5.23

TORQUE LIMITER

77240016000

$165.95

INTERMEDIATE STARTING GEAR

77240022000

$79.00

STOP DISK 17,2X25X1

54633090000

$5.23

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

BUSHING PIN

59040028000

$10.46

CIRCLIP DIN0471-17X1

0471170010

$2.05

NEEDLE BUSH HK2516 25/32/16 02

0618253216

$9.90

FREEWHEEL GEAR

77840020100

$132.20

ROLLER FREE WHEEL

77240026000

$201.20
