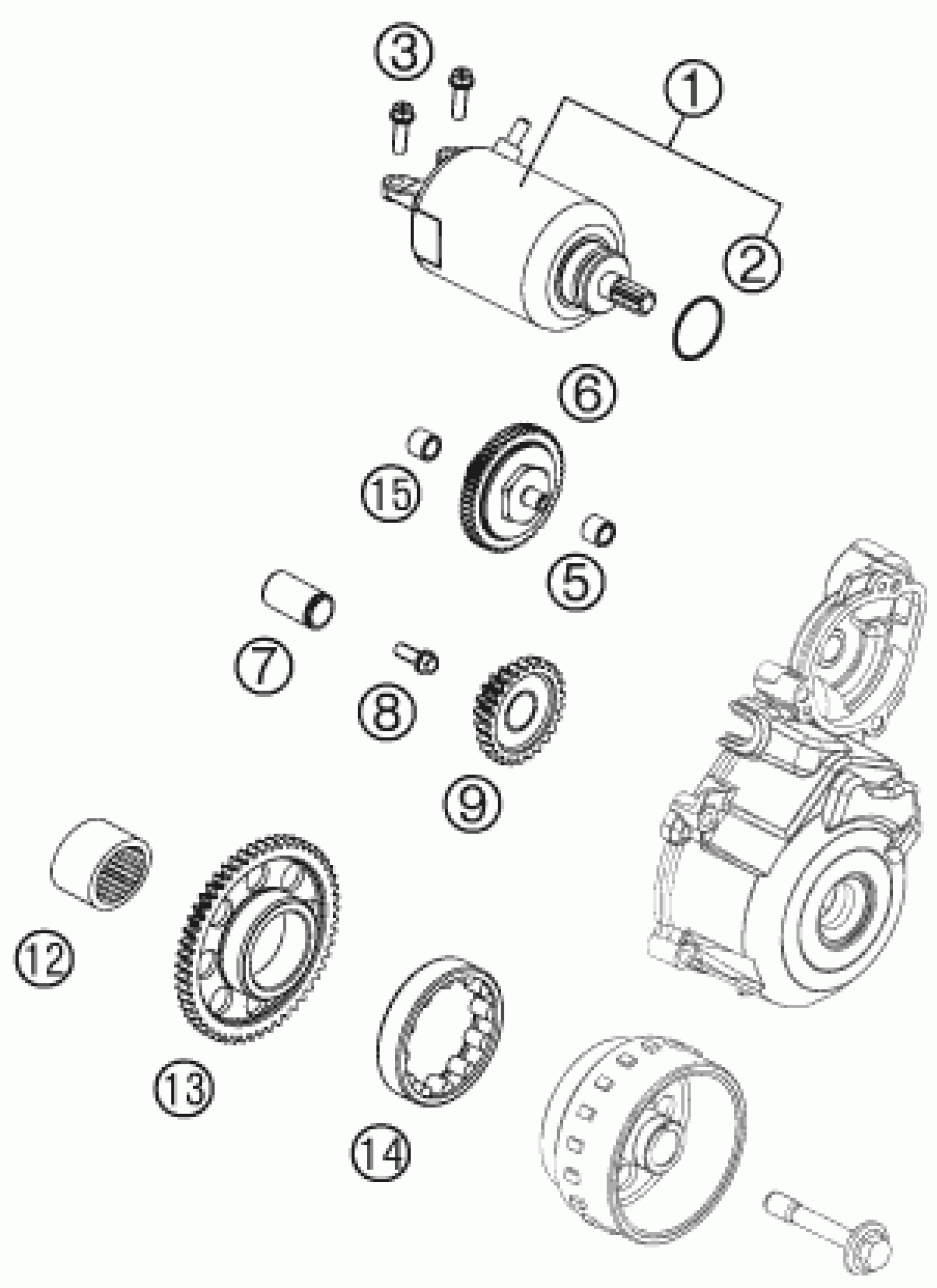

KTM 250 XC-F 2012 ELECTRIC STARTER Diagram

#

Description

Price

1

E-STARTER ENGINE 2007

77040001000

Unavailable

2

O-RING 25,00X3,00 NBR 70

0770250030

Unavailable

3

HH collar screw M6x20 TX30

0025060206

Unavailable

5

NEEDLE BUSH HK 0810 DIN 618

0618081210

Unavailable

6

TORQUE LIMITER

77240016000

Unavailable

7

BUSHING PIN

59040028000

Unavailable

8

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

9

INTERMEDIATE STARTING GEAR

77240022000

Unavailable

12

NEEDLE BEARING HK 3016 B

0618301617

Unavailable

13

FREEWHEEL GEAR

77240020000

Unavailable

14

ROLLER FREE WHEEL

77240026000

Unavailable

15

SLIDING SLEEVE 8X10X8

77140017000

Unavailable
