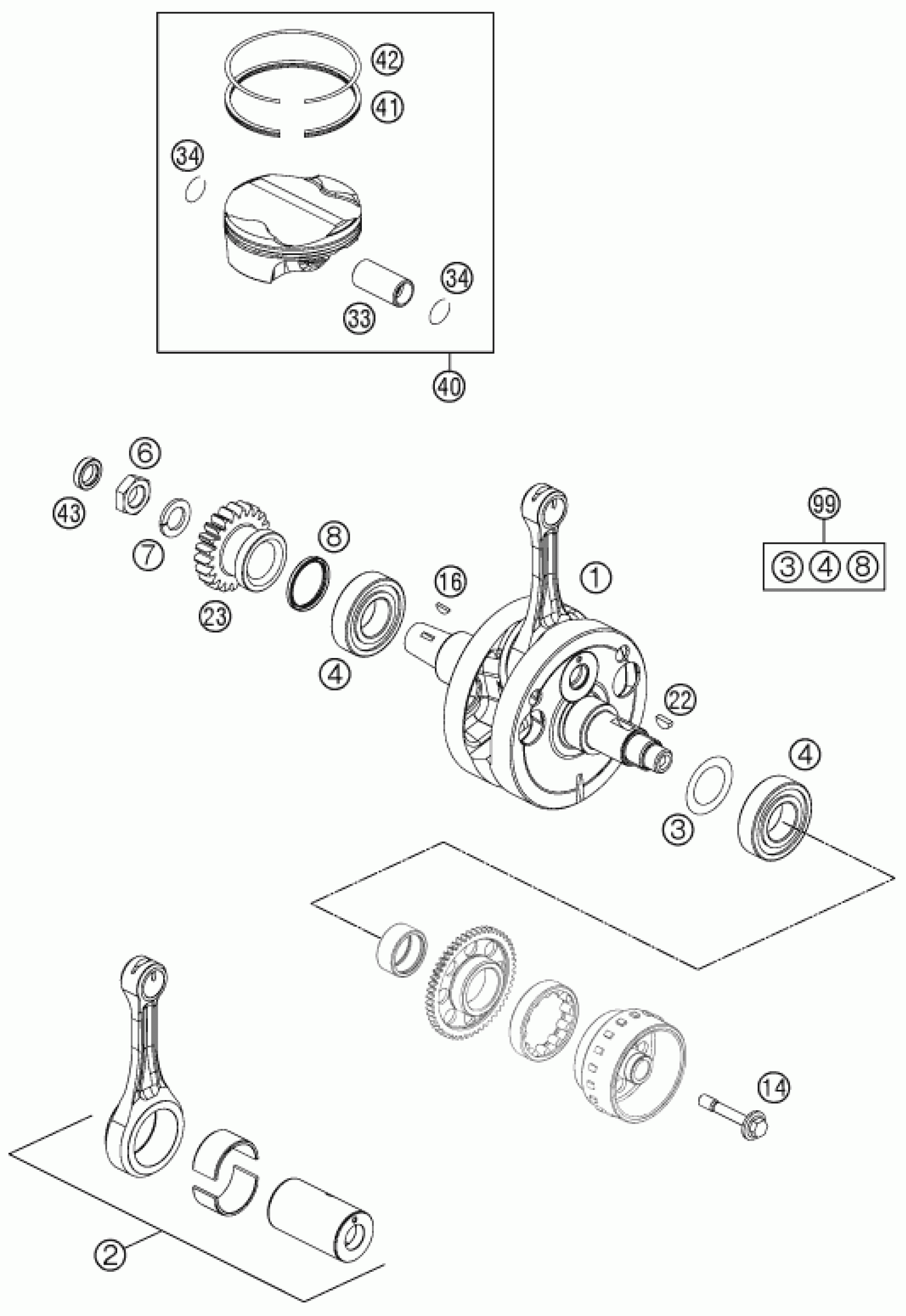

KTM 250 XC-F 2012 CRANKSHAFT, PISTON Diagram

#

Description
Price

3

THRUST WASHER 30,5X45X0,10

56030081000

Unavailable

1

CRANKSHAFT CPL.

77130018100

Unavailable

2

CONNECT. ROD REPAIR SET

77130015044

Unavailable

3

THRUST WASHER 30,7X47X0,15

56030081100

Unavailable

3

THRUST WASHER 30,5X45X0,30

56030081200

Unavailable

4

CYL.ROLLER BEAR.NJ206 ET2XCS46

50330082000

Unavailable

6

HEX.NUT L/SH M18X1,5

54630029000

Unavailable

7

LOCK WASHER VSK 18

58132072000

Unavailable

8

SH.SEAL RING 35X42X4 B10FNIB

0760354240

Unavailable

14

FLYWHEEL SCREW

77339010100

Unavailable

16

WOODRUFF KEY 5X6,5 HARDED

6946005

Unavailable

22

WOODRUFF KEY DIN6888-3X3,7

0888030037

Unavailable

23

PRIMARY GEAR 22T.

77132000022

Unavailable

33

PISTON PIN

77130033000

Unavailable

34

CIRCLIP 05

77030074000

Unavailable

40

PISTON CPL. D=76MM

77130007100 I

Unavailable

40

PISTON CPL. D=76MM

77130007100 II

Unavailable

41

OIL SCRAPER RING

77130032000

Unavailable

42

COMPRESSION RING

77030030200

Unavailable

43

radial shaft seal 14x24x6 B

0760142460

Unavailable

99

CRANKSHAFT REP. KIT 250SX-F/

00050002302

Unavailable
