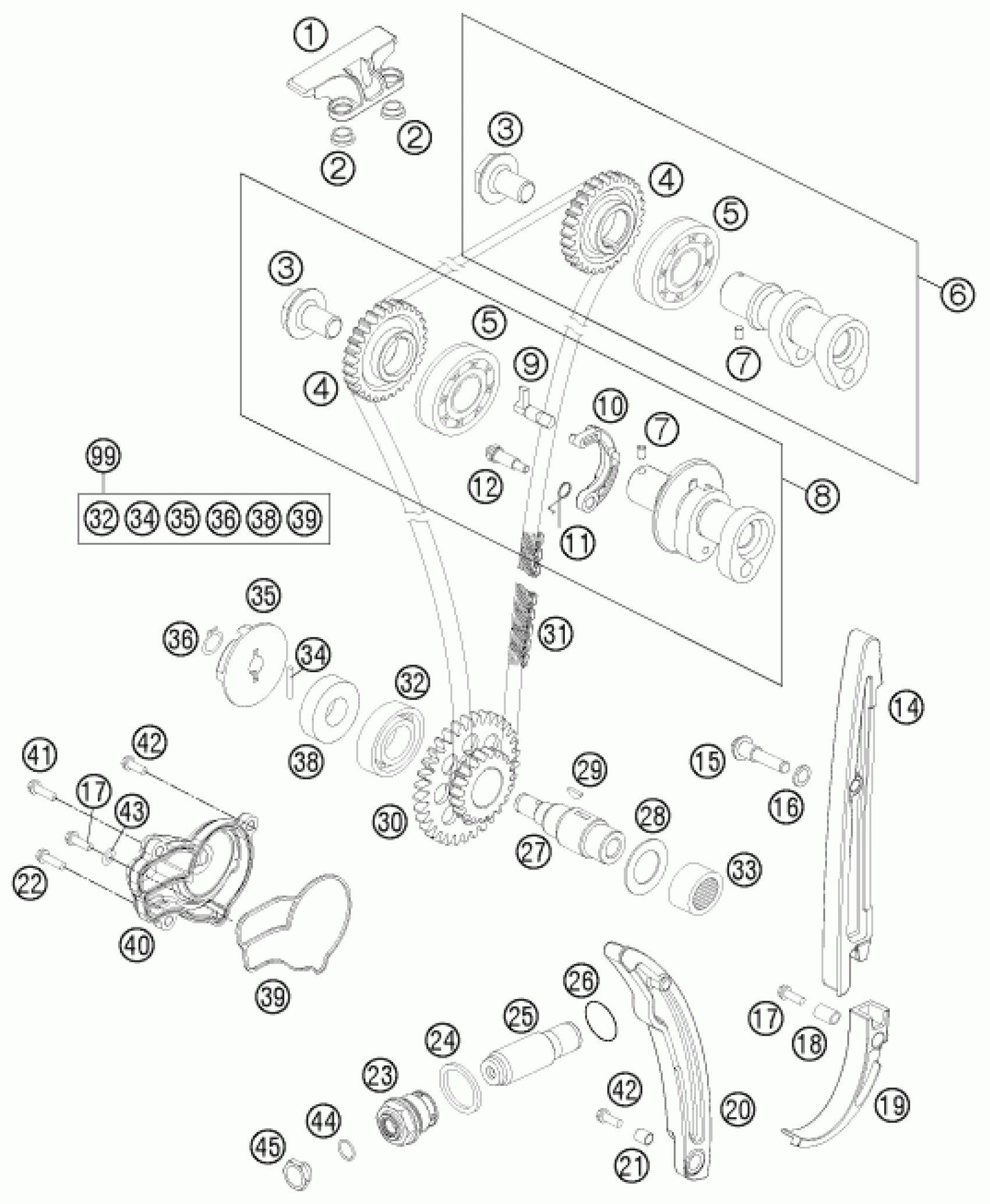

KTM 250 XC-F 2011 TIMING DRIVE Diagram

#

Description
Price

1

TIMING CHAIN GUIDE TOP 05

77036004000

$12.61

2

SPACER BUSHING GUIDE RAIL ´05

77036004050

$5.23

3

CAMSHAFT GEAR SCREW 08

77036012100

$13.36

4

CAMSHAFT GEAR

77036011300

$63.38

5

BALL BEARING 6004 NR C3 ´05

0625060043

$13.92

6

CAMSHAFT INTAKE CPL.

77136009044

$271.88

7

NEEDLE ROOLER DIN5402 NRB 4X6

0402040600

$5.23

8

CAMSHAFT EXHAUST CPL.

77136010044

$287.40

9

AUTO DECOMPRESSION SHAFT

77036015100

$48.80

10

AUTO DECO WEIGHT

77036016100

$54.50

11

SPRING FOR AUTO DECOMPR. 05

77036017000

$5.23

12

BEARING PIN AUTODECO

77036019100

$12.10

14

TIMING CHAIN GUIDE 05

77036001000

$14.11

15

BUSHING SCREW 06

77036001160

$3.08

16

SEAL RING CU DIN7603- 8X12X1

0603082121

$3.08

17

HH collar screw M6x25 TX30

0025060256

$3.08

18

SPACER BUSHING 6,1X8,2X13,1

59036001050

$4.11

19

SECURING PROTECTION ´05

77036005000

$6.82

20

TIMING CHAIN TENSIONER ´05

77036002000

$6.72

21

SPACER BUSHING 6.1X8.2X9.1 05

77036001050

$4.11

22

HH collar screw M6x40 TX30

0025060406

$3.08

23

CHAIN ADJUSTER HOLDING BOLT

78036008100

$21.68

24

CU SEAL-RING DIN7603 A24X29X2

0603242920

$3.08

25

CHAIN ADJUSTER HYD. 05

77036003000

$73.86

26

o-ring 18.00x2.00 NBR70

0770180020

$2.05

27

TIMING VALVE JACKSHAFT 08

77036072100

$38.51

28

STOP DISK 18,2X30X1 05

77036073000

$3.08

29

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

30

TIMING VALVE TWIN WHEEL

77036076200

$121.07

31

TIMING CHAIN 108 ROLLS

77036013100

$98.54

32

BALL BEARING 6203 JR2 C3

0625062035

$14.48

33

NEEDLE BEAR.HK1812 18/24/12 05

0618182412

$8.13

34

Needle roll.DIN5402 NRB 3X17.8

0402031780

$1.49

35

WATER PUMP ROTOR 05

77035055000

$4.11

36

CIRCLIP DIN0471-10X1

0471100010

$2.05

38

SHAFT SEAL RING 12X30X7 PTFE

0760123073

$12.52

39

MOLDED RING WATER PUMP 05

77035053000

$7.38

40

WATER PUMP COVER 05

77035052000

$40.01

41

HH collar screw M6x35 TX30

0025060356

$3.08

42

HH collar screw M6x20 TX30

0025060206

$3.08

43

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

44

o-ring 10.00x1.00 NBR70

0770010010

$2.05

45

HOLDING BOLT

77336008010

$8.31

99

WATER PUMP REP. KIT 06-13

77035055010

Unavailable
