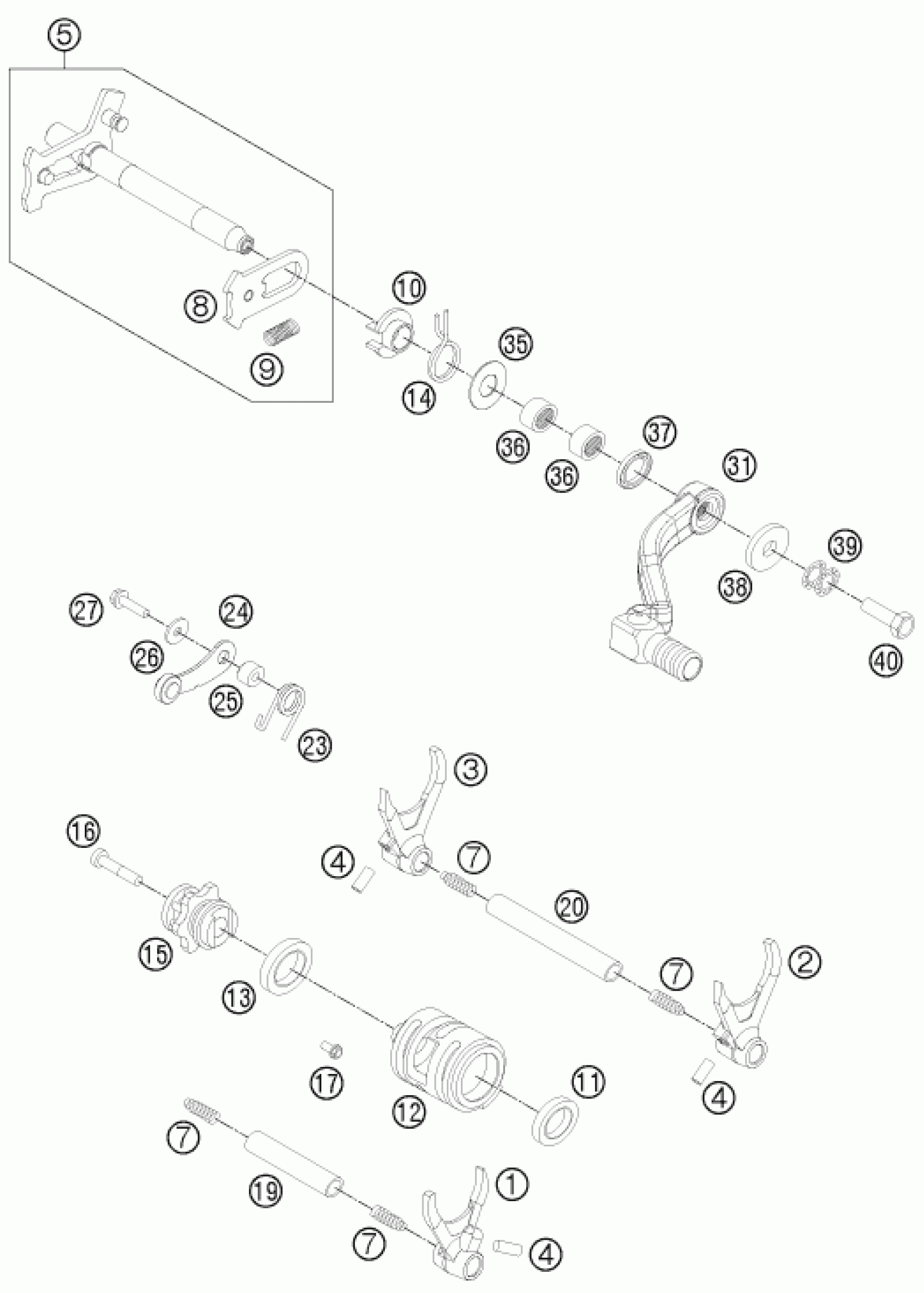

KTM 250 XC-F 2011 SHIFTING MECHANISM Diagram

SHIFTING FORK 5TH/6TH GEAR 05

77034001000

$74.04

SHIFTING FORK 2ND/3RD GEAR 05

77034002000

$48.52

SHIFTING FORK 1ST/4TH GEAR 05

77034003000

$74.98

NEEDLE ROLLER DIN5402 6X14,8

0402061480

$4.11

SHIFTING SHAFT CPL. 05

77034005044

$68.40

PRESSURE SPRING 0,9MM

58038023200

$4.11

SLIDING PLATE CPL.

54634008044

$10.46

TENSIONING SPRING 0,8MM

56534013100

$1.49

SPRING GUIDE

54634020000

$6.44

BALL BEARING 6903 C4

0625069034

$20.37

SHIFT ROLLER 05

77034012000

$87.32

BALL BEARING 61805 C3

0625618050

$43.94

RETURN SPRING 2,2MM '95

54634014100

$6.63

SHIFT LOCATING DRUM CPL. 05

77034015144

$31.89

AH SCREW DIN6912 M6X30 8.8

0012060303

$1.49

HH collar screw M6x8 TX30

0025060086

$2.05

SHIFT. RAIL MAIN SHAFT 250/300

54834019000

$12.80

SHIFTING MAIN L=93MM 05

77034019000

$14.02

LOCKING LEVER SPRING

77034023000

$2.05

LOCKING LEVER CPL. 08

77034024044

$16.07

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

WASHER DIN7349-5X15X2

0349000050

$1.49

HH collar screw M5x20 TX30

0025050206

$2.05

SHIFT LEVER CPL.RACING 2000

59034031000

$87.69

STOP DISK 14X30X1

54634050000

$2.05

needle sleeve HK 1412 14x20x12

54632095000

$7.00

radial shaft seal 14x24x6 B

0760142460

$9.25

STEEL WASHER 6,4X17X3

50232050001

$5.23

Pair of washers M6 NORDLOCK

50233041000

$4.11

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05
