REAR WHEEL

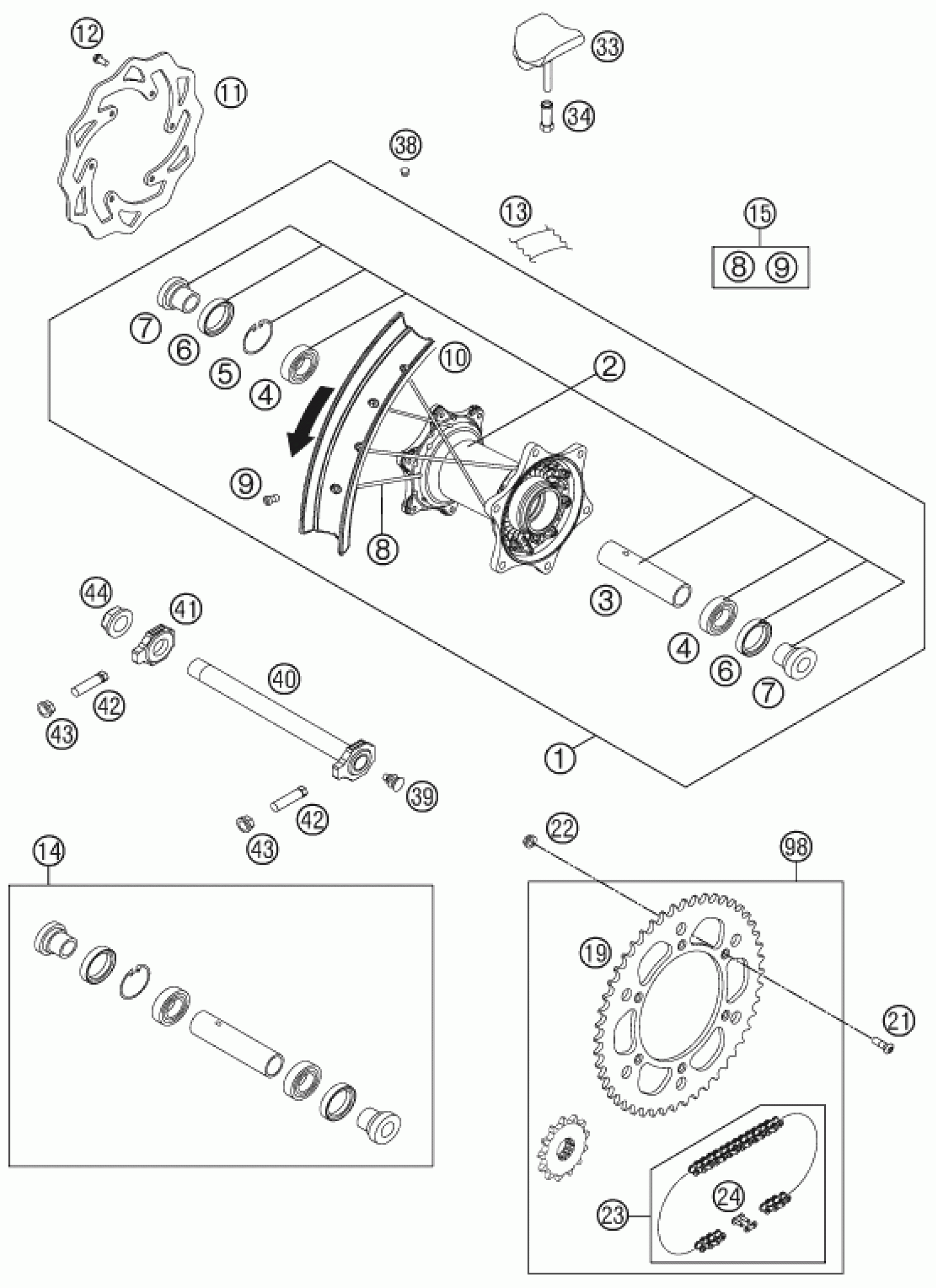

KTM 250 XC-F 2011 REAR WHEEL Diagram
#
1
REAR WHEEL 2,15X18''EXCEL 11
51510001044
$854.77
2
REAR WHEEL HUB CPL.
78010010144
$313.68
3
BUSH. SPACER TUBE 121,5MM 01
59010011000
$22.34
4
Grooved ball bear.6005 DDU2CG2
0625060058
$18.32
5
CIRCLIP DIN0472-47X1,75
0472047175
$3.08
6
Radial shaft seal 32X47X7 BSL
0760324771
$13.36
7
BUSHING FOR HUB 08
78010016000
$32.90
8
SPOKE M4,5X193- 18'' 11
77110071193
$5.23
9
Spoke nipple M4.5 AL
77109072000
$3.08
10
REAR RIM 2,15''X18''EX. AL7
51510070000
$218.69
11
BRAKE DISC REAR 220
77310060000
$127.62
12
SPECIAL SCREW M6X13 WS=8 10.9
59009062013
$2.05
13
Tube protector 18" and 19"
50310073200
$13.27
14
REAR WHEEL REP. KIT
78010015000
$107.98
15
SPOKE KIT REAR 18'' 12
00050000957
Unavailable
19
REAR SPROCKET 38-T
58310051038
Unavailable
19
REAR SPROCKET 40-T
58310151040
Unavailable
19
REAR SPROCKET 42-T
58310051042
Unavailable
19
REAR SPROCKET 45-T
58310151045
Unavailable
19
REAR SPROCKET 48-T
58310151048
Unavailable
19
REAR SPROCKET 49-T
58310151049
Unavailable
19
REAR SPROCKET 50-T
58310151050
Unavailable
19
REAR SPROCKET 51-T
58310151051
Unavailable
19
REAR SPROCKET 52-T
58310151052
Unavailable
21
COUNTER-SUNK SCREW ISA45 M8X26
0019080266S
$3.08
22
Hex. nut DIN EN 1661 M8 WS13
06923080003
$2.05
23
CHAIN DID 118 LINKS
78010167118
$125.66
24
CONNECTING LINK F. 78010167118
78010166000
$13.27
33
RIM LOCK VM3 (2.15'')
54010100100
$20.56
34
NUT FOR WHEEL HOLDER '96
50310090050
$5.23
38
PLUG FOR RIM
55003135000
Unavailable
39
Plug SFL16
50210086000
Unavailable
40
Thru axle rear wheel cmpl. 07
77310085044
$78.91
41
Chain tension adjuster, right
50310084000
$20.66
42
screw M10x1.25x50 WS10
50304040100
$5.23
43
HH COLLAR NUT M10X1,25 WS=13
58414030000
$2.05
44
Hexagon nut M20x1.5
50310099000
$11.30
98
DRIVETRAIN KIT 250SX/-F 13/48T
00050002004
Unavailable
