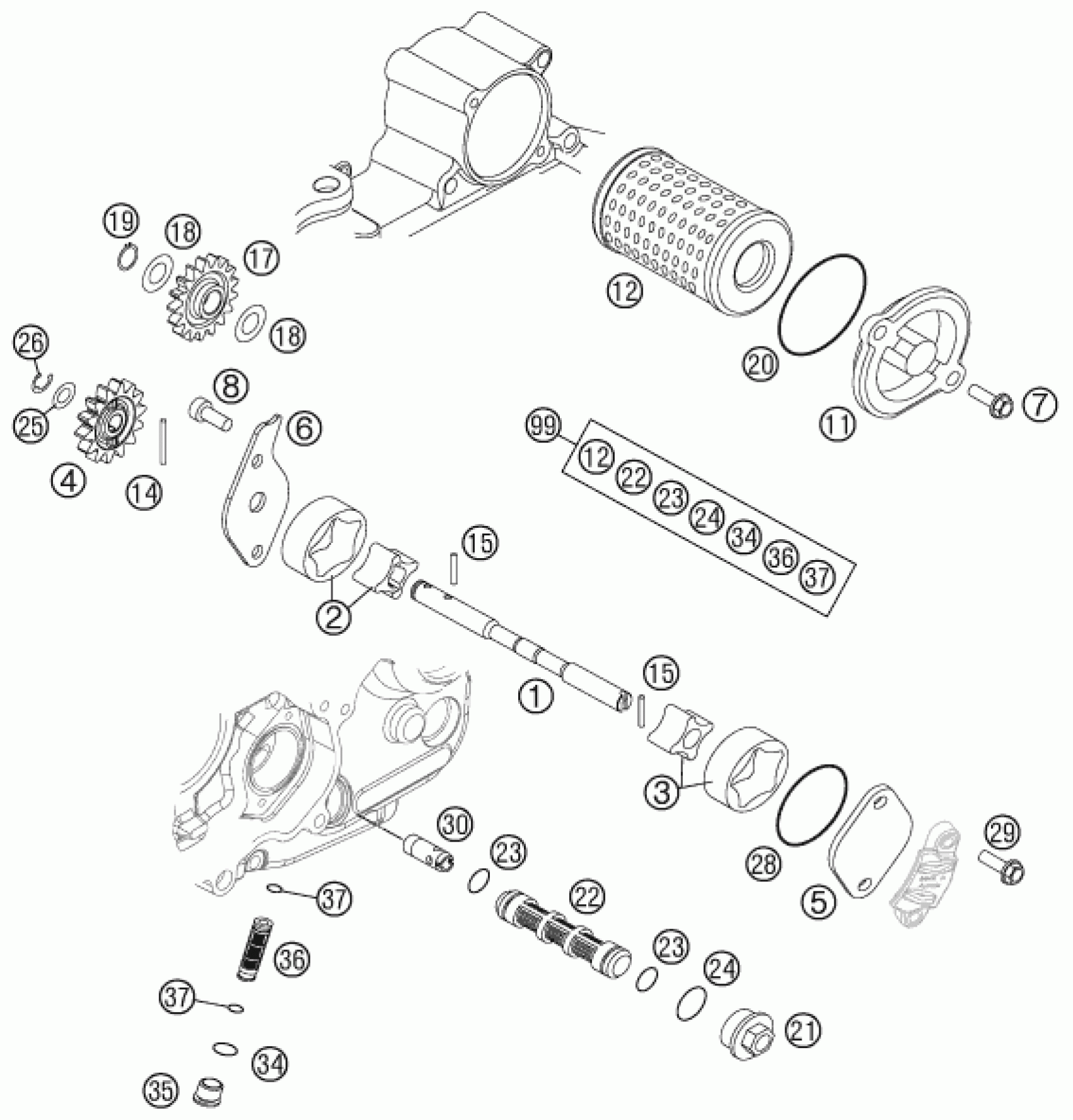

KTM 250 XC-F 2011 LUBRICATING SYSTEM Diagram

#

Description
Price

1

OIL PUMP SHAFT EXC-F

77038102000

$19.72

2

OILPUMP ROTOR CPL. 10MM G-73R

59038011010

$32.53

3

OILPUMP ROTOR 15MM G-164

77038011000

$43.75

4

OIL PUMP GEAR 14T 08

77038001100

$7.75

5

OIL PUMP COVER L/S 05

77038004000

$17.20

6

OIL PUMP COVER R/S 05

77038003100

$12.05

7

HH collar screw M5x16 TX30

0025050166

$2.05

8

CYLIND. SCR. DIN6912 M5X12 8.8

0984050123S

$2.05

11

OIL FILTER COVER RACING

59038041000

$14.02

12

OIL FILTER WITH GASKET 06

77038005044

$8.69

14

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

$1.49

15

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

$1.49

17

OILPUMP IDLER GEAR 08

77038006100

$9.90

18

SHIM WASHER DIN0988-12X18X0,50

0988121805

$2.05

19

retaining ring DIN 471 12x1

0471120010

$1.49

20

O-RING 40,00X2,50 NBR 70

0770400025

$2.05

21

PLUG M20X1,5 WS=13

59038017000

$7.85

22

OIL SCREEN

59038016100

$7.00

23

O-RING 12,5X1,5 NBR

0770125015

$2.05

24

O-RING 17,17X1,78 GLO

0770020170

$2.05

25

STOP DISK 8,1 X 15 X 0,5

58038007755

$2.05

26

TAB WASHER DIN6799-RS 6,0

0799060000

$2.05

28

O-RING 32,00X2,00

0770320020

$2.05

29

HH collar screw M5x12 TX30

0025050126

$3.08

30

OIL INTAKEPIPE

77038022000

$6.91

34

O-RING 12,00X2,00 NBR 70

0770120020

$2.05

35

SCREW PLUG

77038017000

$16.82

36

OIL SCREEN 11,8x44,5MM

59038015100

$12.61

37

O-RING 9X1,5 NBR

0770090015

$2.05

99

OILFILTER SERVICE KIT

00050000081

Unavailable
