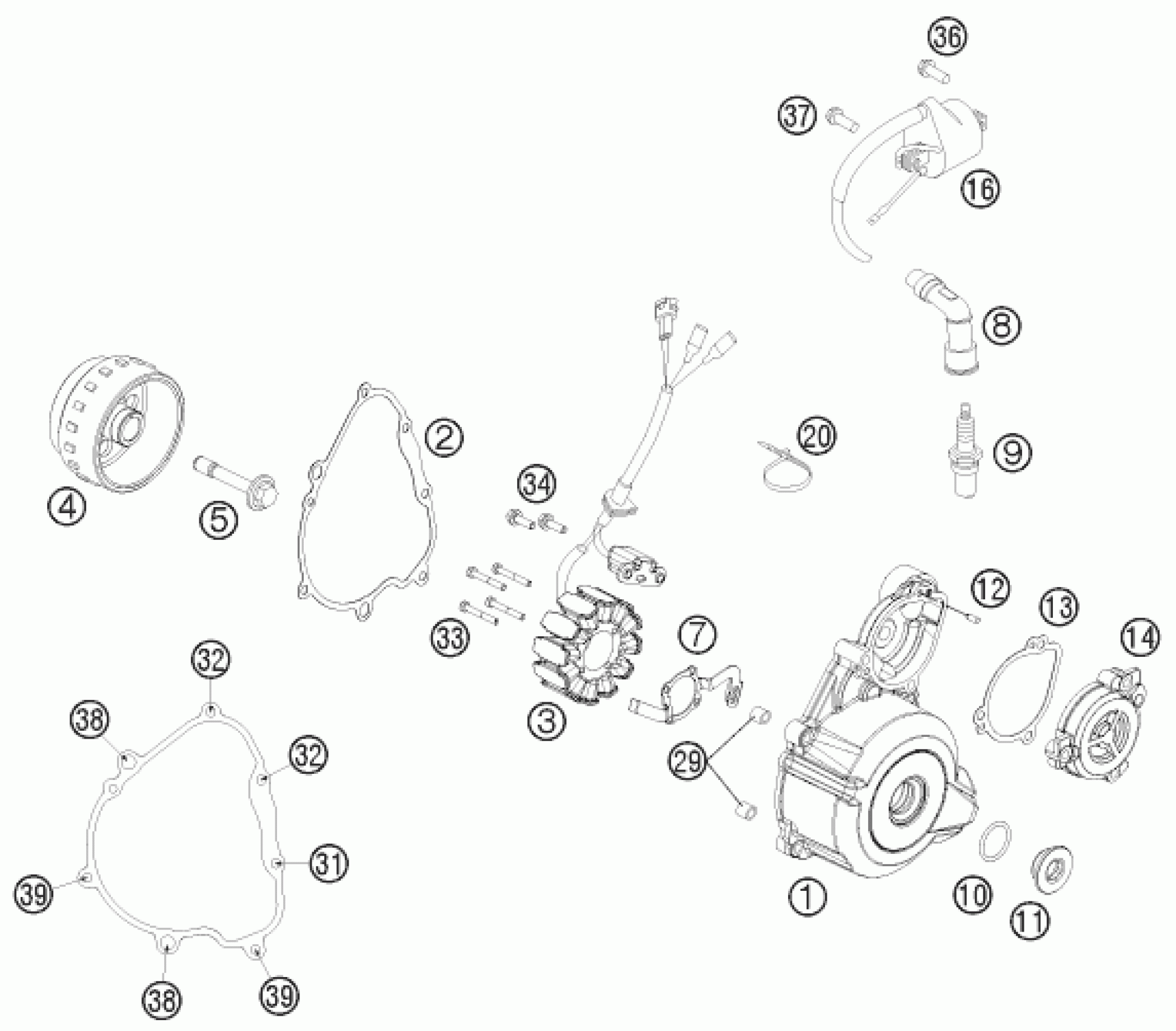

KTM 250 XC-F 2011 IGNITION SYSTEM Diagram

#

Description
Price

2

IGNITION COVER GASKET

77130040000

$22.43

3

STATOR

77139004000

$277.87

4

ROTOR EFI

77239005100

$475.42

5

FLYWHEEL SCREW

77339010100

$5.60

7

RETAINING PLATE

77130002050

$23.36

8

SPARK PLUG CONNECTOR

77139090000

$37.56

9

SPARK PLUG NGK CR9EKB ´05

77039093000

$13.46

10

o-ring 24.00x2.50 Viton

07700240251

$3.08

11

FACTORY IGNITION COVER PLUG

7723000206030

$36.64

16

Ignition coil

58439006000

$75.45

20

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

29

DOWEL 9,8 X 7 X 10

49030090000

$2.05

31

HH collar screw M6x30 TX30

0025060306

$3.08

33

AH SCREW DIN6912 M4x30

0012040303

$2.05

34

HH collar screw M5x12 TX30

0025050126

$3.08

36

HH collar screw M6x16 TX30

0025060166

$3.08

37

HH collar screw M6x20 TX30

0025060206

$3.08

38

HH collar screw M6x35 TX30

0025060356

$3.08

39

HH COLLAR SCREW M6X90 TX30

0025060906

$3.08

12

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

13

GASKET TORQUE LIMITER

77240043000

$4.11

14

COVER TORQUE LIMITER

7723000201015

$35.90

32

HH collar screw M6x50 TX30

0025060506

$3.08

1

IGNITION COVER SX E-START

7713000200015

$132.01
