FRONT FORK, TRIPLE CLAMP

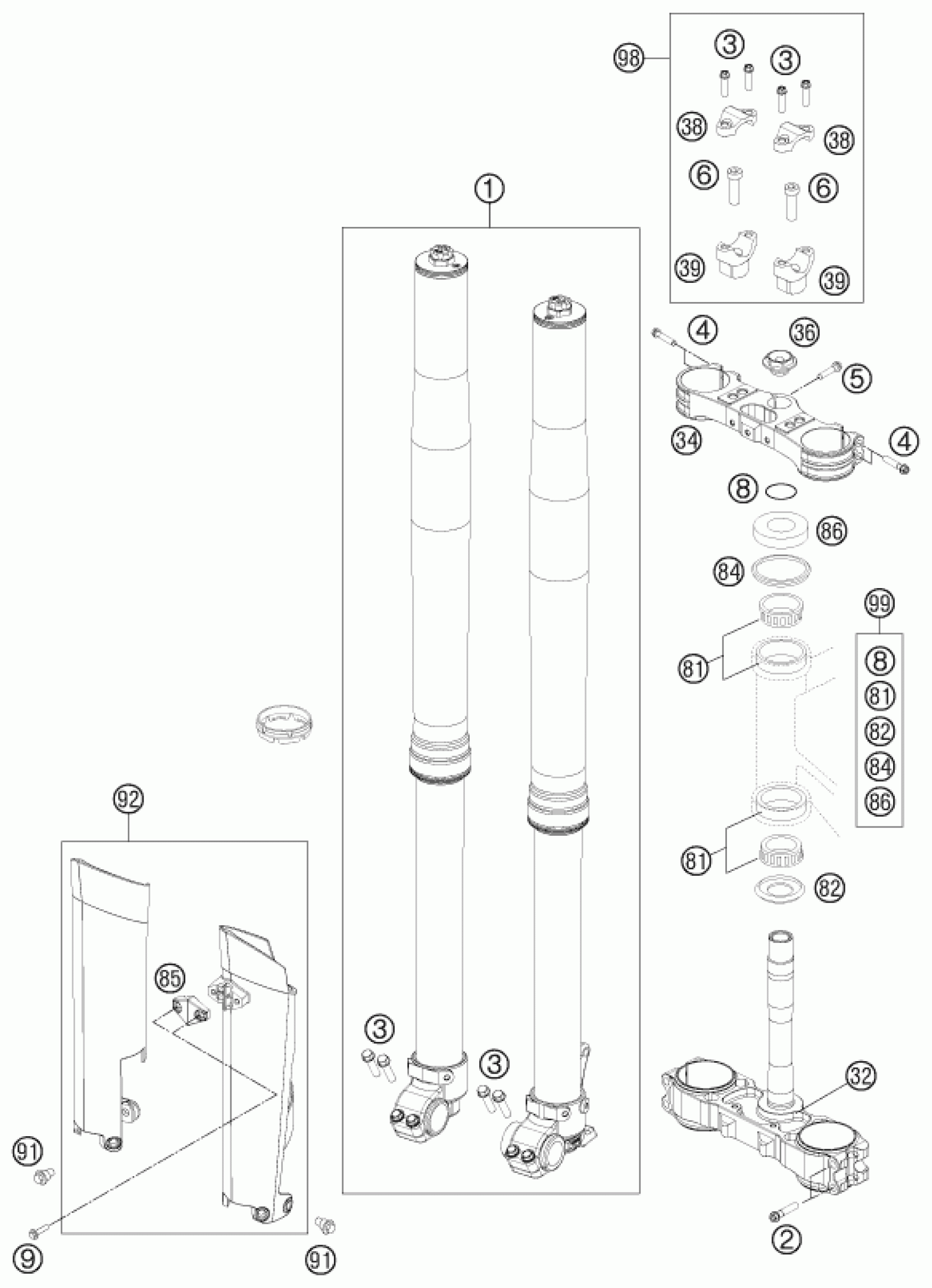

KTM 250 XC-F 2011 FRONT FORK, TRIPLE CLAMP Diagram
#
Description
Price
1
FORK WP 250/350 XC-F 11
14187K2201
Unavailable
2
HH collar screw M8x50 TX40
0025080506
$3.08
3
HH collar screw M8x25
0025080256
$2.05
4
HH COLLAR SCREW M8X40 TX40
0025080406
$4.11
5
HH COLLAR SCREW M8X25 WS=10
0015080256S
$3.08
6
AH SCREW DIN6912-M10X35 10.9
0912100356
$4.11
8
O-RING 25X3,55 NBR70 05
0770025035
$1.49
9
EJOT PT SCREW K60X20 ALU WS=6
0017060204
$3.08
36
STEER.HEAD SCREW M20X1,5 WS=27
54801036000
$11.21
38
HANDLEBAR CLAMP 28MM
77201038000
$25.05
32
BOTT.FORK PLATE VMT. X=22MM BL
7720103202230
$354.54
34
TOP TRIPLE CLAMP X=22MM BLACK
7720103402230
$223.74
39
Handlebar mount D28mm-H32mm
59401039032
Unavailable
39
Handlebar mount D28mm-H37mm
59401039037
Unavailable
39
Handlebar mount D28mm-H42mm
59401039042
Unavailable
81
TAPERED ROLLER BEARING CPL. 06
54201081100
$51.04
82
O-RING SUPPORT W. SEALING LIP
54601084100
$19.35
84
STEARING HEAD GASKET TOP
54601184000
$7.10
85
CLAMP F. SPEED. CABLE D=6MM 08
7800108500028
$5.23
86
STEERING HEAD COVER
54201086000
$8.50
91
SPECIAL SCREW M6X12,5 WS=8
59001092050
$2.05
92
FORK PROTECT L/S+R/S WHITE 09
7800109410028
$30.94
98
HANDLEBAR SUPPORT KIT D28/H37
00050000921
Unavailable
99
STEARING HEAD REP. KIT 06-15
00050000930
Unavailable
