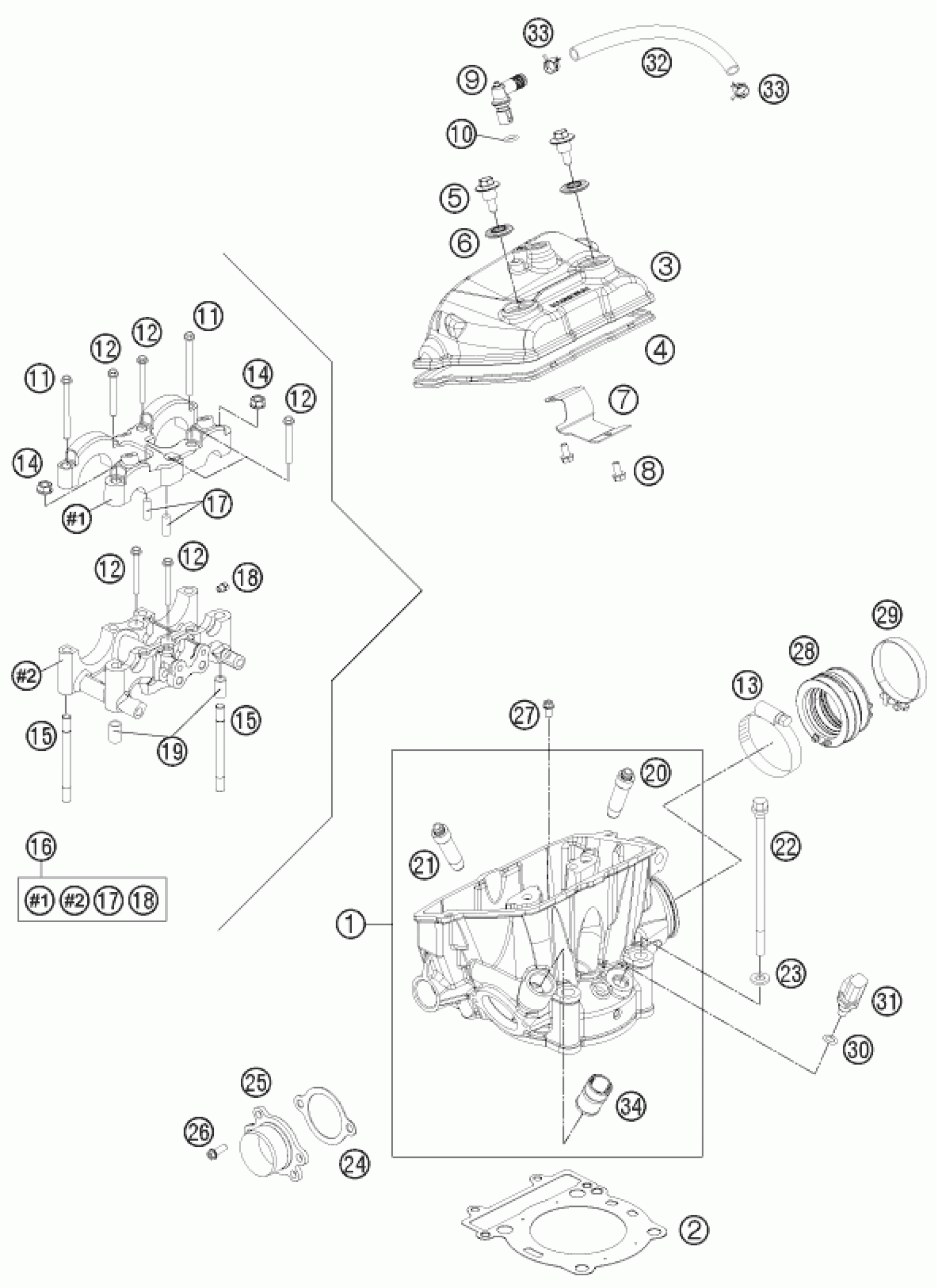

KTM 250 XC-F 2011 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD CPL.

77136020044

$701.62

2

CYLINDER HEAD GASKET 05

77030036000

$42.63

3

VALVE COVER 06

77036052100

$35.55

4

VALVE COVER GASKET 05

77036053000

$10.93

5

VALVE COVER SCR. M6X12 WS10 07

77036055100

$3.08

6

RUBBER GASKET FOR SCREW 05

77036054050

$4.11

7

COVER PLATE BREATHER 05

77036052050

$18.22

8

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

9

ANGLE CONNECTOR LC8 03

60038082000

$2.05

10

O-RING 8X2 SILICONE

0770080020

$1.49

11

SPECIAL SCREW M7X73 WS 10

77036081000

$21.59

12

SPECIAL SCREW M7X40 WS10

77036080000

$3.08

13

Hose clamp GEMI 63mm 05

61036047000

$7.56

14

COLLAR NUT 7X1 05

77036024000

$5.23

15

STUD 7X1 05

77036023000

$5.79

16

BUSH SUPPORT A.BRIDGE CPL '05

77036020150

$322.55

17

needle roller DIN 5402 5x9.8

0402050980

$1.49

18

oil jet 50 M5

60030063050

$9.44

19

DOWEL(BUSH BRIDGE)7/9/8 05

77036090000

$5.23

20

VALVE GUIDE INTAKE

77036025201

$70.02

21

VALVE GUIDE OUTLET

77036026101

$60.76

22

CYLINDER HEAD SCREW 05

77036079000

$10.84

23

WASHER 10,8X18,8X1,5

59036090000

$1.49

24

GASKET EXHAUST FLANGE 06

77036041000

$7.00

25

EXHAUST FLANGE CPL. 07

77036039100

$55.53

26

HH collar screw M6x20 TX30

0025060206

$3.08

27

HH collar screw M6x25 TX30

0025060256

$3.08

28

CONNECTION RUBBER EFI

77236044000

$36.27

29

Hose clip GEMI 58

77236048000

$12.05

30

o-ring 10.00x2.00 silicone

0770100020

$2.05

31

TEMPERAT.-SENSOR WATER LC8 02

60011252000

$36.64

32

ENGINE BREATHER TUBE 00

59031050100

$14.58

33

CLAMP STD DN16

00049160121

$2.05

34

SCREW IN NOZZLE M20X1,5

58030010200

$8.87
