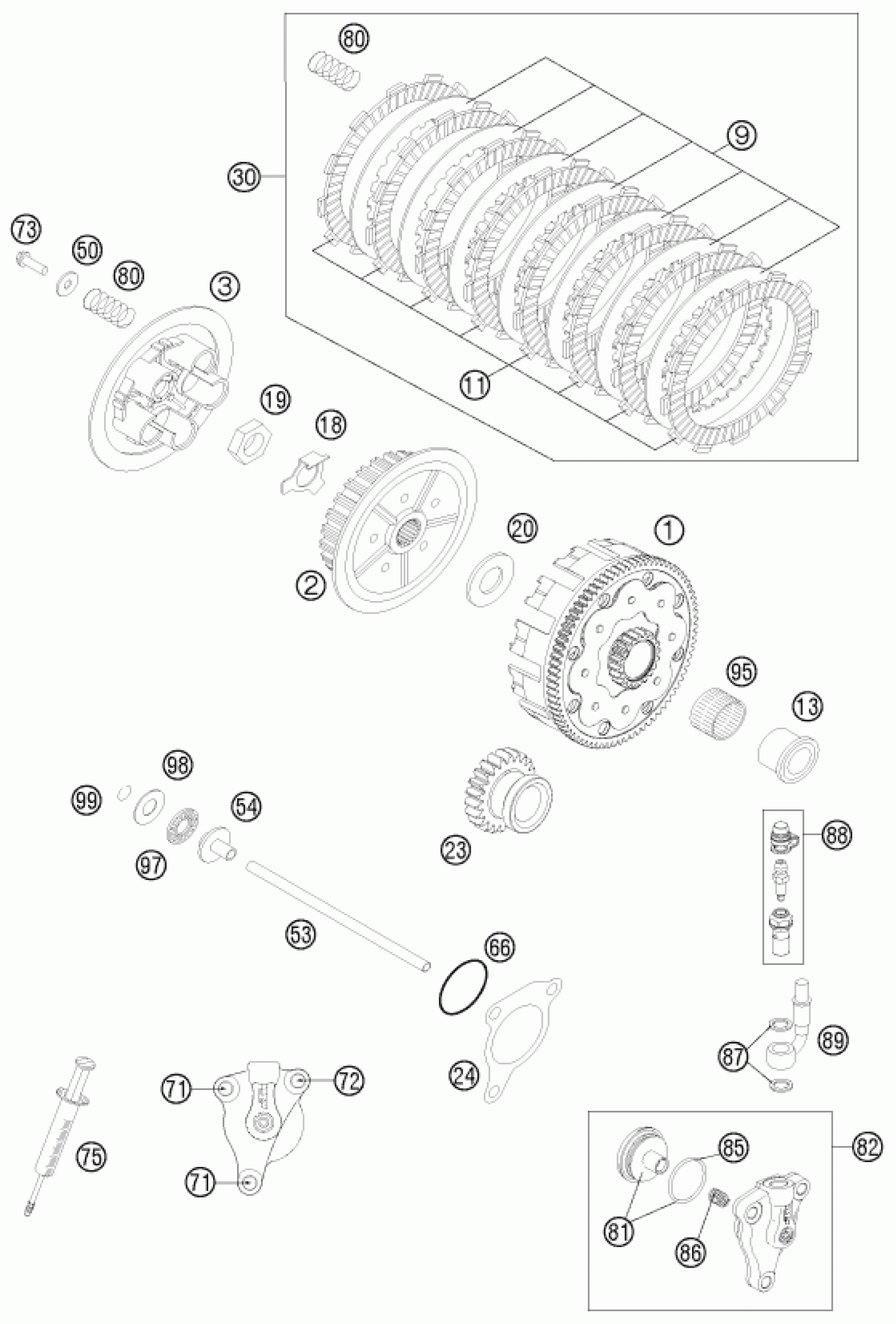

KTM 250 XC-F 2011 CLUTCH Diagram

SHEET METAL LOCK 1,5MM '98

50332018000

$6.26

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

PRIMARY GEAR 22T. 05

77032000122

$107.42

GASKET FOR SLAVE CYLINDER

59032065000

$5.60

CLUTCH KIT 250 SXF/EXCF 5-13

77032011010

$262.91

WASHER 6,2X18X2

50232050000

$5.23

PUSH ROD 05

77032054000

$10.84

PRESSURE PIECE 125-380 '98

50332054051

$26.45

O-ring 30x1.5 NBR 70

0770300015

$2.05

HH collar screw M6x20 TX30

0025060206

$3.08

HH collar screw M6x35 TX30

0025060356

$3.08

HH collar screw M6x25 TX30

0025060256

$3.08

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

CLUTCH SPRING

77032005000

$3.08

PISTON CPL.

54832066000

$68.43

OUTPUT CYLINDER CPL. 06

54832061044

$137.44

O-RING

54832067000

$3.08

PRESSURE SPRING

54832069000

$12.05

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

BLEEDER SCREW CPL. 05

62513020000

$27.48

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

AXIAL NEEDLE BEARING AXK 1226

54637097200

$10.18

AXIAL WASHER AS1226 12X26X1

54637098200

$5.23

CIRCLIP DIN7993-RW12

0993012000

$3.08

CLUTCH PIPE 06

54832063000

$100.32

STOP DISK 20X39,6X3 '98

50332020000

$16.35

OUTER CLUTCH CPL.

77032001100

$563.42

INNER CLUTCH HUB

77032002100

$129.77

PRESSURE PLATE

77032003100

$105.09

INTERMEDI. DISC STEEL 05

77032010000

$11.77

LINING DISC 3,0MM 05

77032011000

$36.27

INNER RING 20X26X25,9 '98

50332013000

$30.19
