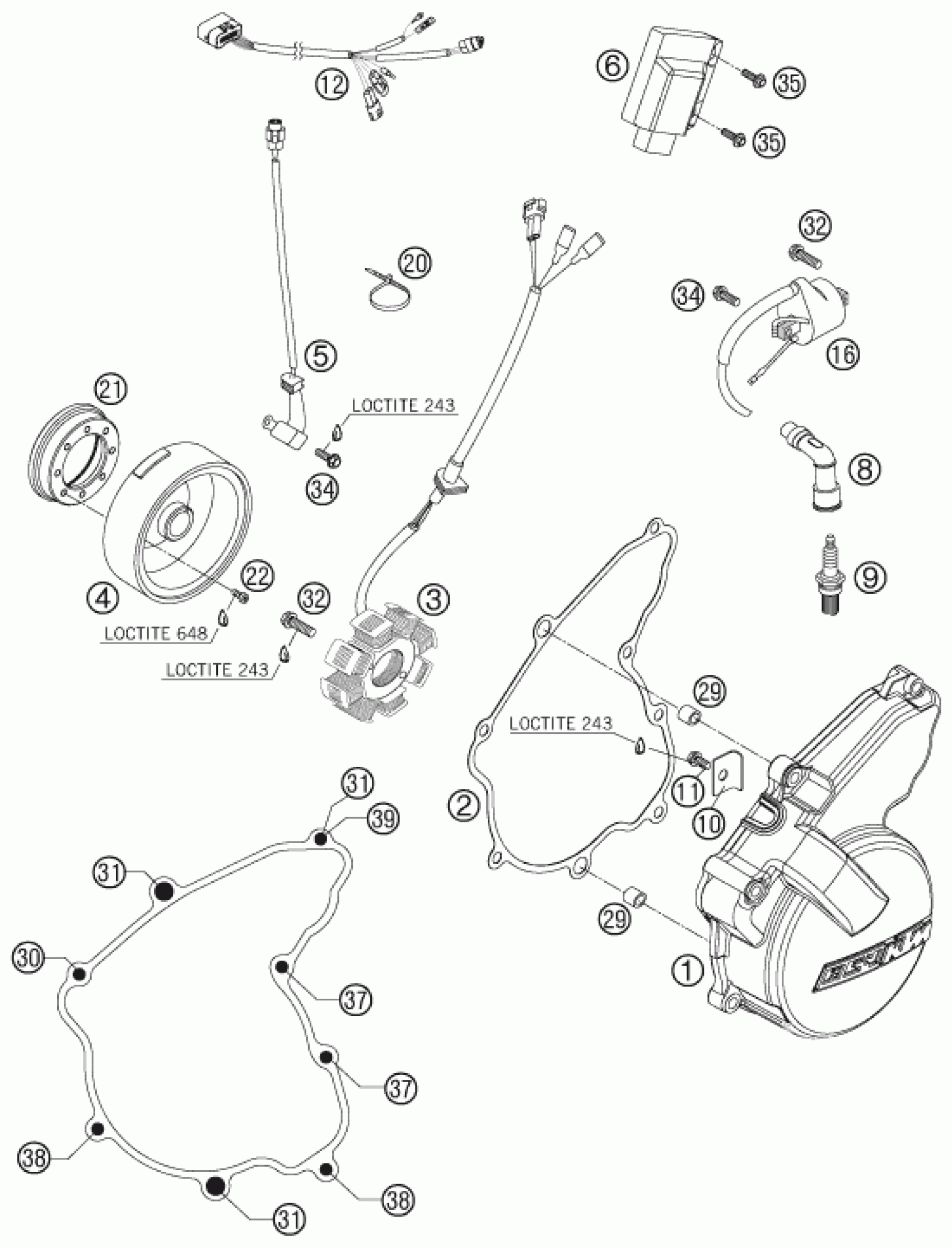

KTM 250 XC-F 2009 IGNITION SYSTEM Diagram

#

Description
Price

1

IGNITION COVER EXC 09

7703010230015

$104.15

2

IGNITION COVER GASKET EXC-F

77030140000

$12.61

3

STATOR 2007

77039104000

$229.91

4

FLYWHEEL

77039105100

$389.89

5

PULSER COIL 08

77039134000

$73.95

6

CDI UNIT 250 XC-F 09

77039131500

Unavailable

8

SPARK PLUG CONNECT. VD05EG03

59039090100

$37.56

9

SPARK PLUG NGK CR9EKB ´05

77039093000

$13.46

10

WIRE RETAINING BRACKET 06

77030002050

$3.10

11

HH collar screw M6x8 TX30

0025060086

$2.05

12

WIRING HARNESS FOR CDI EXC 04

59439032100

Unavailable

12

WIRING HARNESS F. CDI-BOX 08

78039032000

Unavailable

16

IGNITIONCOIL ''IG5128''

59039006000

$66.19

20

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

21

FREEWHEEL HUB

77040025000

$103.03

22

AH SCREW DIN6912-M5X8 10.9

00120500810

$2.05

29

DOWEL 9,8 X 7 X 10

49030090000

$2.05

30

HH collar screw M6x50 TX30

0025060506

$3.08

31

HH collar screw M6x30 TX30

0025060306

$3.08

32

HH collar screw M6x20 TX30

0025060206

$3.08

34

HH collar screw M5x16 TX30

0025050166

$2.05

35

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

37

HH collar screw M6x25 TX30

0025060256

$3.08

38

HH COLLAR SCREW M6X95 TX30

0025060956

$3.08

39

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05
