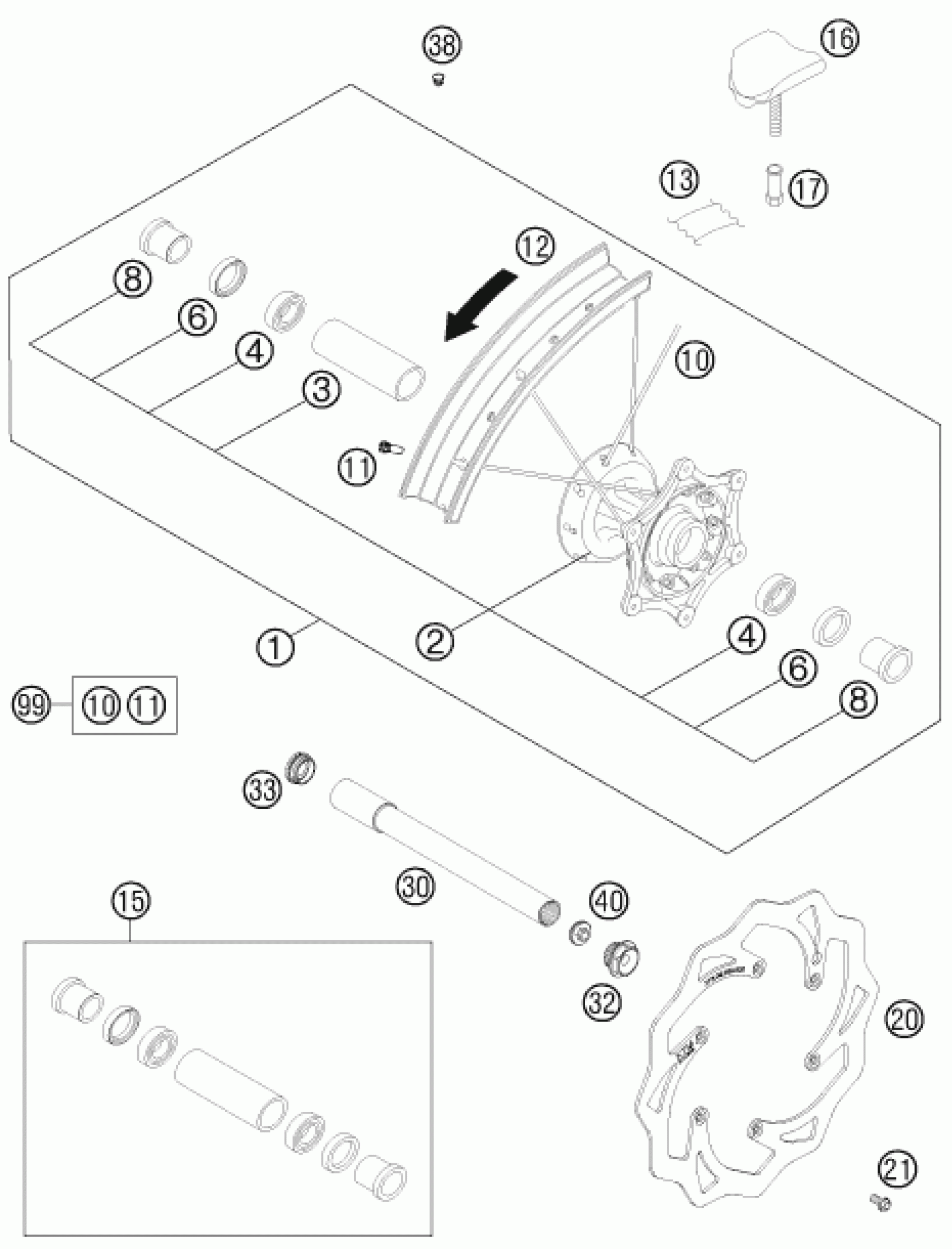

KTM 250 XC-F 2009 FRONT WHEEL Diagram

#

Description
Price

38

PLUG FOR RIM

55003135000

Unavailable

1

FRONT WHEEL.1,6X21''EXCEL 08

7800900104430

Unavailable

2

FRONT WHEEL HUB CPL. 08

78009010044

$305.64

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

$25.70

4

Grooved ball bearing 6906

0625069068

$34.68

6

Radial shaft seal 35X47X7 TC

0760354771

$8.69

8

SPACER BUSHING F. FR. WHEEL 08

78009012000

$30.10

10

SPOKE M4,5x226-21'' 08

78009174226

$4.11

11

SPOKE NIPPLE M4,5X0,75 8X21

50309072100

$2.05

12

FRONT RIM 1,6X21'' EXCEL AL7

5480907000030

$220.28

13

Tube protector 21"

50309073000

$10.09

15

FRONT WHEEL REP. KIT

78009015000

Unavailable

16

RIM LOCK VM1 (1,60'')

51009100100

$17.57

17

NUT FOR WHEEL HOLDER '96

50310090050

$5.23

20

BRAKE DISC FRONT 260 MM 08

77309060300

$149.87

21

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

30

WHEEL SPIN.FR. D=26 M24x1,5 07

77309081000

$82.83

32

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

$9.81

33

PLUG BUSHING WS=27 03

54809081050

$9.81

40

AUXILIARY SCREW FRONT 06

54809081070

$5.70

99

SPOKE KIT FRONT ''21''

00050000905

Unavailable
