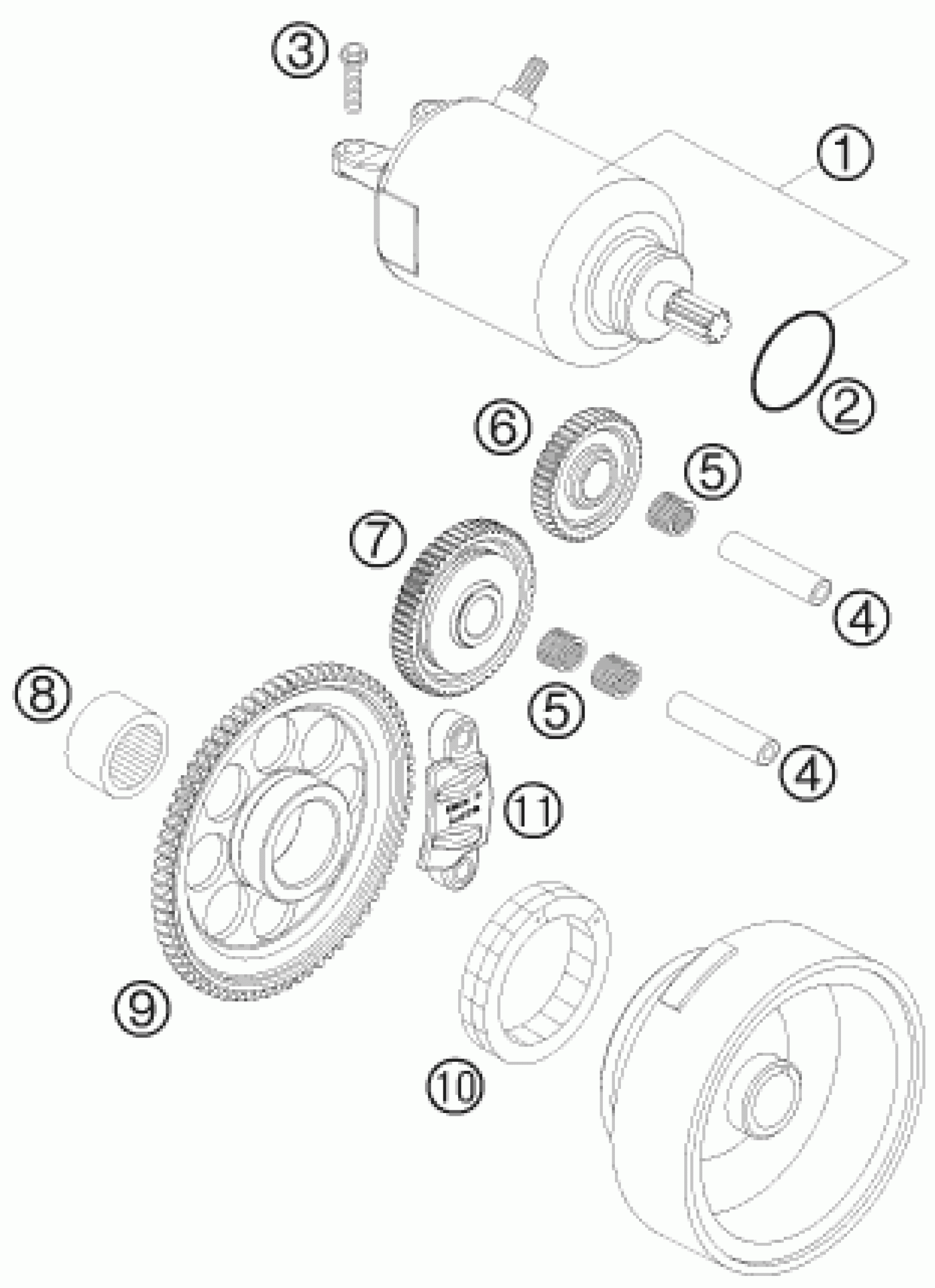

KTM 250 XC-F 2009 ELECTRIC STARTER Diagram

#

Description

Price

1

E-STARTER ENGINE 2007

77040001000

$284.42

2

O-RING 25,00X3,00 NBR 70

0770250030

$3.08

3

HH collar screw M6x20 TX30

0025060206

$3.08

4

BEARING BOLT

59040029000

$10.84

5

NEEDLE BEARING K 10X13X10 02

0405101310

$6.63

6

INTERMEDIATE GEAR 36T 06

77040022000

$32.25

7

TORQUE LIMITER CPL. 06

77040016000

$123.00

8

NEEDLE BEARING HK 2216

58033097000

$14.02

9

FREE WHEEL GEAR

77040020000

$156.70

10

FREE WHEEL 03

80040026000

$83.95

11

HOLDER FREE WHEEL GEAR 06

77040027000

$5.79
