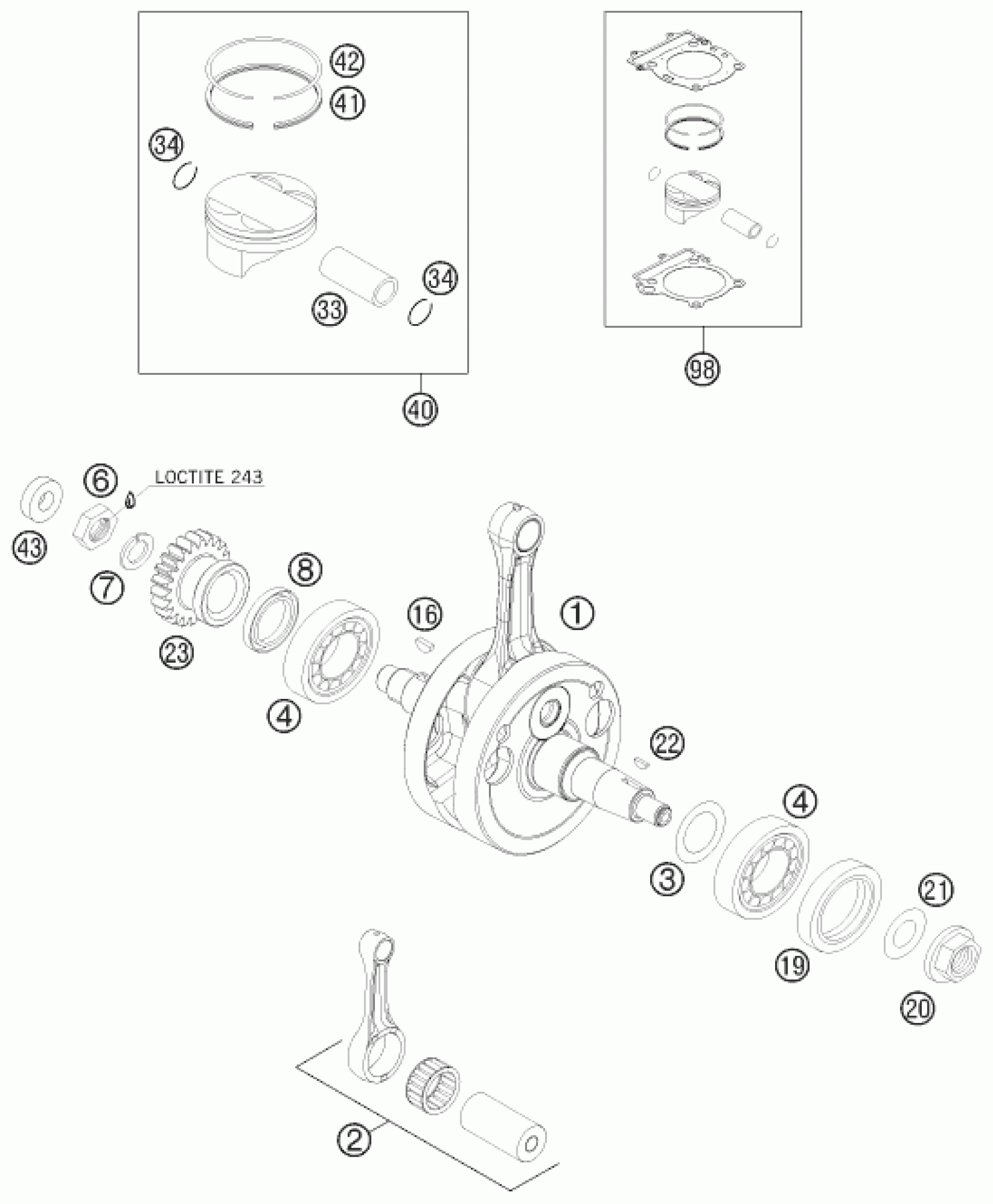

KTM 250 XC-F 2009 CRANKSHAFT, PISTON Diagram

#

Description
Price

23

PRIMARY GEAR 22T. 05

77032000122

Unavailable

41

OIL SCRAPER RING

77030032200

$52.73

33

PISTON PIN BOLT D=16mm 05

77030033000

$21.78

34

CIRCLIP 05

77030074000

$4.11

40

PISTON I CPL.

77030007500 I

$241.20

40

PISTON II CPL.

77030007500 II

$396.99

43

radial shaft seal 14x24x6 B

0760142460

$9.25

22

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

4

CYL.ROLLER BEAR.NJ206 ET2XCS46

50330082000

$83.21

20

COLLAR NUT M12X1 R/S

49030021000

$2.05

6

HEX.NUT L/SH M18X1,5

54630029000

$10.65

7

LOCK WASHER VSK 18

58132072000

$2.05

8

SH.SEAL RING 35X42X4 B10FNIB

0760354240

$5.23

3

THRUST WASHER 30,7X47X0,15

56030081100

Unavailable

3

THRUST WASHER 30,5X45X0,30

56030081200

Unavailable

1

CRANKSHAFT CPL. EXC-F 09

77030118200

$551.10

2

CON. ROD REP. SET 05

77030015144

$342.69

3

THRUST WASHER 30,5X45X0,10

56030081000

Unavailable

42

COMPRESSIONRING D=76

77030030100

$49.08

16

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05

21

SPRING WASHER DIN0137-B12

0137120000

$1.49

98

PISTON KIT GR.II EXCF/SXF 06-1

00050000013

Unavailable

98

PISTONKIT GR.I EXC-F/SX-F06-13

00050000033

Unavailable

19

SH. SEAL RING 30X42X4 B10F

0760304240

$4.11
