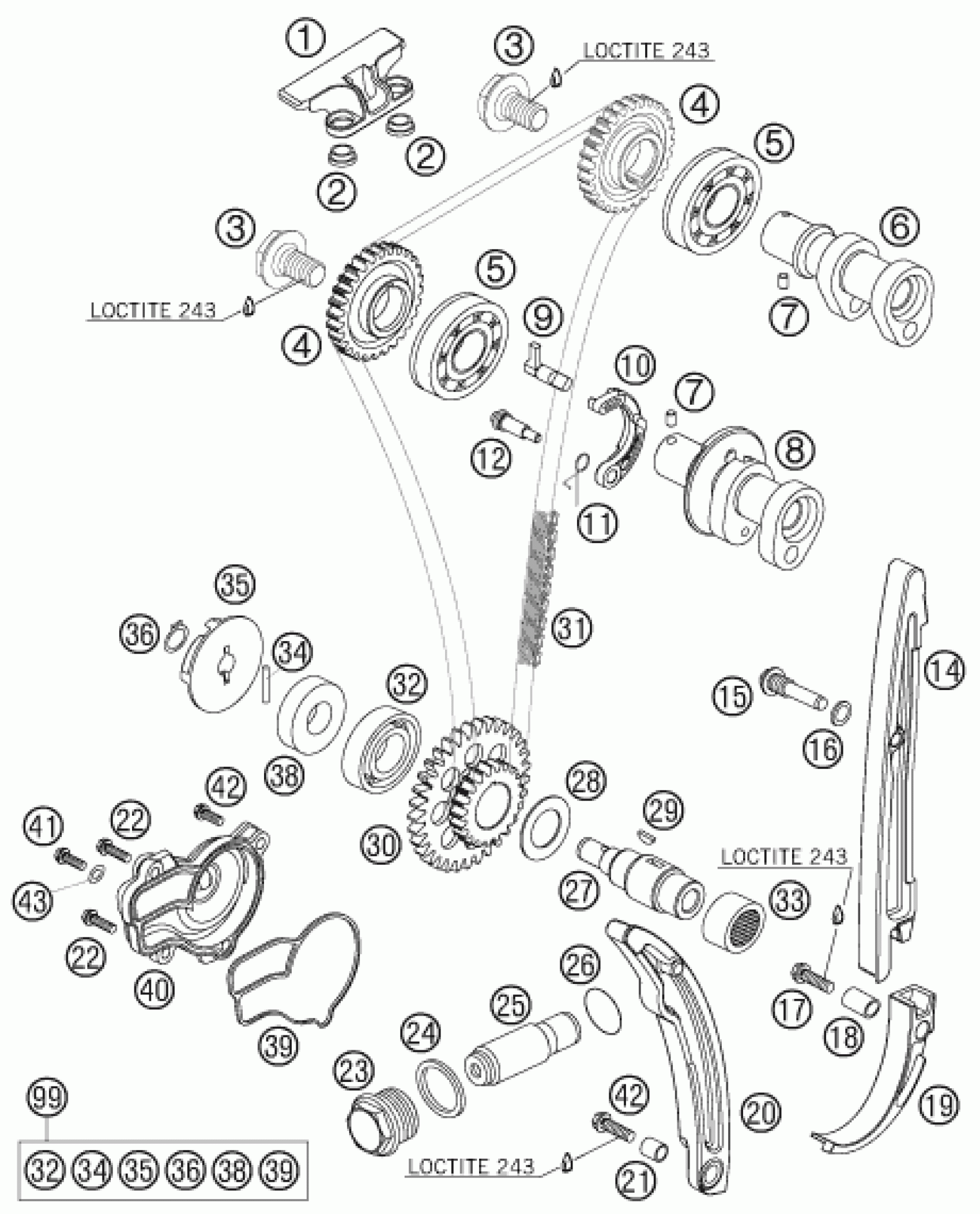

KTM 250 XC-F 2007 TIMING DRIVE Diagram

#

Description
Price

34

Needle roll.DIN5402 NRB 3X17.8

0402031780

$1.49

35

WATER PUMP ROTOR 05

77035055000

$4.11

36

CIRCLIP DIN0471-10X1

0471100010

$2.05

38

SHAFT SEAL RING 12X30X7 PTFE

0760123073

$12.52

39

MOLDED RING WATER PUMP 05

77035053000

$7.38

40

WATER PUMP COVER 05

77035052000

$40.01

41

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

42

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

43

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

1

TIMING CHAIN GUIDE TOP 05

77036004000

$12.61

2

SPACER BUSHING GUIDE RAIL ´05

77036004050

$5.23

3

CAMSHAFT GEAR SCREW 05

77036012000

$12.94

4

CAMSHAFT GEAR 05

77036011100

$53.15

5

BALL BEARING 6004 NR C3 ´05

0625060043

$13.92

6

CAMSHAFT INTAKE 2006

77036009100

$140.00

7

NEEDLE ROOLER DIN5402 NRB 4X6

0402040600

$5.23

8

CAMSHAFT EXHAUST

77036110100

$153.98

9

AUTO DECOMPRESSION 05

77036015000

$48.80

10

AUTO DECO WEIGHT 05

77036016000

$54.50

11

SPRING FOR AUTO DECOMPR. 05

77036017000

$5.23

12

BEARING PIN AUTODECO 06

77036019000

$18.64

14

TIMING CHAIN GUIDE 05

77036001000

$14.11

15

BUSHING SCREW 06

77036001060

$15.37

16

SEAL RING CU DIN7603- 8X12X1

0603082121

$3.08

17

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

18

SPACER BUSHING 6,1X8,2X13,1

59036001050

$4.11

19

SECURING PROTECTION ´05

77036005000

$6.82

20

TIMING CHAIN TENSIONER ´05

77036002000

$6.72

21

SPACER BUSHING 6.1X8.2X9.1 05

77036001050

$4.11

22

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

23

CHAIN ADJUSTER HOLDING BOLT

77036008000

$18.13

24

CU SEAL-RING DIN7603 A24X29X2

0603242920

$3.08

25

CHAIN ADJUSTER HYD. 05

77036003000

$73.86

26

o-ring 18.00x2.00 NBR70

0770180020

$2.05

27

TIMING VALVE JACKSHAFT 05

77036072000

$38.51

28

STOP DISK 18,2X30X1 05

77036073000

$3.08

29

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

30

TIMING VALVE TWIN WHEEL 05

77036076100

$109.81

31

TIMING CHAIN IWIS 108 ROLLS

77036013000

$100.32

32

BALL BEARING 6203 JR2 C3

0625062035

$14.48

33

NEEDLE BEAR.HK1812 18/24/12 05

0618182412

$8.13

99

WATER PUMP REP. KIT 06-13

77035055010

Unavailable
