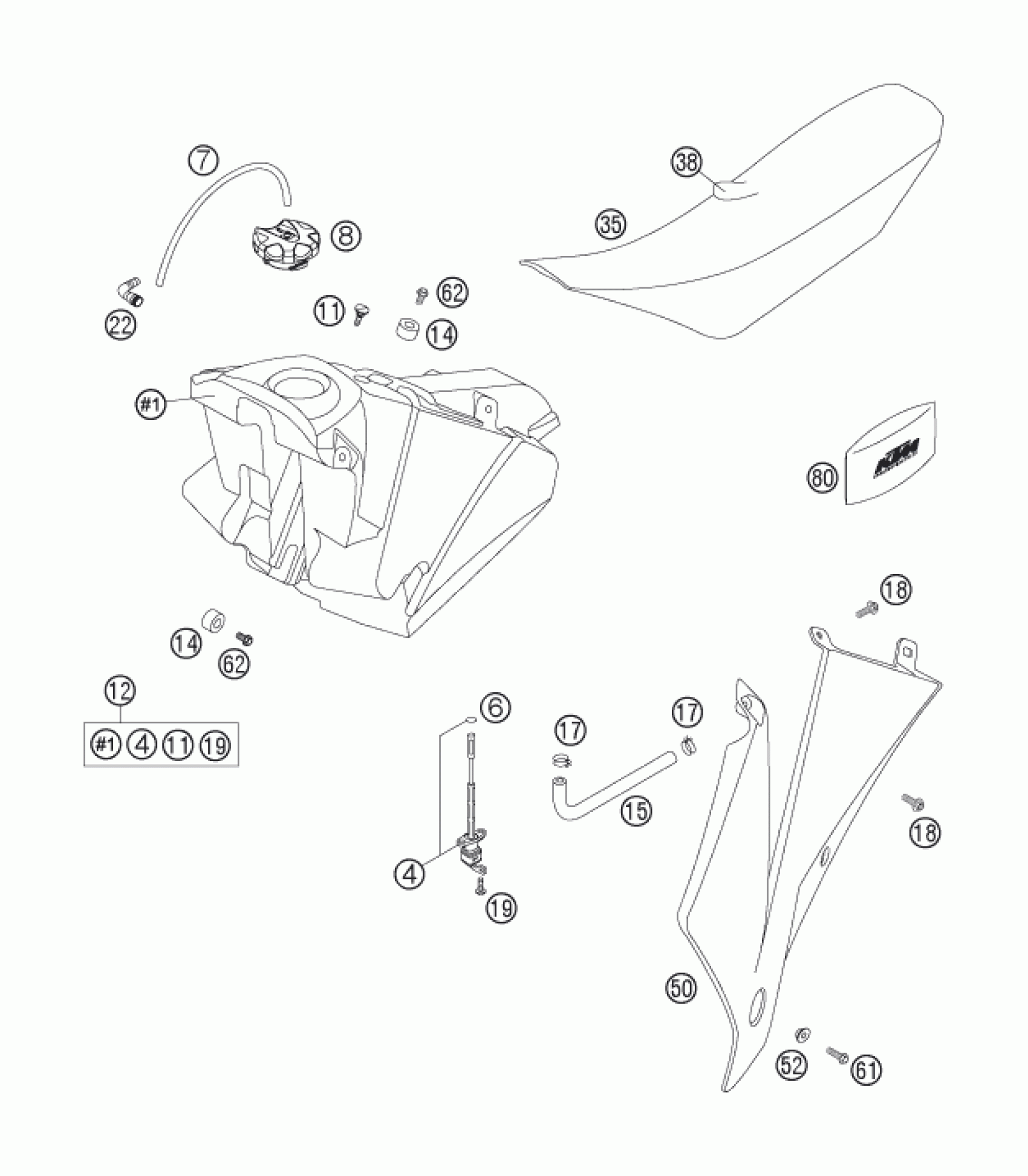

KTM 250 XC-F 2007 TANK, SEAT Diagram

GAS COCK ON/OFF/RES 03

54807004000

$32.72

O-RING 11X2 VITON

0770110021

$2.05

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

SCREW SEAT FASTENING D=6X23/18

50307011000

$3.08

FILLER CAP CPL. 05

77007008044

Unavailable

FUEL TANK CPL. 250 EXC-F 8,5L

7700711316644

$285.58

TANK ROLLER 12X26X12 '98

50307014000

$11.02

FUEL PREFORMED HOSE SX 2001

50307016000

$8.87

CLAMP YDNAC 10128 12MM

58031005000

$3.08

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

ANGLE PIECE 90 DEGREE M10X1

51030022000

$5.23

SEAT BLACK WITHOUT KTM-LOGO 05

54807040400

$151.37

SEAT COV.BLACK WITHOUT LOGO 05

54807040450

$51.04

SPOILER L/S ORANGE 05

5480805000004

$81.24

SPOILER R/S ORANGE 05

5480805100004

$81.24

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

TOOL KIT 07

77029099100

$67.50

TANK PLUG ORANGE/BLACK

7800700804404

$29.07

TANK PLUG BLACK

7800700804430

Unavailable
