Description

Price

1

ASSY SUPPORT (WITHOUT HOLDER)

56012001000

$969.33

2

FIXING ARM FRONT

77029002000

$88.48

3

FIXING ARM REAR

77029003000

$88.48

4

PROTECTION CAP FOR CAMSHAFT

77029035000

$18.39

5

SPECIAL CIRCLIP PLIER

51012011000

$191.50

6

EXTRACTOR FOR TIMING GEAR

59029033000

$164.93

7

PISTON RING COMPRESSOR CPL. 03

60029015000

$108.77

8

LOCTITE 243 BLUE 5 ML

6899785

$28.04

9

BUSHING EXTRACTOR

15112017000

$179.32

10

INTERN.BEAR.PULLER 12-16 MM

15112018000

$249.22

10

INTERN.BEAR.PULLER 18-23 MM

15112018100

$278.54

10

INTERN.BEAR.PULLER 5-7 MM

15112018200

$204.35

11

LIMIT PLUG GAUGE F.VALVE GUIDE

77029026000

$51.95

12

SEAL.RING PRESS PUNCH WAT.PUMP

60029043040

$22.11

13

FEELER GAUGE SET10,12,15,20,25

59029041000

$16.99

14

INSERT FOR VALVE SPRING LEVER

77029041000

$49.21

15

VALVE SPRING LEVER

59029019000

$415.46

16

MOUNTING TOOL INNER RING NJ206

58429037037

$91.62

17

MIXT. CONTROL SCREW FACTORY

59031017200

Unavailable

18

FLYWHEEL EXTRACTOR

58012009000

$47.90

19

SILICON GASKET THREE-BOND

309098

$28.88

20

HOLDING SPANNER FOR SPROCKET

51012012000

$98.42

21

SPARK PLUG WRENCH 16MM 1/2INCH

60029073000

$93.58

26

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

27

LOCTITE 648 GREEN 10ML

58429059000

Unavailable

28

HOLD. PLATE CLUTCH 125/200 '98

50329003000

$129.06

34

WRENCH FMIXTURE CONTROL SCREW

59029034000

$45.11

35

SP. WRENCH F.HOSE CONNECTOR 07

77329081000

$34.28

36

SPARK PLUG KEY 250 SX-F

77029072000

$42.01

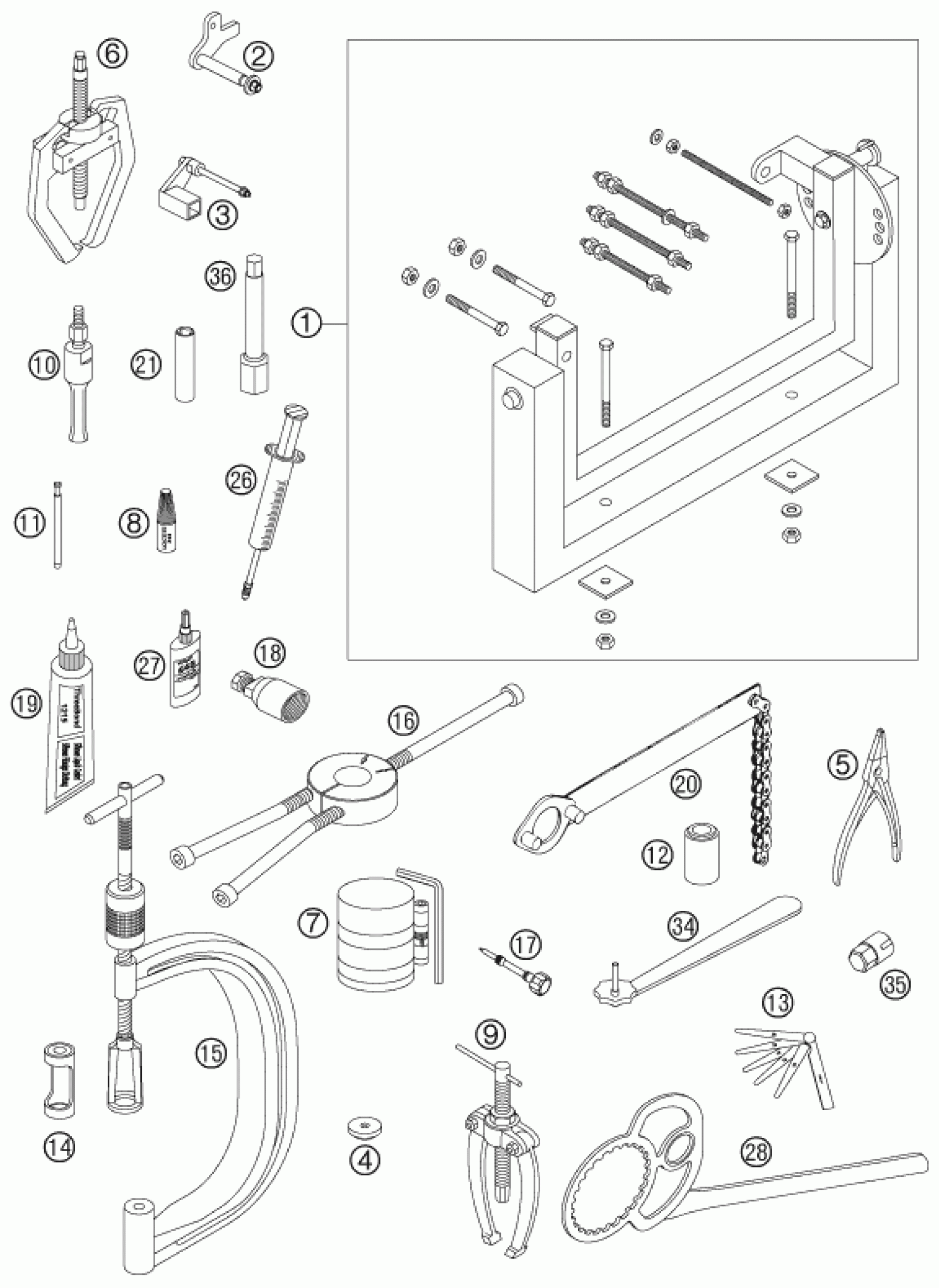

KTM 250 XC-F 2007 Special tools (engine) Diagram
