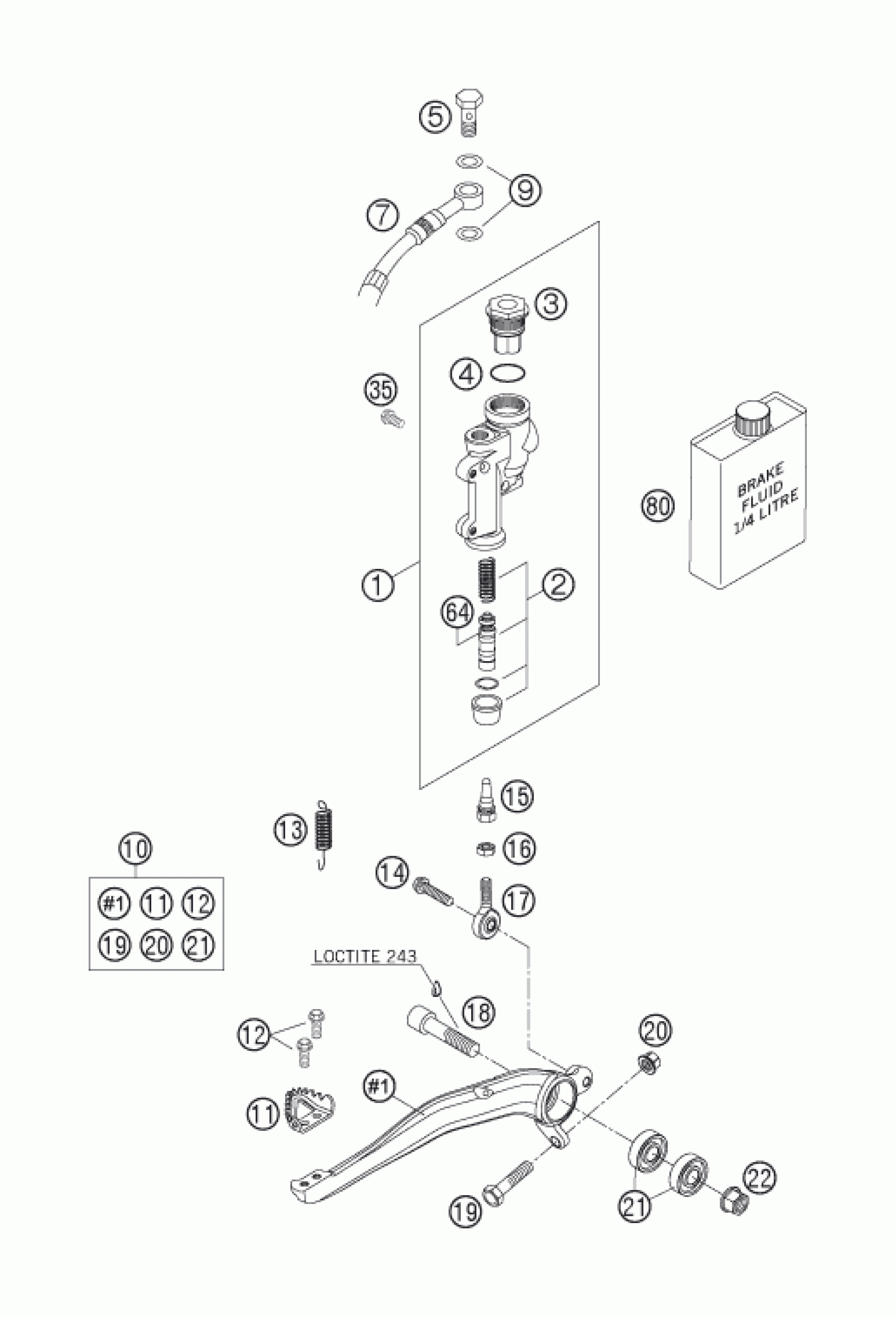

KTM 250 XC-F 2007 REAR BRAKE CONTROL Diagram

#

Description
Price

1

REAR BRAKE CYLINDER CPL. 2004

54813060100

$306.11

2

REPAIR KIT PISTON 13MM 06

54813061200

$54.78

3

REAR BRAKE CYL. COVER CPL. 04

54813062100

$45.06

4

FOOT-BRAKE CYL. GASKET SX 03

54813063000

$9.53

5

banjo bolt M10x1x19 black

54813020100

$9.90

7

BRAKE HOSE REAR 655MM 03

54813070000

$109.01

9

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

10

FOOT BRAKE LEVER CPL. 03

54813050044

$120.89

11

STEP PLATE FOR BRAKE LEVER

54813051000

$11.02

12

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

13

RETURN SPRING FOR BRAKELEVER

54603062000

$6.54

14

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

15

PUSH ROD L=28MM 03

54813056000

$15.89

16

Hex. nut DIN 934 M6

0934060003

$1.49

17

SWIVEL HEAD KA6 03

54813055000

$19.91

18

AH SCREW DIN6912 M10X40 10.9

0912100406

$4.11

19

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

20

flanged nut M8 WS10

46030045000

$7.85

21

deep groove ball bearing SKF 6

0625060002

$12.33

22

COLLAR NUT M10 WS=13

54630044000

$1.49

35

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

64

BELLOWS FOR REPAIR KIT 06

54813064200

$13.46

80

Brake fluid DOT5.1 0,25L

00062030000

$12.52
