LUBRICATING SYSTEM

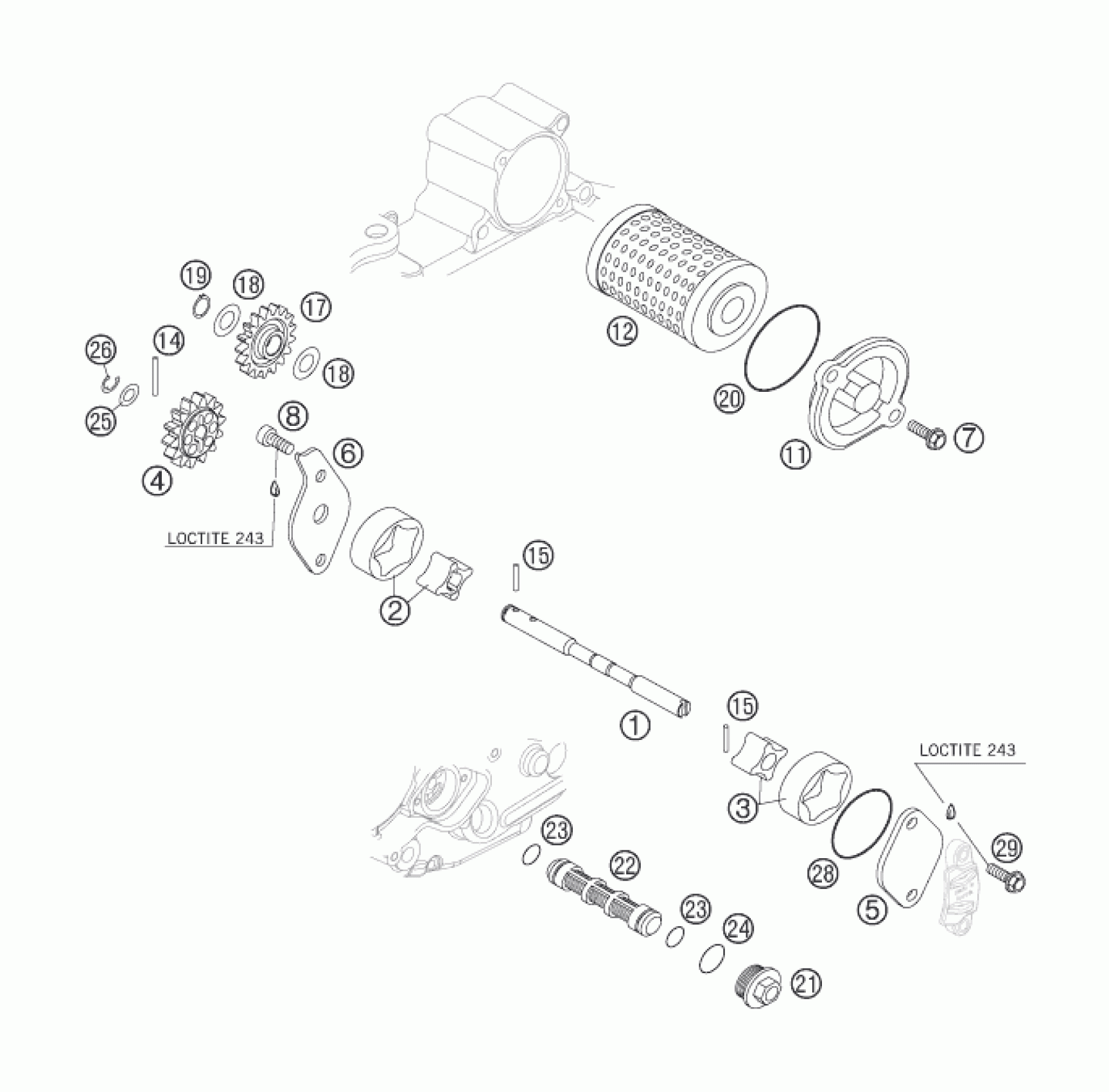

KTM 250 XC-F 2007 LUBRICATING SYSTEM Diagram
#
Description
Price
1
OIL PUMP SHAFT EXC-F
77038102000
$19.72
2
OILPUMP ROTOR CPL. 10MM G-73R
59038011010
$32.53
3
OILPUMP ROTOR 15MM G-164
77038011000
$43.75
4
OIL PUMP GEAR 14-T
77038001000
$47.30
5
OIL PUMP COVER L/S 05
77038004000
$17.20
6
OIL PUMP COVER R/S 05
77038003100
$12.05
7
HH COLLAR SCREW M 5X16 WS=8
0015050163
$2.05
8
AH SCREW DIN6912-M 5X12
0984050122
$1.49
11
OIL FILTER COVER RACING
59038041000
$14.02
12
OIL FILTER 06
77038005000
$8.69
14
NEEDLEROL.DIN5402 NRA 2,5X19,8
0402251980
$1.49
15
NEEDLE ROLLER DIN5402 2,5X11,8
0402251180
$1.49
17
OILPUMP IDLER GEAR 17T. 05
77038006000
$46.84
18
SHIM WASHER DIN0988-12X18X0,50
0988121805
$2.05
19
retaining ring DIN 471 12x1
0471120010
$1.49
20
O-RING 40,00X2,50 NBR 70
0770400025
$2.05
21
PLUG M20X1,5 WS=13
59038017000
$7.85
22
OIL SCREEN 15X83MM
59038016000
$7.00
23
O-RING 12,5X1,5 NBR
0770125015
$2.05
24
O-RING 17,17X1,78 GLO
0770020170
$2.05
25
STOP DISK 8,1 X 15 X 0,5
58038007755
$2.05
26
TAB WASHER DIN6799-RS 6,0
0799060000
$2.05
28
O-RING 32,00X2,00
0770320020
$2.05
29
HH COLLAR SCREW M 5X20 WS=8
0015050203
$2.05
