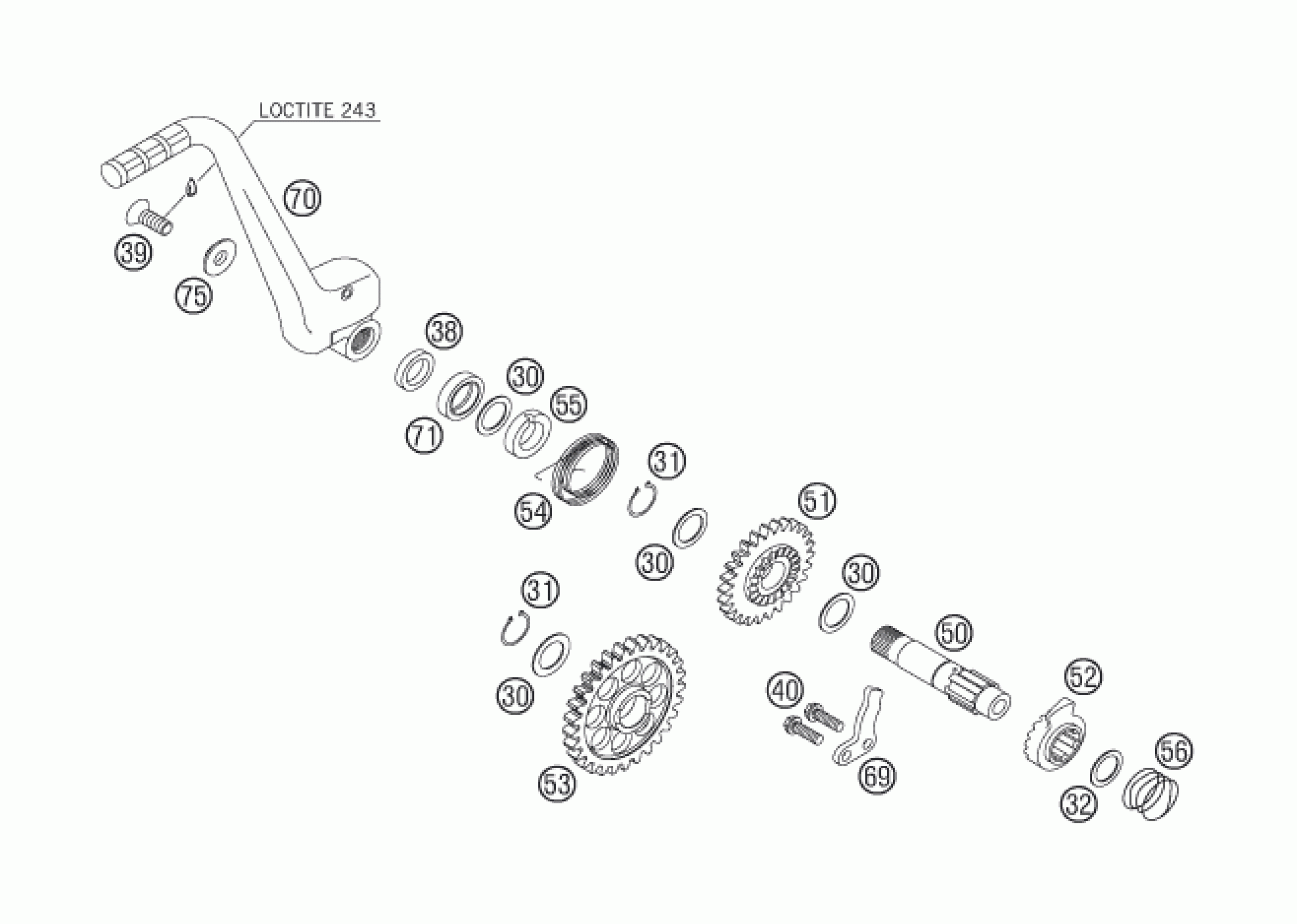

KTM 250 XC-F 2007 KICK STARTER Diagram

STOP DISK 17,2X24X1

50333030000

$5.23

CIRCLIP DIN0471-17X1

0471170010

$2.05

THRUST WASHER DIN0988-16X22X1

0988162210

$2.05

SPACER BUSHING 16X23X26X6,1

50333038100

$8.13

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

KICKSTARTER SHAFT 05

77033050000

$57.96

KICKSTART. GEAR 28-T 05

77033051000

$69.37

KICKSTARTER RATCHET

50333052000

$101.63

INTERMEDIATE GEAR 05

77033053000

$53.58

KICKSTARTER SPRING 05

77033054000

$7.10

DRIVING HUB ´05

77033055000

$8.03

SPRING 1,4MM '98

50333056000

$3.08

STOP MET.SHEET 4MM 125/200'98

50333069000

$15.98

KICKSTARTER CPL. 07

77033070044

$132.67

SHAFT SEAL RING 17X28X7 B

0760172870

$8.03

WASHER 8MM GALVANIZED

54633037000

$6.07
