FRONT FORK, TRIPLE CLAMP

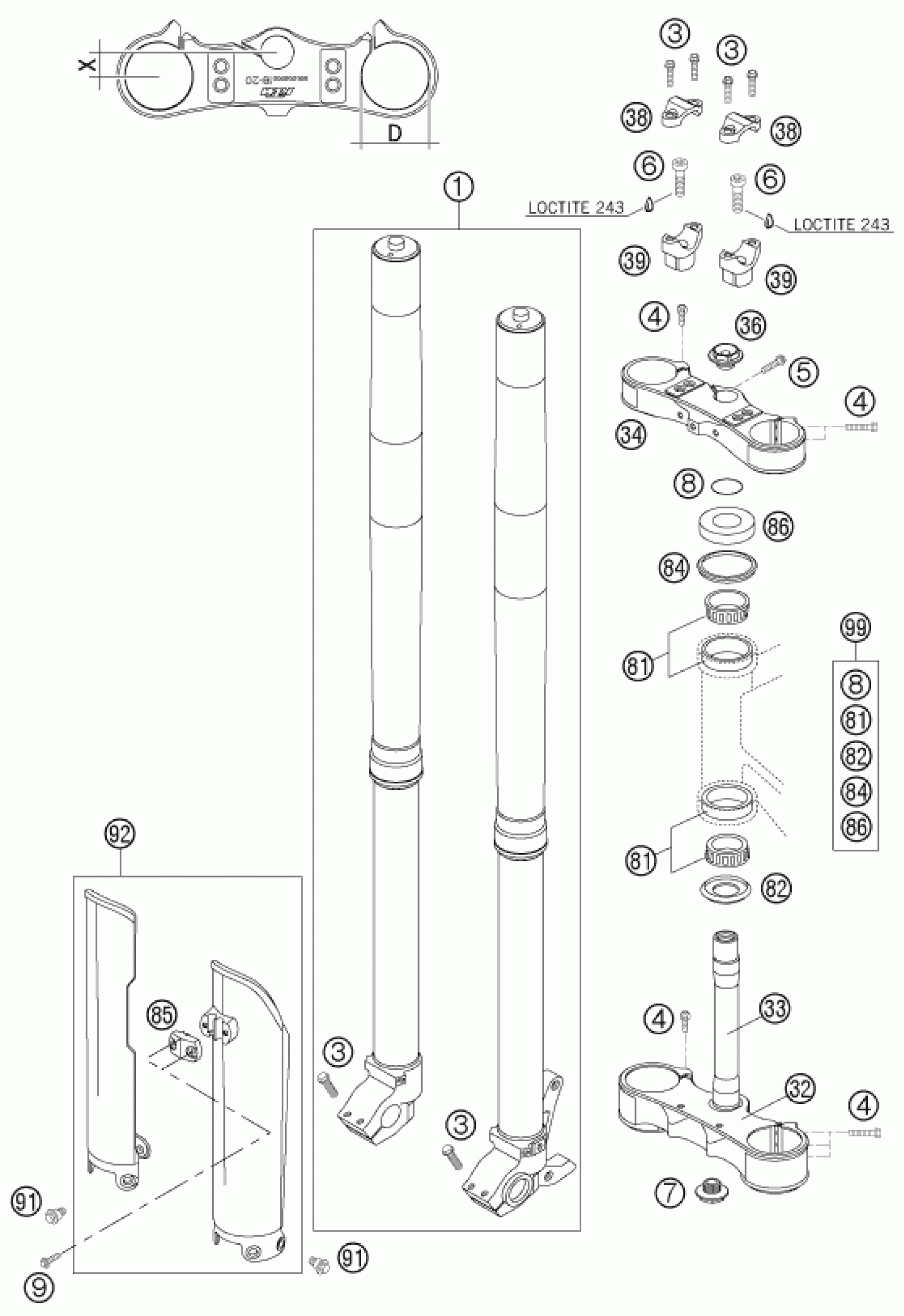

KTM 250 XC-F 2007 FRONT FORK, TRIPLE CLAMP Diagram
#
Description
Price
1
FORK KPL.WP 48 250/300XC+SD 07
14187C28
Unavailable
3
HH COLLAR SCREW M 8X25 WS=10
0015080253
$2.05
4
HH COLLAR SCREW M 8X35 WS=10
0015080353
$4.11
5
HH COLLAR SCREW M8X25 WS=10
0015080256S
Unavailable
6
AH SCREW DIN6912-M10X35 10.9
0912100356
$4.11
7
STE.HEAD SCR. M20X1,5 WS=27 SL
54801036100
$14.67
8
O-RING 25X3,55 NBR70 05
0770025035
$1.49
9
EJOT PT SCREW K60X20 ALU WS=6
0017060204
$3.08
32
BOTTOM TRIPLE CLAMP D=60MM 05
59401031019
$279.09
36
STEER.HEAD SCREW M20X1,5 WS=27
54801036000
$11.21
81
TAPERED ROLLER BEARING CPL. 06
54201081100
$51.04
82
O-RING SUPPORT W. SEALING LIP
54601084100
$19.35
33
FORK TUBE L=237MM 05
59401033000
$85.64
34
TOP TRIPLE CLAMP D=54MM 05
59401034019
$223.74
38
HANDLEBAR CLAMP 28MM 05
59401038000
$25.05
39
Handlebar mount D28mm-H32mm
59401039032
Unavailable
39
Handlebar mount D28mm-H37mm
59401039037
Unavailable
39
Handlebar mount D28mm-H42mm
59401039042
Unavailable
84
STEARING HEAD GASKET TOP
54601184000
$7.10
85
CLAMP F.SPEED.CABLE ORANGE 06
5900108510004
$1.49
86
STEERING HEAD COVER
54201086000
$8.50
91
SPECIAL SCREW M6X12,5 WS=8
59001092050
$2.05
92
FORK PROT. L/S +R/S ORG 02
5900109400004
$33.99
99
STEARING HEAD REP. KIT 06-15
00050000930
Unavailable
