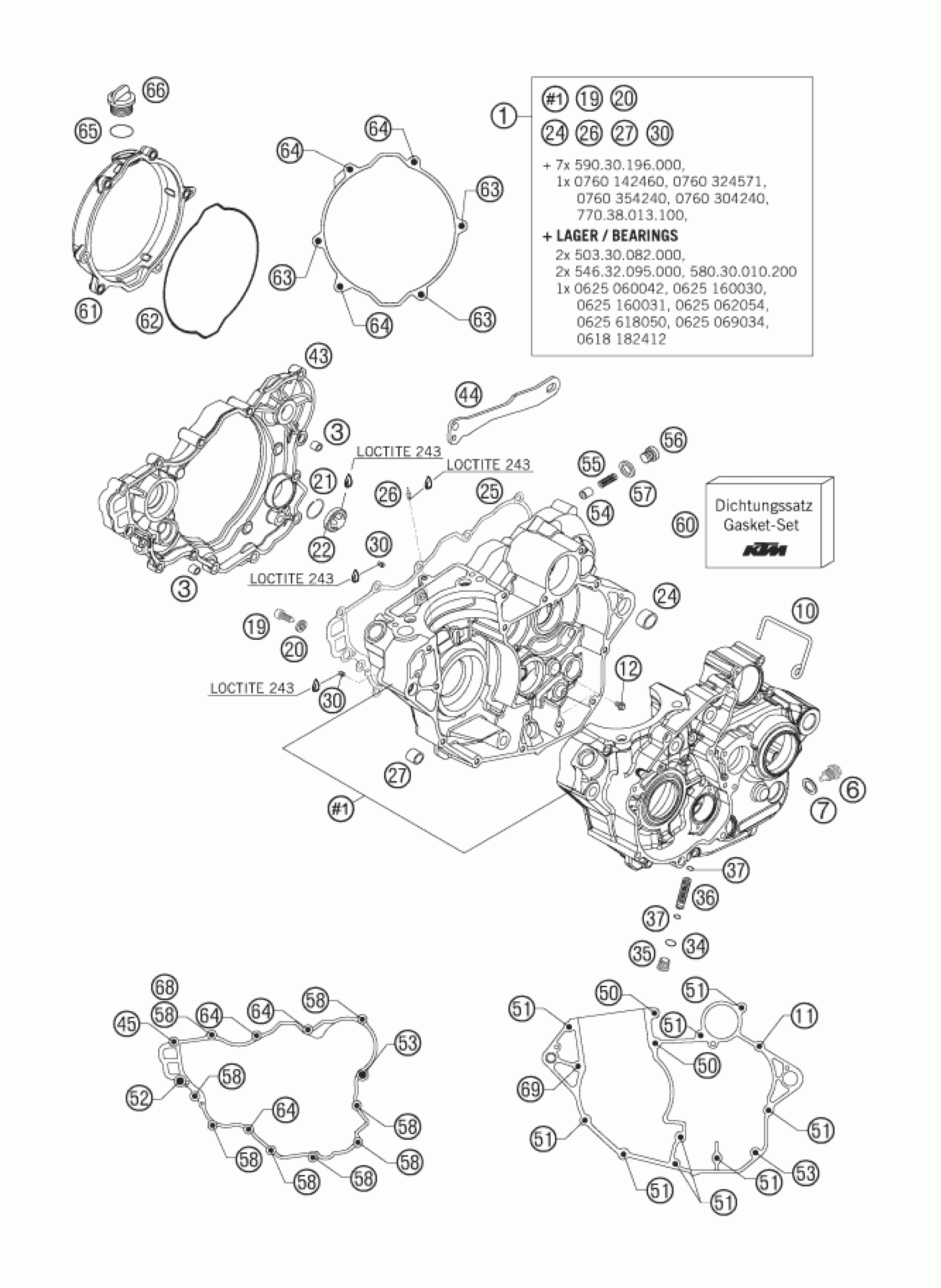

KTM 250 XC-F 2007 ENGINE CASE Diagram

ENGINE CASE CPL. EXC-F/XC-F 07

77030100144

$897.21

DOWEL 9,8 X 7 X 10

49030090000

$2.05

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

BRACKET FOR BREATH HOSE

77030090000

$2.67

HH COLLAR SCREW M 6X45 WS=8

0015060453

$2.05

HH COLLAR SCREW M 6X8 WS=8

0015060083

$2.05

LOCATING SCREW M8 L=23

58030080000

$17.66

CU-SEAL RING 8 X 14 X 3

58030081000

$2.05

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

OIL LEVEL GLASS G 1777 Y

59030019000

$21.31

DOWEL 17 X 19 X 12

59030024000

$5.23

GASKET FOR CLUTCH COVER 05

77030025100

$17.66

OIL JET 70 M6X0,75 WS8 03

60030064070

$11.49

DOWEL BUSHING 13,8X11X12

54630027000

$6.91

JET 100 BING(44-031/180) M4

59030058000

$4.11

O-RING 12,00X2,00 NBR 70

0770120020

$2.05

PLUG M16X1,5

59038014100

$16.82

OIL SCREEN 11,8X44,5MM

59038015000

$12.61

O-RING 9X1,5 NBR

0770090015

$2.05

CLUTCH COVER CPL.

77030001044

$93.37

CHAIN DAMPERSHEET EXC-F 07

77030047100

$25.98

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

HH COLLAR SCREW M 6X65 WS=8

0015060653

$2.05

HH COLLAR SCREW M 6X50 WS=8

0015060503

$3.08

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

VALVE PISTON D=10MM

58038028000

$37.77

PRESSURE SPRING L=25MM D=1MM

58038023300

$5.23

threaded plug DIN 908 M12x1.5

0908120153

$4.11

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

GASKET SET 05

77030099000

$276.00

CLUTCH COVER OUTSIDE 06

77030026100

$43.18

MOLDED RING 05

77030027000

$18.69

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

HH COLLAR SCREW M 6X55 WS=8

0015060553

$1.49

O-RING 19,00X3,00 NBR

0770191015

$2.05

PLUG M 24X3

58030020000

$5.23

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

HH COLLAR SCREW M 6X60 WS=8

0015060603

$3.08
