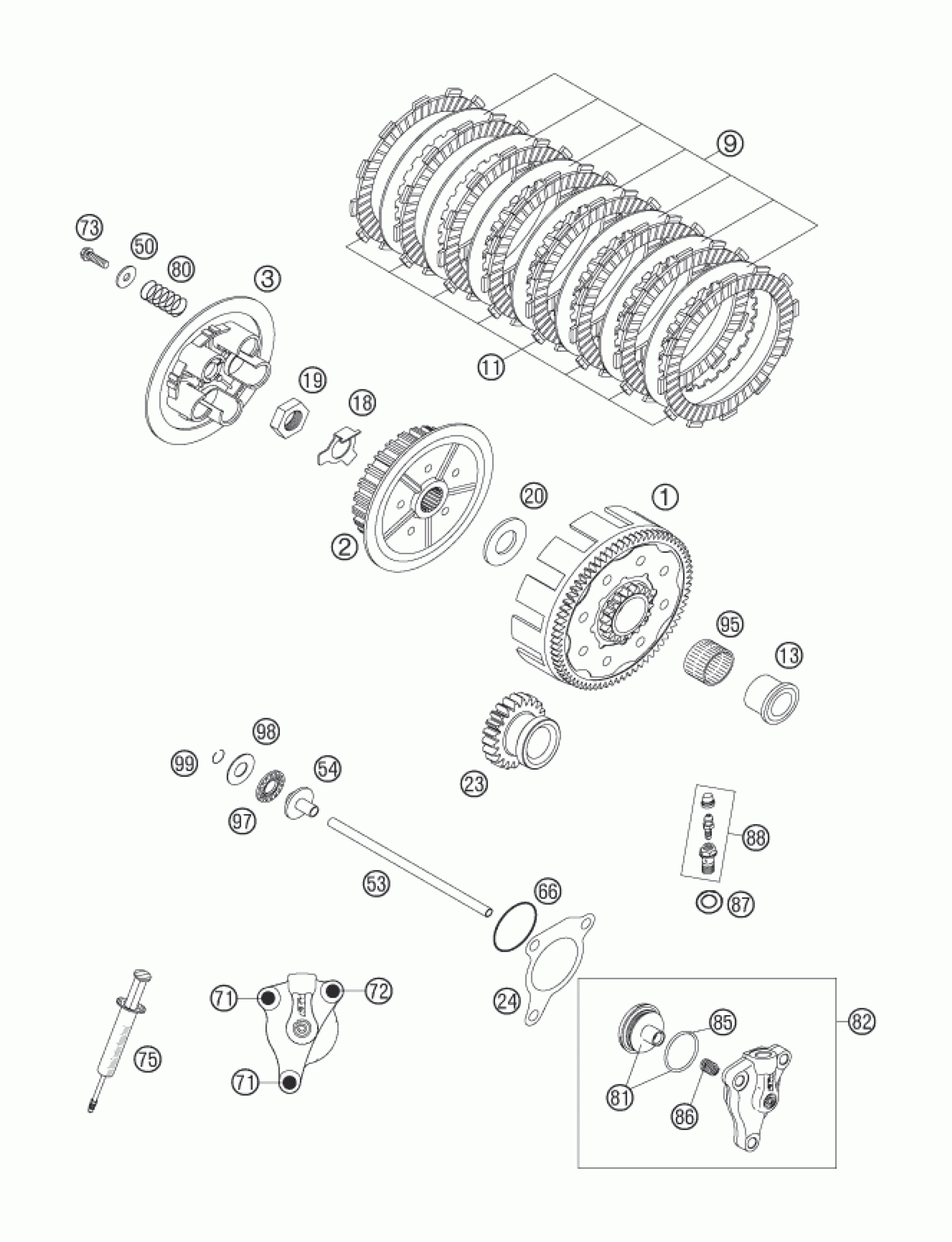

KTM 250 XC-F 2007 CLUTCH Diagram

OUTER CLUTCH CPL. 05

77032001000

$406.33

INNER CLUTCH HUB 05

77032002000

$129.77

PRESSURE PLATE 05

77032003000

$105.09

INTERMEDI. DISC STEEL 05

77032010000

$11.77

LINING DISC 3,0MM 05

77032011000

$36.27

INNER RING 20X26X25,9 '98

50332013000

$30.19

SHEET METAL LOCK 1,5MM '98

50332018000

$6.26

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

STOP DISK 20X39,6X3 '98

50332020000

$16.35

PRIMARY GEAR 22T. 05

77032000122

$107.42

WASHER 6,2X18X2

50232050000

$5.23

PUSH ROD 05

77032054000

$10.84

PRESSURE PIECE 125-380 '98

50332054051

$26.45

O-ring 30x1.5 NBR 70

0770300015

$2.05

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

CLUTCH SPRING

77032005000

$3.08

PISTON CPL.

54832066000

$68.43

OUTPUT CYLINDER CPL. 06

54832061044

$137.44

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

AXIAL NEEDLE BEARING AXK 1226

54637097200

$10.18

AXIAL WASHER AS1226 12X26X1

54637098200

$5.23

CIRCLIP DIN7993-RW12

0993012000

$3.08

O-RING

54832067000

$3.08

PRESSURE SPRING

54832069000

$12.05

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

BLEEDER HOLLOW SCREW M10X1

54813020000

$27.48

GASKET FOR SLAVE CYLINDER

59032065000

$5.60
