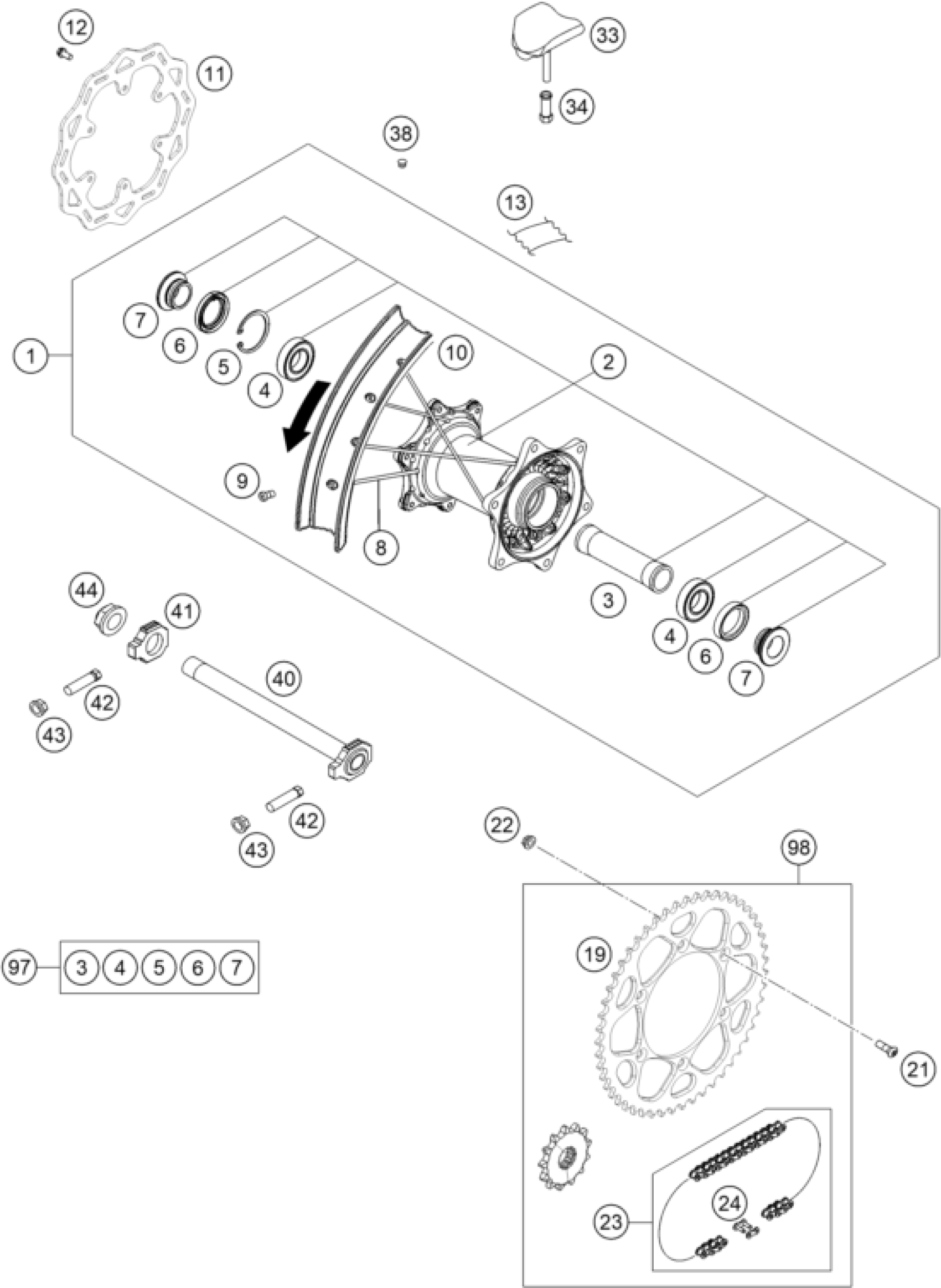

KTM 250 XC 2026 REAR WHEEL Diagram

#

Description
Price

1

rear wheel cpl. 2,15x18" GIANT

A4701000104430

$815.59

2

Rear wheel hub cmpl.

A36010010044

Unavailable

3

Bearing spacer tube 121.5mm

A46010011000

$15.33

4

Grooved ball bear.6005 DDU2CG2

0625060058

$18.32

5

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

6

Radial shaft seal 35X47X7 TC

0760354771

$8.69

7

Spacing tube rear wheel

A46010016000

$16.17

8

SPOKE M4,5X193- 18'' BLACK 12

7711007119330

$5.23

9

Spoke nipple M4.5

79109072000

$3.08

10

RIM REAR 2,15X18'' BLACK

7811007000030

$219.06

11

BRAKE DISC REAR 220MM 16

79010060000

$129.12

12

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

13

Tube protector 18" and 19"

50310073200

$13.27

19

SPROCKET 48-T BLACK

7771015104830

Unavailable

19

Sprocket 49-t

7771015104930

Unavailable

19

Rear sprocket 50-t, black

7771015105030

$73.67

19

Rear sprocket 51-t

7771015105130

Unavailable

19

Rear sprocket 52-t, black

7771015105230

Unavailable

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

22

Hex. nut DIN EN 1661 M8 WS13

06923080003

$2.05

23

CHAIN 5/8X1/4'' MX

50310165118

$84.14

24

Connecting link for 5031016511

50310166000

$6.79

33

Tyre locker 2,15"

78110090200

$20.56

34

NUT FOR WHEEL HOLDER

77110090050

$5.23

38

PLUG FOR RIM

55003135000

Unavailable

40

Wheel spindle rear wheel cmpl.

A46010085044

$52.61

41

Chain tension adjuster right

A46010084000

$10.93

42

screw M10x1.25x50 WS10

50304040100

$5.23

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

44

Collar nut M22x1.5 WS=30

A46010086000

$5.79

97

wheel bearing repair kit

A46010015010

Unavailable

98

Drivetrain set XC 13T/50T

SPAA13U50CM118A

Unavailable
