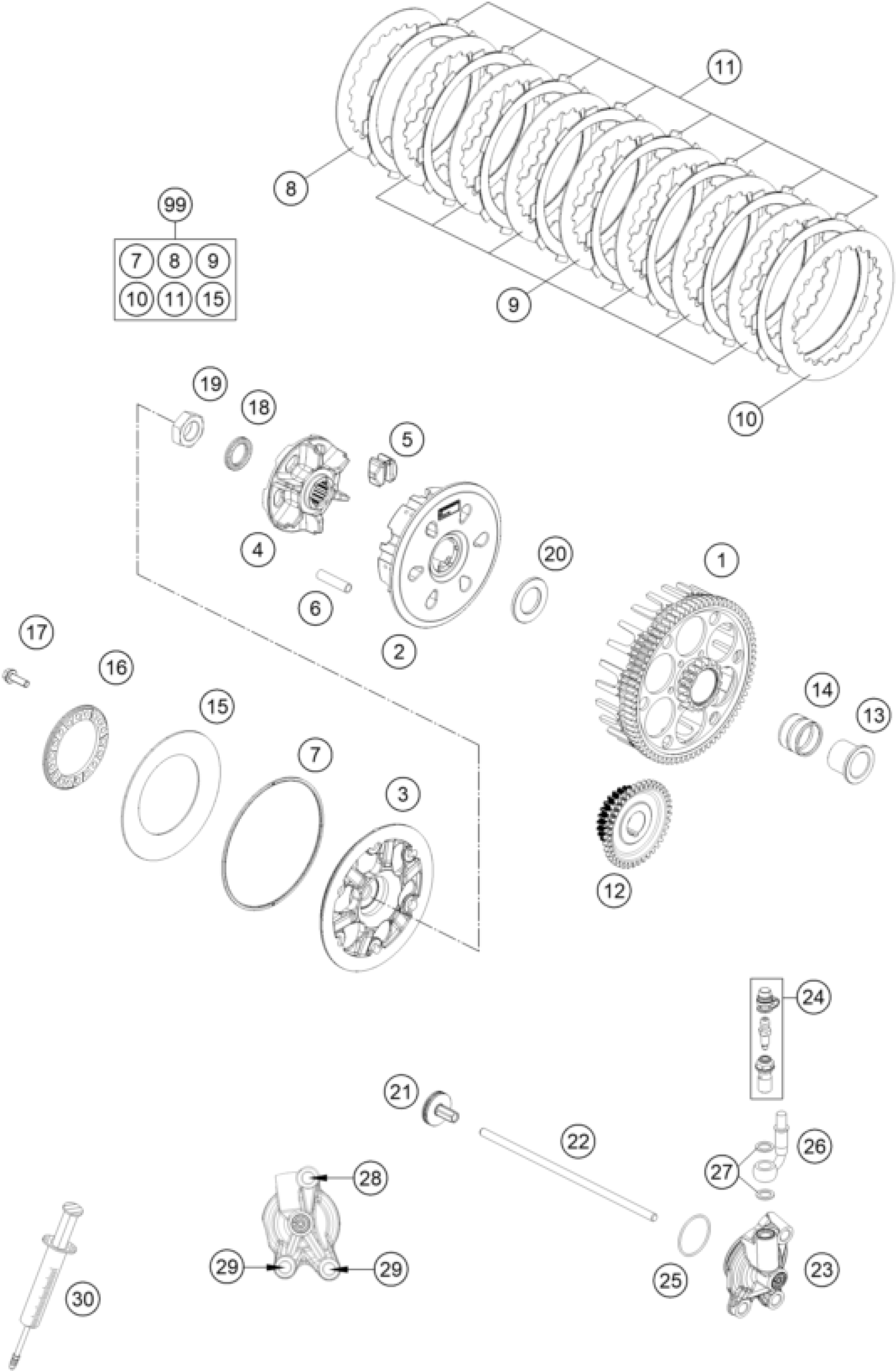

KTM 250 XC 2026 CLUTCH Diagram

#

Description
Price

1

Outer clutch hub

A46032001072

$191.01

2

Inner clutch hub

78132002400

$102.56

3

Clutch pressure plate

79432003100

$23.74

4

Clutch center

78132002211

$67.12

5

DAMPING RUBBER

78132025100

$4.11

6

Sleeve, 7.95x38

77232104000

$3.08

7

WASHER 112X118X1.5

78132013000

$10.84

8

INTERMEDIATE DISC 1MM 2002

59032010100

$9.81

9

INTERMEDIATE DISC 1,4MM 2002

59032010200

$10.93

10

INTERMEDIATE DISC 1MM

78932010000

$12.05

11

LINING DISC 1,95 MM

54832011100

$25.80

12

PRIMARY GEAR

55432024026

$140.62

13

Collar sleeve

A46032015000

$13.64

14

NEEDLE BEAR K 25X29X10

0405252910

$8.87

15

BELLEVILLE SPRING 71X115X1,5 I

78132005000

$31.97

16

Spring retainer

78132006200

$10.84

17

HH collar screw M5x16 TX30

0025050166

$2.05

18

Wedge lock washer 19.5x29x3.4

0252012002900

$3.08

19

Hex nut DIN0936-M18x1.5 right

0936181506

$3.08

20

WASHER 22 X 36,5 X 3

78932009000

$7.75

21

PRESSURE PIECE CPL.

78132057144

$30.75

22

Push rod

A48032054000

$7.56

23

OUTPUT CYLINDER CPL.

79232061044

$187.65

24

BLEEDER SCREW CPL.

79032064000

$30.38

25

O-ring 30x1.5 NBR 70

0770300015

$2.05

26

CLUTCH PIPE

79232063000

$112.38

27

SEAL RING CU DIN7603- 8X12X1

0603082121

$3.08

28

HH collar screw M6x25 TX30

0025060256

$3.08

29

HH collar screw M6x16 TX30

0025060166

$3.08

30

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

99

CLUTCH KIT 250/300 13-15

54832011110

Unavailable
