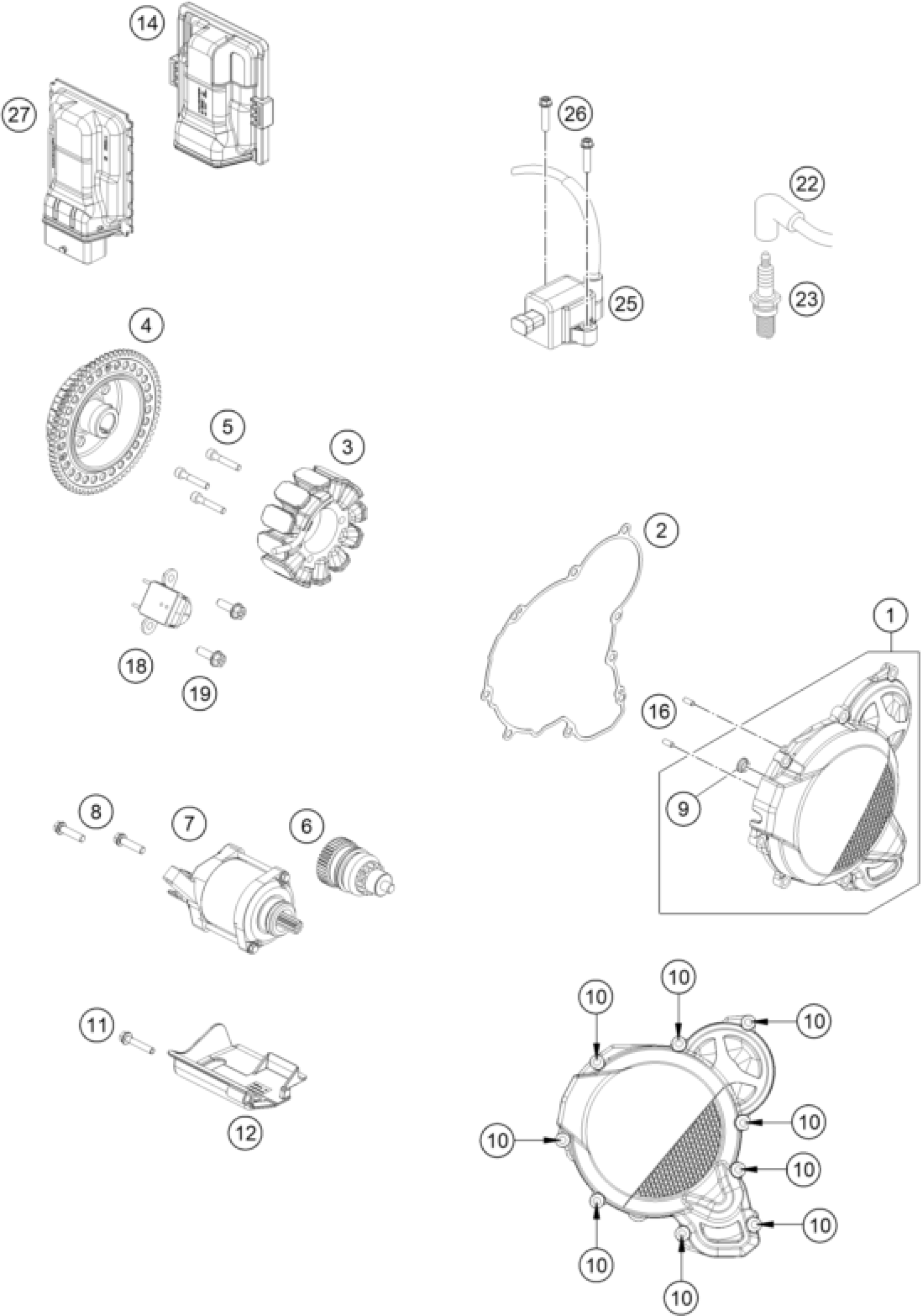

KTM 250 XC 2023 IGNITION SYSTEM Diagram

#

Description
Price

1

Ignition cover cpl.

A44030002044C1

$112.57

2

Ignition cover gasket

A44030040000

$18.22

3

Stator

A44039404000

$178.02

4

Rotor

A44039405000

$412.23

5

Bolt DIN 6912 - M5x25 SS

0012050253S

$1.49

6

BENDIX

55440126000

$124.07

7

Starter motor

A44040201000

$229.35

8

HH collar screw M6x25 TX30

0025060256

$3.08

9

Collar bushing

55540031000

$2.05

10

HH collar screw M6x20 TX30

0025060206

$3.08

11

HH collar screw M6x30 TX30

0025060306

$3.08

12

Starter motor cover

A44040040000

$20.37

14

Engine control unit rubber

A45041031050

$8.13

16

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

19

Hex collar screw M 5x16 SW=6

0014050163S

$1.49

22

Ignition wire

A44039007000

$64.79

23

Spark plug

A44039093000

$5.98

25

Iginition coil

55639006000

$52.16

26

HH collar screw M6x25 TX30

0025060256

$3.08

27

Engine control unit

A45041031000

$312.47

18

Pulse generator cmpl.

55539034000

$31.69
