Description

Price

1

silencer SX

A44005079000

$467.02

8

exhaust rubber

55405057000

$16.07

13

hose spring

55405058000

$3.08

18

BUSHING 7.5x12x28x8.3 11

77205169000

$6.07

16

Pair of washers M6 NORDLOCK

50233041000

$4.11

15

HH collar screw M6x30 TX30

0025060306

$3.08

9

O-RING 44,00X3,00 VITON

0770440030

$4.11

10

Tension spring L=65 mm

50305016200

$4.57

11

RANGE CHANGE METAL NUT M8

54603048000

$4.11

12

BUSHING 8.5x12x28x8.3

77805069000

$5.98

14

HH collar screw M8x30

0025080306

$3.08

17

Damper gray

79105068000

$8.03

19

DAMP. COMPON. BLACK

77205068000

$6.54

2

SCREW TORX M5X10

78105081010

$2.05

3

DUMMY RIVET 4,8X 8 NIRO

0011480800

$3.08

4

O-RING 74,00X1,50 FKM 75SH

0770740015

$4.11

5

end cap cpl.

A44005079060

$110.51

6

stuffing yarn package

A44005079085

$49.36

7

manifold

A44005007000

$562.02

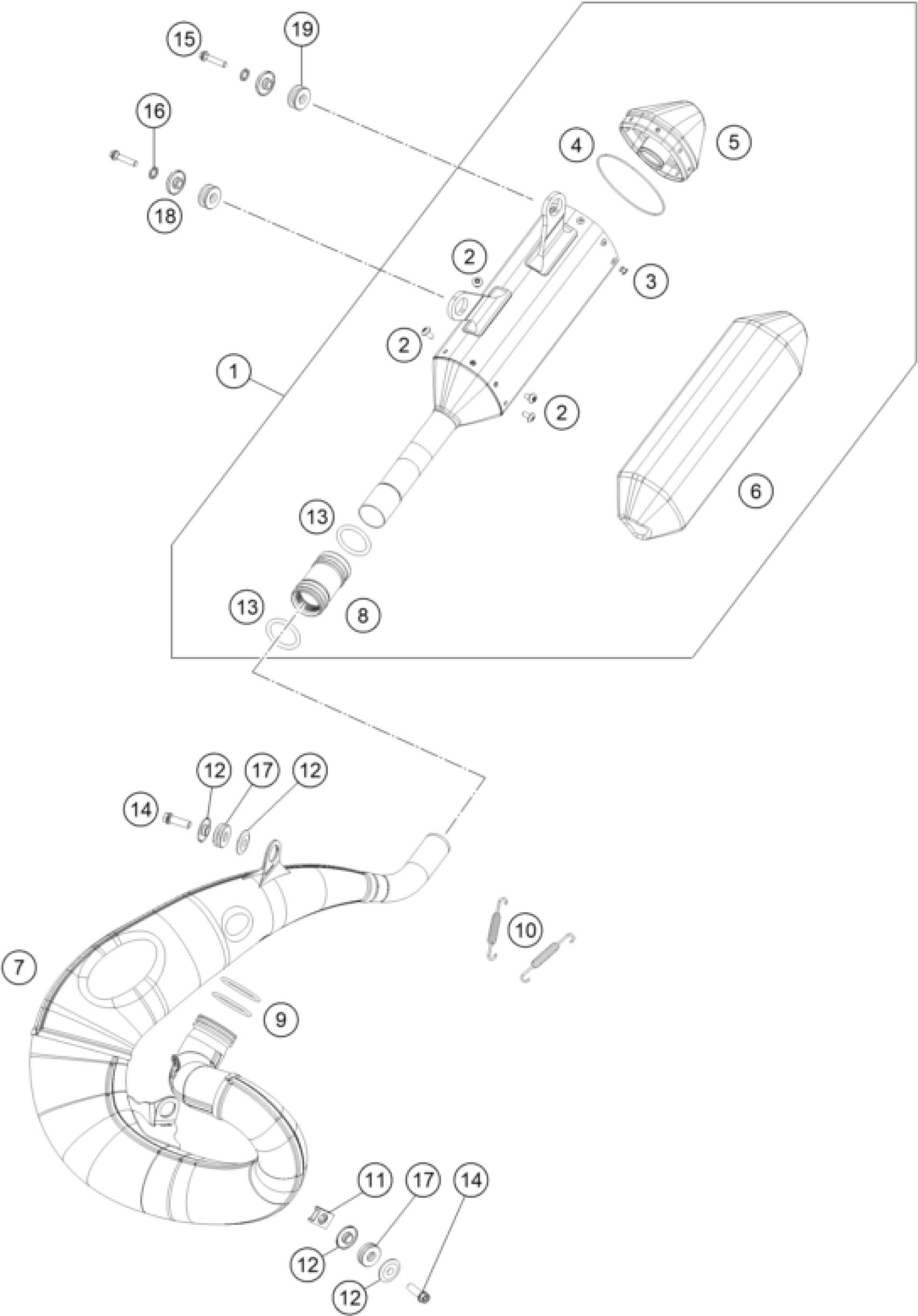

KTM 250 XC 2023 EXHAUST SYSTEM Diagram

silencer SX

exhaust rubber

hose spring

BUSHING 7.5x12x28x8.3 11

Pair of washers M6 NORDLOCK

HH collar screw M6x30 TX30

O-RING 44,00X3,00 VITON

Tension spring L=65 mm

RANGE CHANGE METAL NUT M8

BUSHING 8.5x12x28x8.3

HH collar screw M8x30

Damper gray

DAMP. COMPON. BLACK

SCREW TORX M5X10

DUMMY RIVET 4,8X 8 NIRO

O-RING 74,00X1,50 FKM 75SH

end cap cpl.

stuffing yarn package

manifold
