Description

Price

1

Engine case cmpl.

A44030000044

$893.01

3

oildrain plug with magnet

58030021100

$11.30

4

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

6

CIRCLIP DIN0472-42X1,75

0472042175

$2.05

7

CIRCLIP DIN0472-28X1,2

55430059100

$1.49

11

Retaining bracket crankshaft b

75030085100

$1.49

12

Housing bush

79230010000

$11.87

14

Collar bushing

55540031000

$2.05

19

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

26

Clutch cover gasket, inner

A44030025000

$12.89

27

DOWEL BUSHING 13,8X11X12

54630027000

$6.91

28

Dowel, 21x12

54830027100

$5.23

60

HH collar screw M6x60 TX30

0025060606

$3.08

99

Gasket kit Engine MX 250/300

A44030099000

Unavailable

13

ANGLE PIECE 50CCM LC 2001

45130022000

$5.88

61

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

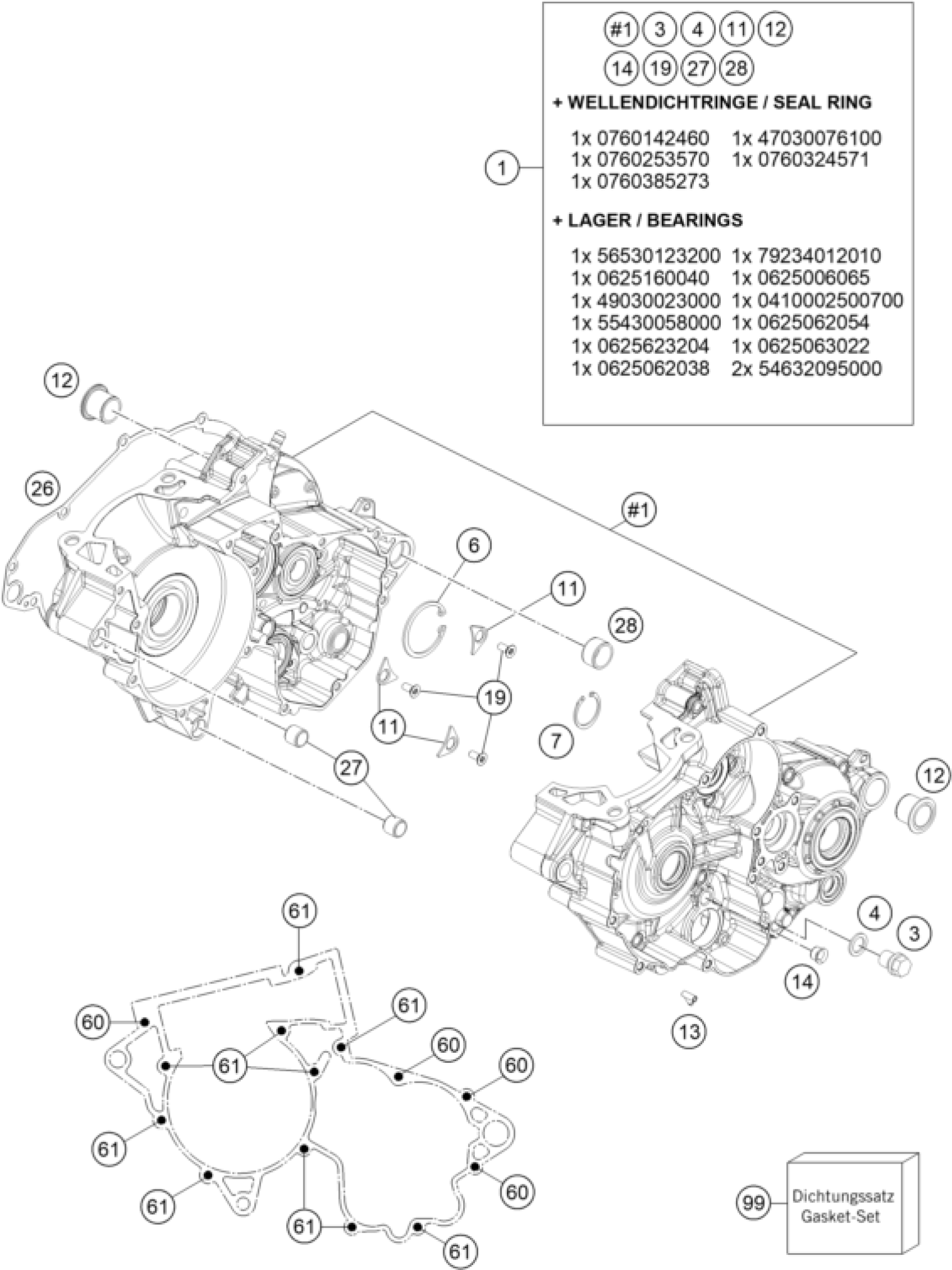

KTM 250 XC 2023 ENGINE CASE Diagram

Engine case cmpl.

oildrain plug with magnet

CU-seal ring DIN7603-12X18X1.5

CIRCLIP DIN0472-42X1,75

CIRCLIP DIN0472-28X1,2

Retaining bracket crankshaft b

Housing bush

Collar bushing

INT. TORX FLAT HEAD M5X12 T25

Clutch cover gasket, inner

DOWEL BUSHING 13,8X11X12

Dowel, 21x12

HH collar screw M6x60 TX30

Gasket kit Engine MX 250/300

ANGLE PIECE 50CCM LC 2001

HH COLLAR SCREW M6X45 TX30
