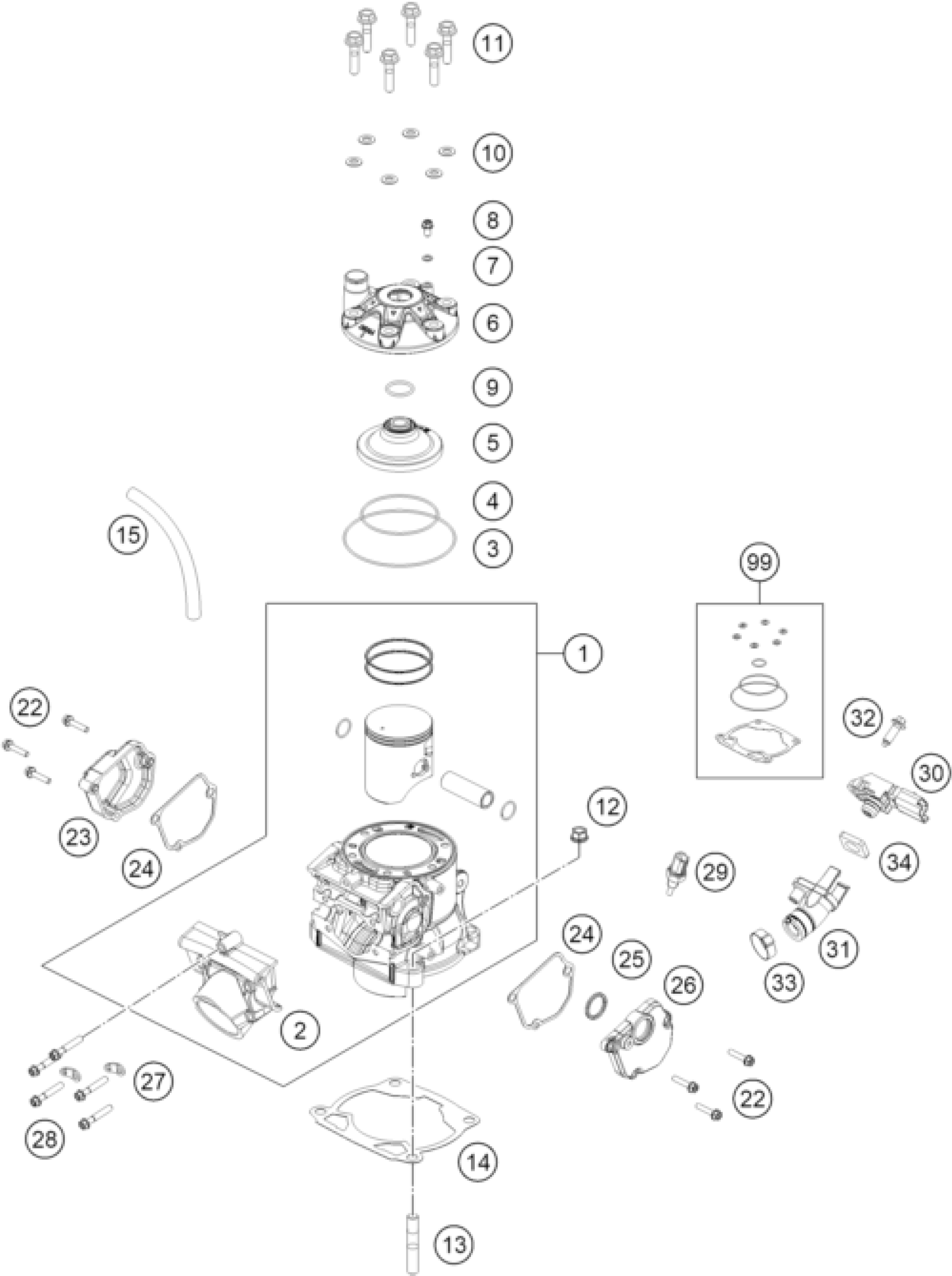

KTM 250 XC 2023 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

1

Cylinder + Piston MX 250 2023

A44030038000

$1,052.61

15

Engine vent hose

A42030087000

Unavailable

3

O-Ring 107x2

0770107020

$3.08

4

O-RING 73,00X2,00 VITON

0770730020

$5.23

5

Combustion chamber insert KTM

A44030060000

$57.68

6

Cylinder head

A45030006100

$30.85

7

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

8

HH collar screw M6x10 TX30

0025060106

$3.08

10

CU-SEAL RING 8 X 16 X 1

56530080000

$2.05

9

O-ring 23x2,5 Viton 75SH

0770023025

$1.49

11

COLLAR SCREW M 8X35 WS=13

54830079000

$4.11

12

Collar nut M10-SW13 ZnNi

55530044000

$1.49

13

Stud bolt M10x30

0835100300

$2.05

14

Cylinder base gasket

A44030035020

Unavailable

14

Cylinder base gasket

A44030035025

Unavailable

14

Cylinder base gasket

A44030035030

Unavailable

14

Cylinder base gasket

A44030035040

Unavailable

14

Cylinder base gasket

A44030035050

Unavailable

14

Cylinder base gasket

A44030035070

Unavailable

14

Cylinder base gasket

A44030035080

Unavailable

22

HH COLLAR SCREW M5X25 ISA30

0025050256

$1.49

23

exhaust control cover right

A44037007000

$12.80

24

Control cover seal, left

A44037006000

$5.23

25

X-ring 21.89x2.62 FKM 70

0770002226200

$2.05

26

exhaust control cover left

A44037005000

$19.44

27

RETAINING PLATE

51005074000

$3.08

28

HH collar screw M6x35 TX30

0025060356

$3.08

99

Sealkit cylinder MX 250/300

A44030097000

Unavailable

29

water temperature sensor

79435047000

$23.74

30

crank case pressure sensor

A45041075000

$50.01

31

Pressure sensor flange

A44041087000

$12.05

32

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

33

VARIABLE ONE-EAR CLAMP 21,0MM

00050210706

$2.05

34

Pressure sensor EPDM plate

A45041075050

$5.79

2

Intermediate flange

A44037001000

$29.54
