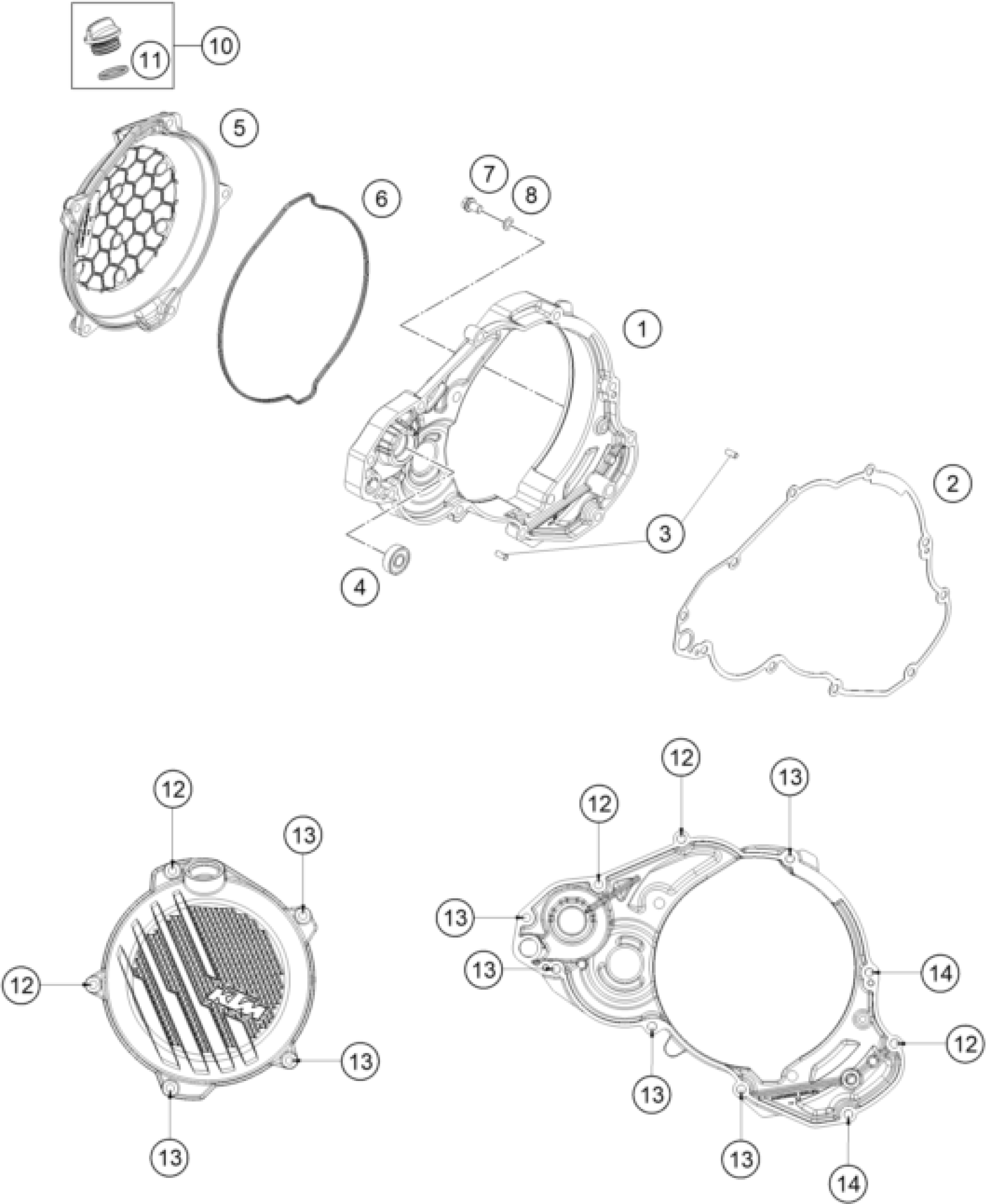

KTM 250 XC 2023 CLUTCH COVER Diagram

#

Description
Price

1

Clutch cover, inner, cmpl.

A44030001044

$109.48

2

Clutch cover gasket, inner

A44030025000

$12.89

3

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

4

Grooved ball bearing 608 2RS C

0625006087

$21.40

5

Clutch cover outside

A48030026000C1

$51.60

6

Clutch cover gasket external

A48030027000

$6.91

10

Oil filler cap cmpl. M24x3

79430020033

$8.03

11

O-RING 19,00X3,00 NBR

0770191015

$2.05

12

HH collar screw M6x60 TX30

0025060606

$3.08

13

HH collar screw M6x25 TX30

0025060256

$3.08

14

HH collar screw M6x40 TX30

0025060406

$3.08

7

HH collar screw M6x10 TX30

0025060106

$3.08

8

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05
