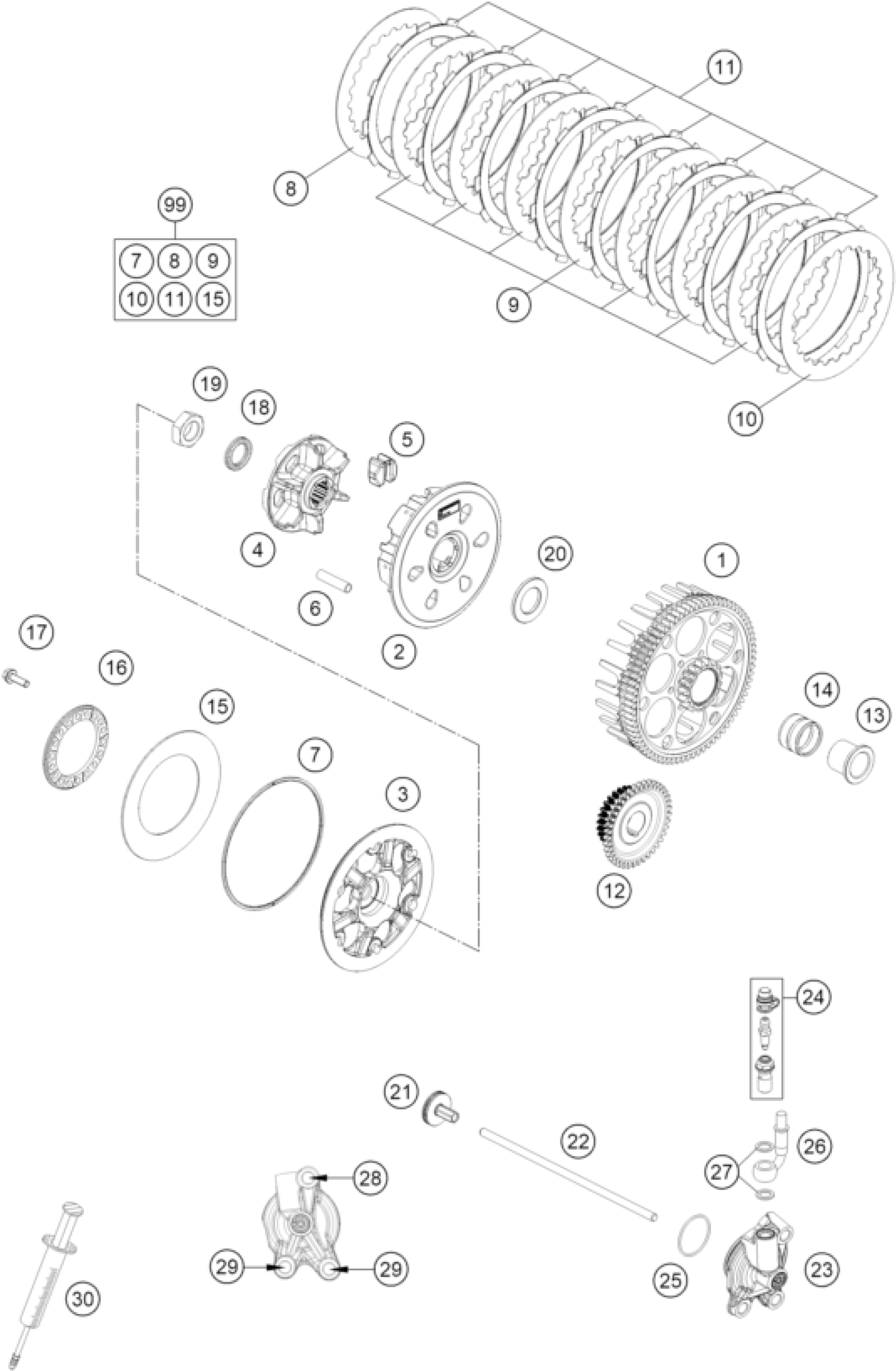

KTM 250 XC 2023 CLUTCH Diagram
#
Description
Price
1
Outer clutch hub
A44032001072
$191.01
2
Inner clutch hub
78132002400
$102.56
3
Clutch pressure plate
79432003100
$23.74
4
Clutch center
78132002211
$67.12
5
DAMPING RUBBER
78132025100
$4.11
6
DRIVING SLEEVE D=7,95 L=38
77232004000
$3.08
7
WASHER 112X118X1.5
78132013000
$10.84
8
INTERMEDIATE DISC 1MM 2002
59032010100
$9.81
9
INTERMEDIATE DISC 1,4MM 2002
59032010200
$10.93
10
INTERMEDIATE DISC 1MM
78932010000
$12.05
11
LINING DISC 1,95 MM
54832011100
$25.80
12
PRIMARY GEAR
55432024026
$140.62
13
Collar sleeve
A46032015000
$13.64
14
NEEDLE BEAR K 25X29X10
0405252910
$8.87
15
BELLEVILLE SPRING 71X115X1,5 I
78132005000
$31.97
16
Spring retainer
78132006200
$10.84
17
HH collar screw M5x16 TX30
0025050166
$2.05
18
Wedge lock washer 19.5x29x3.4
0252012002900
$3.08
19
Hex nut DIN0936-M18x1.5 right
0936181506
$3.08
20
WASHER 22 X 36,5 X 3
78932009000
$7.75
21
PRESSURE PIECE CPL.
78132057144
$30.75
22
Push rod
A48032054000
$7.56
23
OUTPUT CYLINDER CPL.
79232061044
$187.65
24
BLEEDER SCREW CPL.
79032064000
$30.38
25
O-ring 30x1.5 NBR 70
0770300015
$2.05
26
CLUTCH PIPE
79232063000
$112.38
27
SEAL RING CU DIN7603- 8X12X1
0603082121
$3.08
28
HH collar screw M6x25 TX30
0025060256
$3.08
29
HH collar screw M6x16 TX30
0025060166
$3.08
30
VENT INJEKTION HYDR. CLUTCH
50329050000
$75.26
99
CLUTCH KIT 250/300 13-15
54832011110
Unavailable
