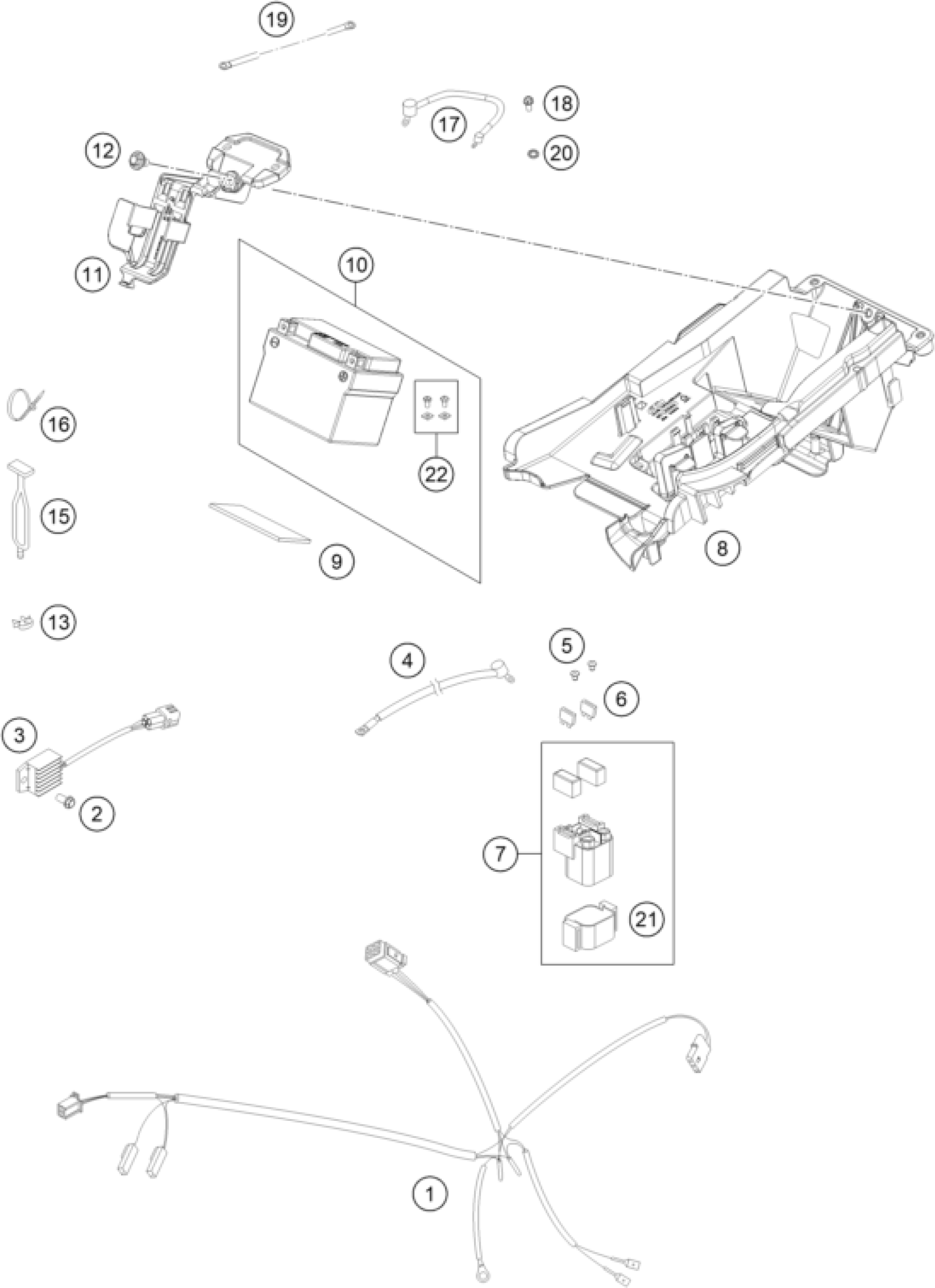

KTM 250 XC 2019 WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS RACING USA 05

59411075100

$71.05

2

COLLAR SCREW M6X13 ISA30

0026060136

$3.08

3

VOLTAGE REGULATOR 04

80011034000

$99.57

4

Starter cable

55711059000

$28.04

5

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

6

Plug-in fuse, big 10A

58011109110

$2.05

7

Starter reley 12V 99

58211058000

$72.64

8

Battery box

79111055000

$31.78

9

METAMOLL 90X45X3MM 03

59003001099

$2.05

10

battery 12V/24Wh

79111053000

$166.05

11

battery support

79111056000

$5.79

13

CABLE SUPPORT 07

61111041000

$1.49

15

RUBBER L=145MM

50303018000

$6.44

16

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

16

Cable tie 200/4.6mm black

44011076200

Unavailable

16

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

17

Batteriekabel

25111059050

$20.66

18

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

19

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

20

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

21

BRACKET RUBBER F.STARTRELAY 07

58211058050

$5.23

12

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

22

screw kit

79111053010

$4.11
