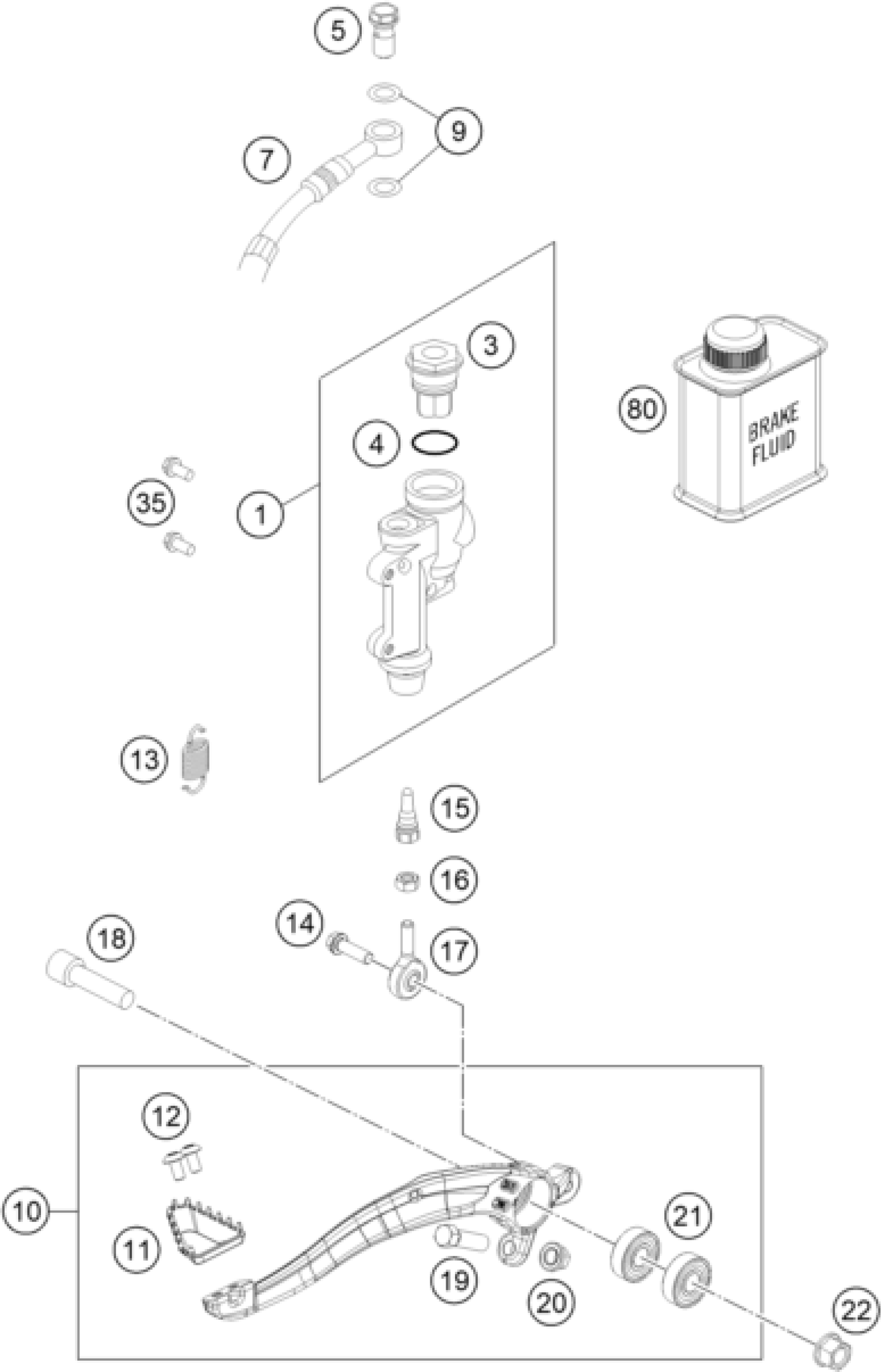

KTM 250 XC 2019 REAR BRAKE CONTROL Diagram

#

Description
Price

1

REAR BRAKE CYLINDER CPL.SX 09

77013060044

$306.11

3

REAR BRAKE CYL. COVER CPL. 04

54813062100

$45.06

4

FOOT-BRAKE CYL. GASKET SX 03

54813063000

$9.53

5

BANJO SCREW 08

54813020200

$9.90

7

Rear Brakehose

77213070300

$98.91

9

sealing ring DIN 7603 10x14x1

0603100141

$2.05

10

FOOT BRAKE LEVER CPL.

79413050044

$109.67

11

Step brake lever 16

79413051000

$29.82

12

SCREW TORX M5X10

78105081010

$2.05

13

RETURN SPRING F. BRAKE LEVER

79003062000

$5.23

14

HH collar screw M6x20 TX30

0025060206S

$2.05

15

PUSH ROD L=28MM 03

54813056000

$15.89

16

Hex. nut DIN 934 M6

0934060003

$1.49

17

Joint head CMP6

54813055100

$19.91

18

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

19

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

20

flanged nut M8 WS10

46030045000

$7.85

21

deep groove ball bearing SKF 6

0625060002

$12.33

22

COLLAR NUT M10 WS=13

54630044000

$1.49

35

HH collar screw M6x12 TX30

0025060126

$3.08

80

Brake fluid DOT5.1 0,25L

00062030000

$12.52
