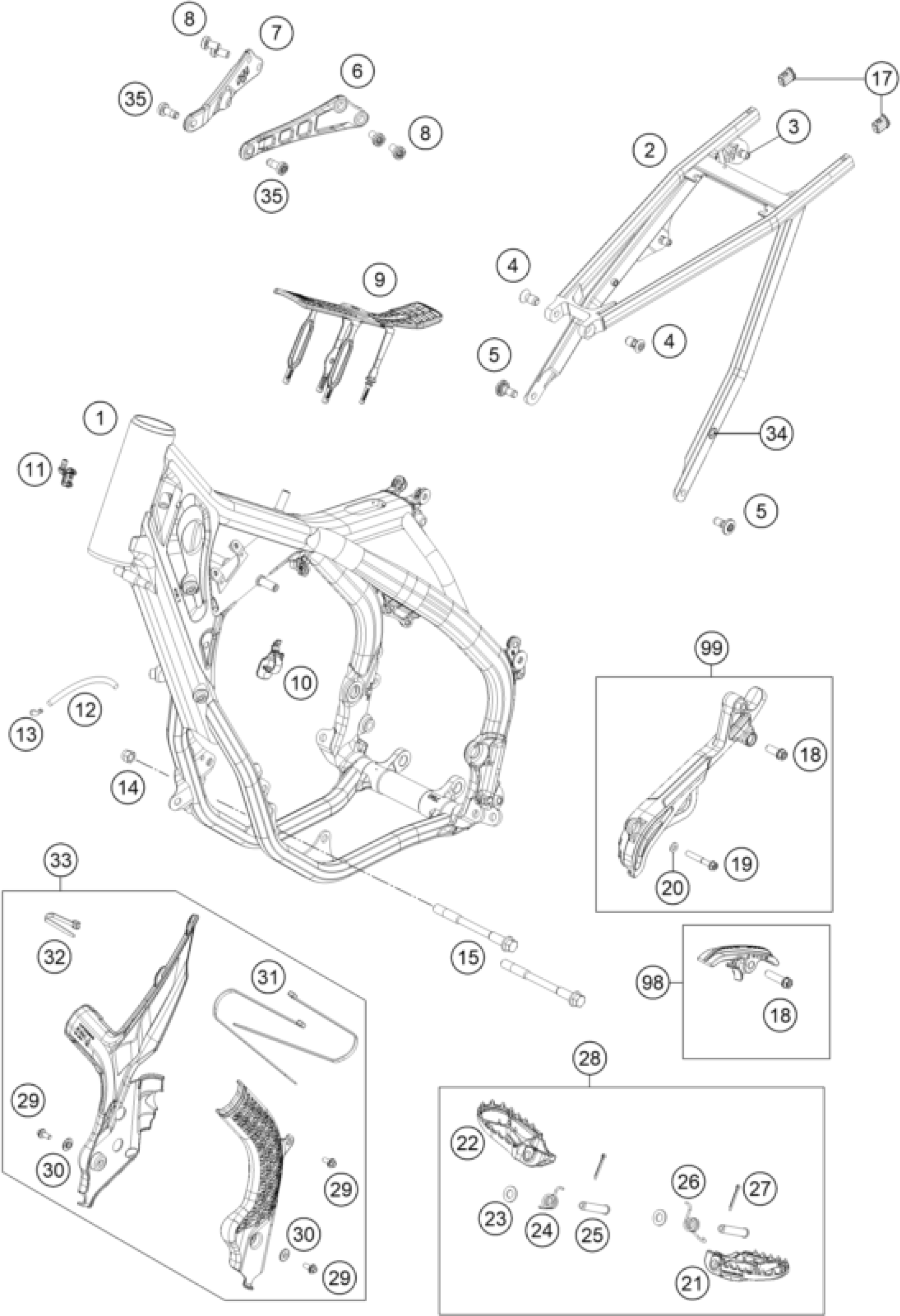

KTM 250 XC 2019 FRAME Diagram
#
Description
Price
1
Frame 555S4
5550300110033
$1,891.03
2
Subframe
79103002000
$201.03
3
BLIND RIVET NUT EM6-60LF/HX
77303139000
$4.11
4
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
$2.05
5
Special screw M8X18 TORX45 SL
79003003000
$3.08
6
Engine brace, left KTM 250 SX
5550301300001S
$56.75
7
Engine brace, right KTM 250 SX
5550301400001S
$56.18
8
AH-COLLAR SCREW M8X15 TORX45
0035080156S
$2.05
9
TANK REST RUBBER
79607012000
$10.09
10
wire holder le 19
79111093000
$1.49
11
wire holder / fuel ventilation
79107013010
$1.49
12
preformed hose 6x10 ECO
50430087000
Unavailable
13
ANGLE PIECE '97
50303089000
$5.23
14
SELF LOCKING NUT M10 CU WS=14
54310086100
$2.05
15
engine brac.scr. M10x115
77203014000
$8.97
18
HH collar screw M8x30
0025080306
$3.08
19
HH collar screw M6x40 TX30
0025060406
$3.08
20
WASHER DIN0125-A 6,4
0125060003
$1.49
21
FOOTREST L/S 2016
79003040000
$41.51
22
FOOTREST R/S 2016
79003041000
$41.51
23
washer DIN 125 A 10.5
0125100003
$2.05
24
FOOTREST SPRING R/S 2016
79003044000
$2.05
25
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
$12.43
26
FOOTREST SPRING L/S 2016
79003045000
$2.05
27
PIN DIN0094-3,2X25 STEEL
0094032253
$1.49
28
FOOT PEGS SET CPL. 2016
79003040033
$101.16
29
HH COLLAR SCREW M 5X12 WS=6
0014050123
$2.05
30
Bush f. frame protection 03
54803092060
$4.11
31
CABLE TIE 300/4,8MM BLACK
44011076305
$2.05
32
CABLE TIE 140/2,5MM BLACK
44011076140
$1.49
33
Frame protection set
7910309400030
$26.55
34
BLIND RIVET NUT M6 KNURLED
79003002080
$3.08
35
SHCS M8x20 TX45
0035080206S
$5.32
98
CHAIN SLIDING KIT BELOW CPL.16
79003053010
$17.85
99
SPROCKET COVER KIT
55403096010
$24.58
17
Rear frame bit
79103002010
$4.11
