Description

Price

1

Silencer SX

55505079000

$595.31

2

SCREW TORX M5X10

78105081010

$2.05

3

DUMMY RIVET 4,8X 8 NIRO

0011480800

$3.08

4

O-RING 74,00X1,50 FKM 75SH

0770740015

$4.11

5

End Cap cpl.

55505079060

$83.77

6

Damping material 210g

55505078210

$85.36

7

Manifold

55505007000

$585.30

8

exhaust rubber

55405057000

$16.07

9

O-RING 44,00X3,00 VITON

0770440030

$4.11

10

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

11

RANGE CHANGE METAL NUT M8

54603048000

$4.11

12

BUSHING 8.5x12x28x8.3

77805069000

$5.98

13

hose spring

55405058000

$3.08

14

HH collar screw M8x25

0025080256

$2.05

15

HH collar screw M6x30 TX30

0025060306

$3.08

16

Pair of washers M6 NORDLOCK

50233041000

$4.11

18

BUSHING 7.5x12x28x8.3 11

77205169000

$6.07

17

Damper gray

79105068000

$8.03

19

DAMP. COMPON. BLACK

77205068000

$6.54

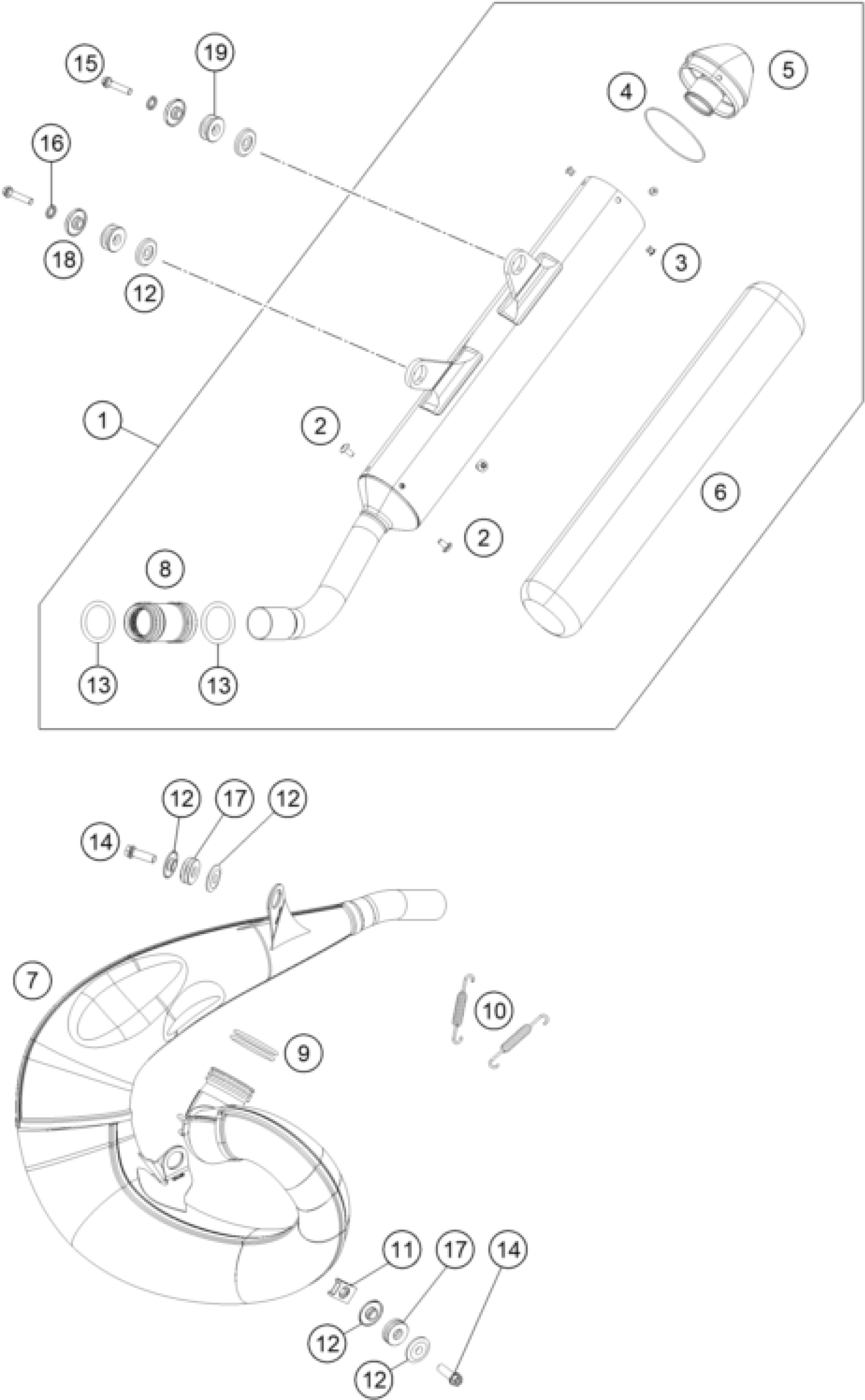

KTM 250 XC 2019 EXHAUST SYSTEM Diagram

Silencer SX

SCREW TORX M5X10

DUMMY RIVET 4,8X 8 NIRO

O-RING 74,00X1,50 FKM 75SH

End Cap cpl.

Damping material 210g

Manifold

exhaust rubber

O-RING 44,00X3,00 VITON

TEN.SPRING L=62MM EY.MOVEABLE

RANGE CHANGE METAL NUT M8

BUSHING 8.5x12x28x8.3

hose spring

HH collar screw M8x25

HH collar screw M6x30 TX30

Pair of washers M6 NORDLOCK

BUSHING 7.5x12x28x8.3 11

Damper gray

DAMP. COMPON. BLACK
