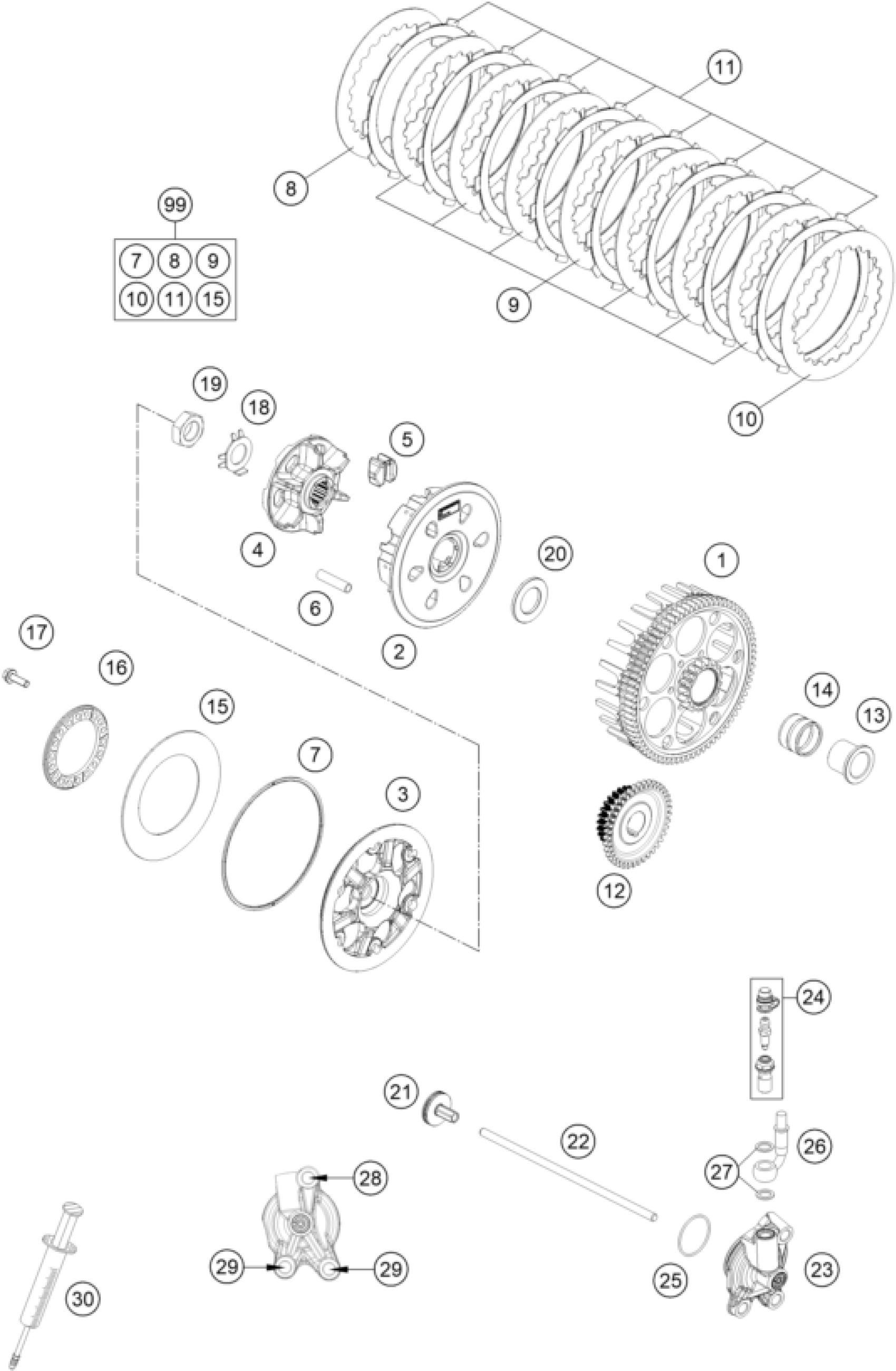

KTM 250 XC 2019 CLUTCH Diagram

#

Description
Price

1

CLUTCH BASKET EXC

79232201073

$268.80

2

CLUTCH HUB

78132002300

$134.72

3

CLUTCH PRESSURE CAP

79432003000

$23.74

4

HUB

78132002111

$134.72

5

DAMPING RUBBER

78132025100

$4.11

6

DRIVING SLEEVE D=7,95 L=38

77232004000

$3.08

7

WASHER 112X118X1.5

78132013000

$10.84

8

INTERMEDIATE DISC 1MM 2002

59032010100

$9.81

9

INTERMEDIATE DISC 1,4MM 2002

59032010200

$10.93

10

INTERMEDIATE DISC 1MM

78932010000

$12.05

11

LINING DISC 1,95 MM

54832011100

$25.80

12

PRIMARY GEAR

55432024026

$140.62

13

INNER RING

77232015000

$20.66

14

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

15

BELLEVILLE SPRING 71X115X1,5 I

78132005000

$31.97

16

SPRING RING

78132006100

$10.84

17

HH collar screw M5x16 TX30

0025050166

$2.05

18

TAB WASHER

78132018000

$5.88

19

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

20

WASHER 21,8 X 37 X 5,1

77232009000

$8.13

21

PRESSURE PIECE CPL. 08

78032057044

$26.08

22

PUSH ROD

79232054000

$18.41

23

OUTPUT CYLINDER CPL.

79232061044

$187.65

24

BLEEDER SCREW CPL.

79032064000

$30.38

25

O-ring 30x1.5 NBR 70

0770300015

$2.05

26

CLUTCH PIPE

79232063000

$112.38

27

SEAL RING CU DIN7603- 8X12X1

0603082121

$3.08

28

HH collar screw M6x25 TX30

0025060256

$3.08

29

HH collar screw M6x16 TX30

0025060166

$3.08

30

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

99

CLUTCH KIT 250/300 13-15

54832011110

Unavailable
