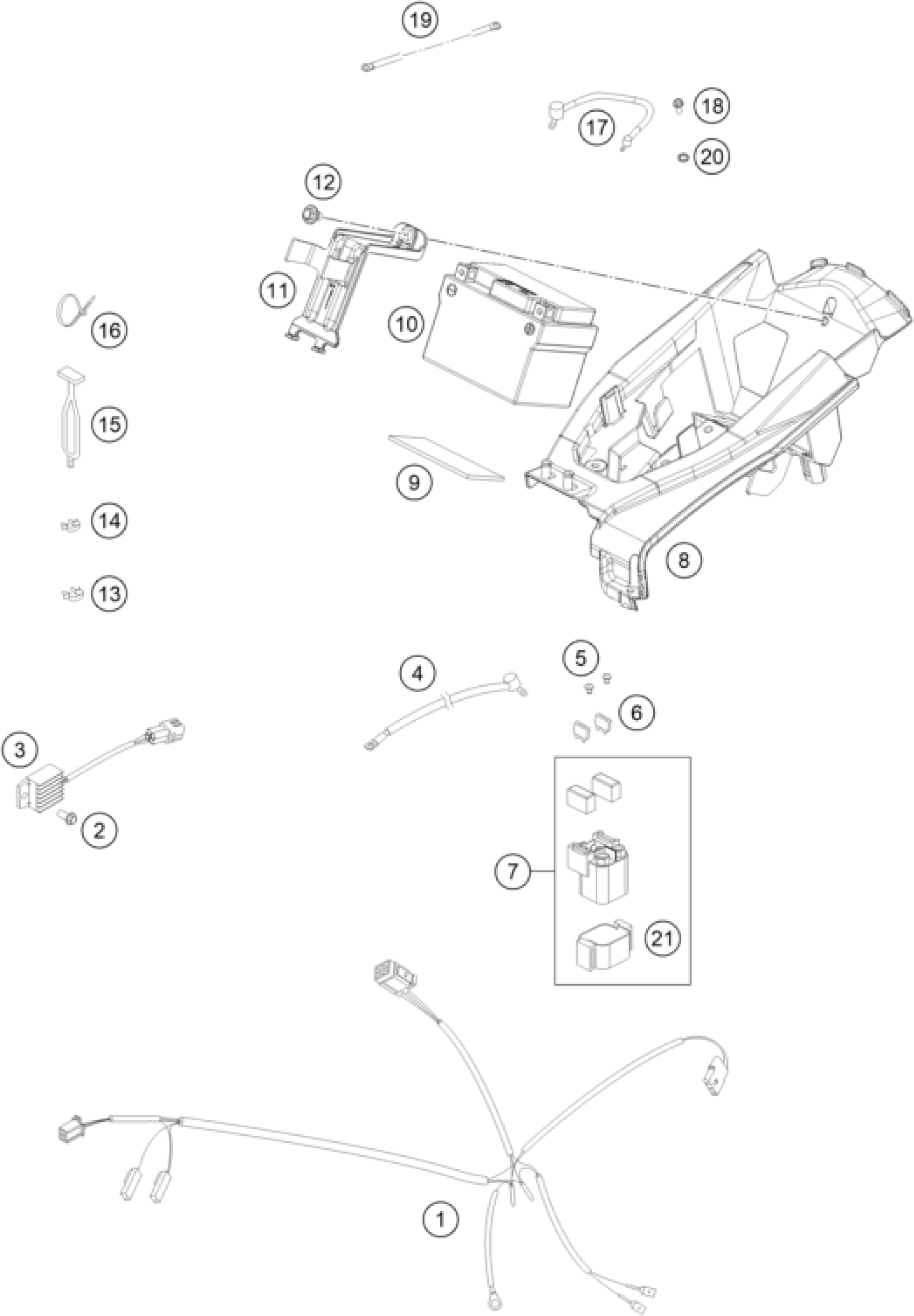

KTM 250 XC 2018 WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS RACING USA 05

59411075100

$71.05

2

COLLAR SCREW M6X13 ISA30

0026060136

$3.08

3

VOLTAGE REGULATOR 04

80011034000

$99.57

4

STARTERCABLE 1100MM 07

55111059000

$26.08

5

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

6

Plug-in fuse, big 10A

58011109110

$2.05

7

Starter reley 12V 99

58211058000

$72.64

8

BATTERY BOX

79011055100

$37.86

9

METAMOLL 90X45X3MM 03

59003001099

$2.05

10

LITHIUM ION BATTERY 5S

77311953000

$166.05

11

BATTERY BOX SUPPORT

79011056100

$3.08

12

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

13

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

14

WIRING HOLDER 16MM

57013072100

$1.49

15

RUBBER L=145MM

50303018000

$6.44

16

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

16

Cable tie 200/4.6mm black

44011076200

Unavailable

16

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

17

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42

18

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

19

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

20

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

21

BRACKET RUBBER F.STARTRELAY 07

58211058050

$5.23
