Description

Price

1

WATER PUMP COVER

55435052000

$26.55

2

DOWEL 9,8 X7X10

49030090100

$2.05

3

GASKET WATER PUMP COVER

55435053000

$10.65

4

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

5

WATER PUMP WHEEL CPL.

79235055044

$15.42

6

PREFORMED WASHER

50435049000

$4.11

7

SHAFT SEAL RING 8X24X7 A DUO

0760082472

$7.66

8

BALL BEARING 16002 C3

0625160020

$19.07

9

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

10

HH collar screw M6x60 TX30

0025060606

$3.08

11

HH collar screw M6x25 TX30

0025060256

$3.08

12

HH collar screw M6x20 TX30

0025060206

$3.08

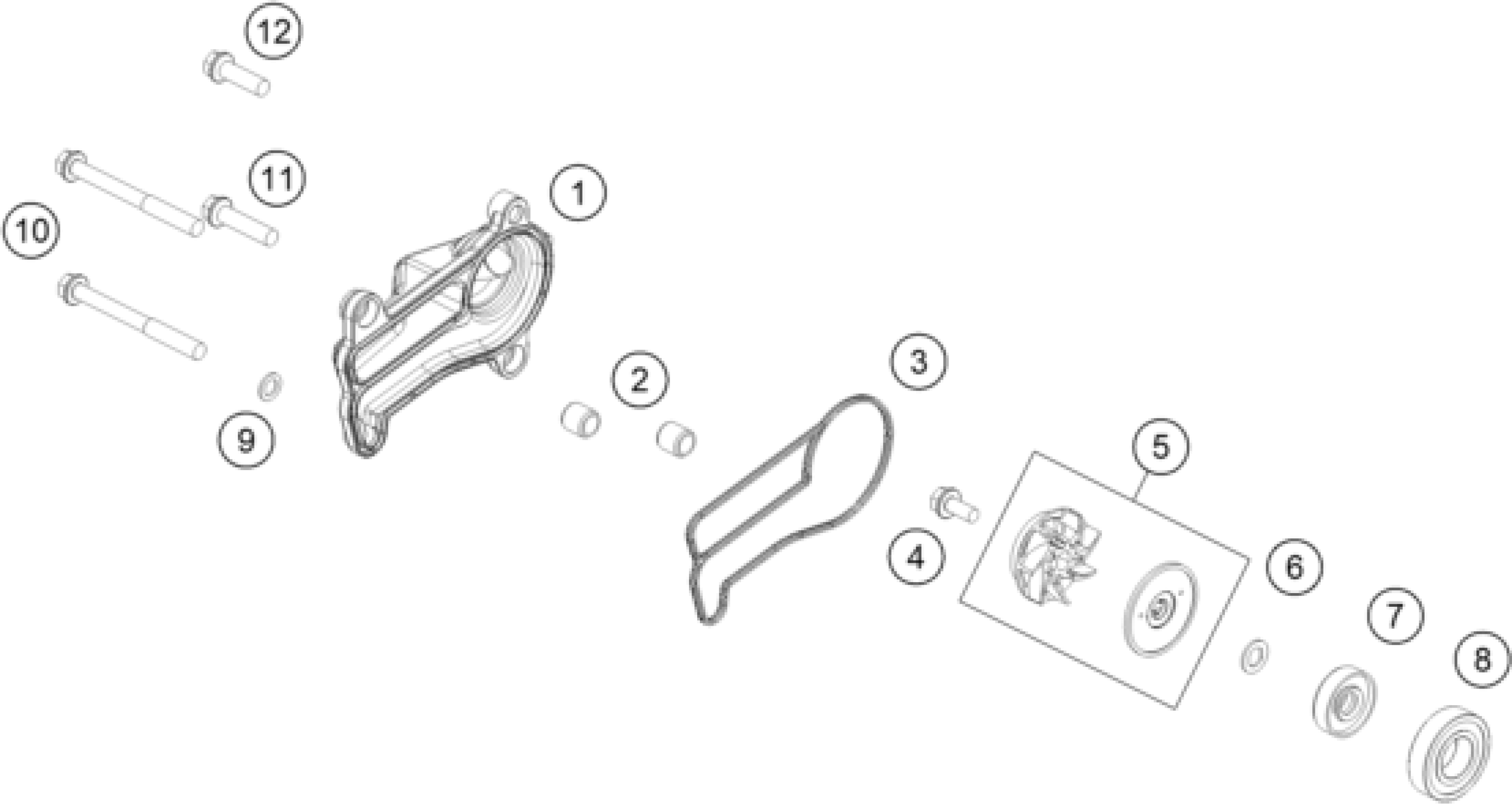

KTM 250 XC 2018 WATER PUMP Diagram

WATER PUMP COVER

DOWEL 9,8 X7X10

GASKET WATER PUMP COVER

HH COLLAR SCREW M 5X12 WS=6

WATER PUMP WHEEL CPL.

PREFORMED WASHER

SHAFT SEAL RING 8X24X7 A DUO

BALL BEARING 16002 C3

CU-SEAL RING DIN7603-6X10X1

HH collar screw M6x60 TX30

HH collar screw M6x25 TX30

HH collar screw M6x20 TX30
