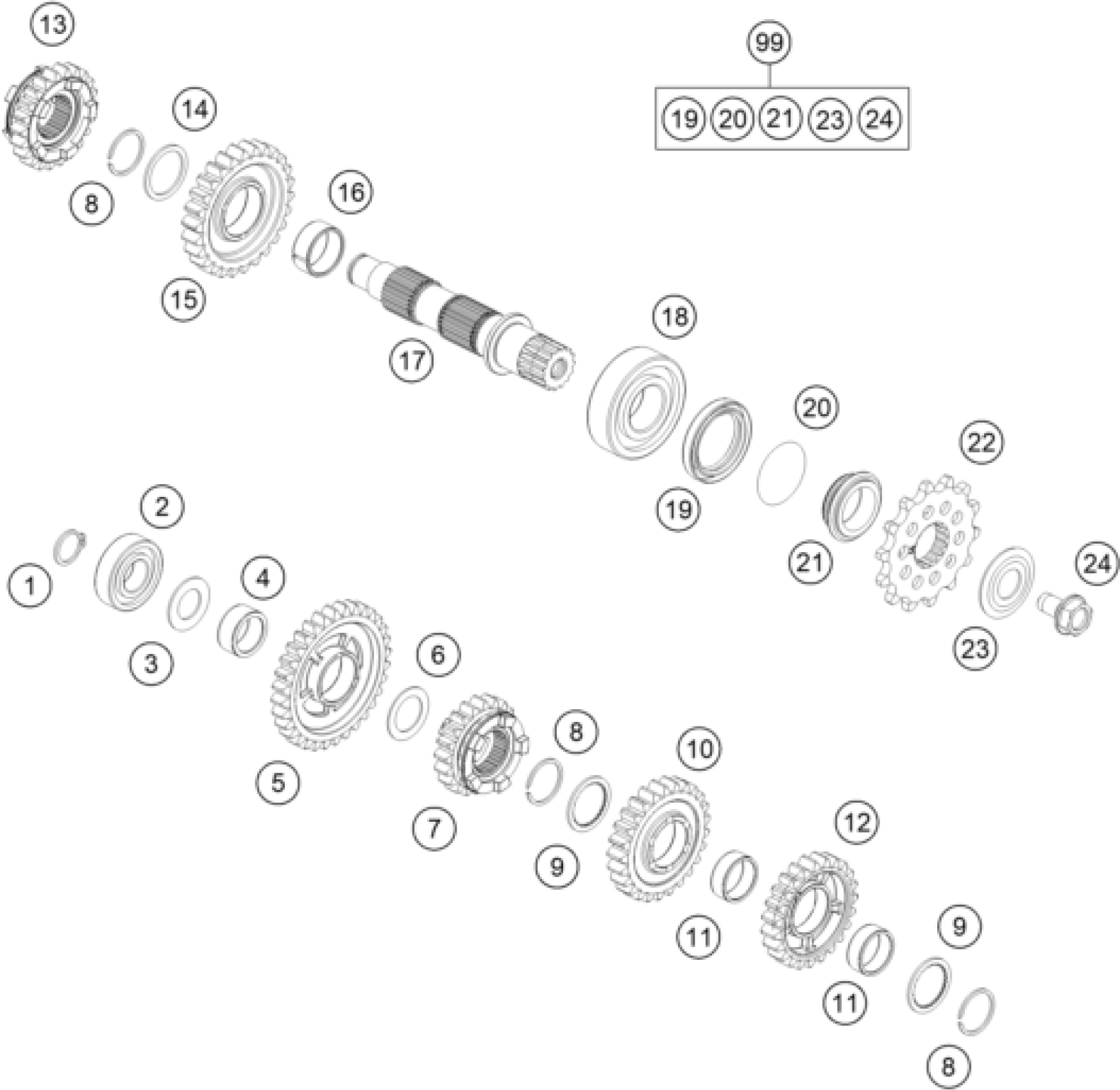

KTM 250 XC 2018 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

CIRCLIP DIN 0471-17X1, 5

0471170015

$1.49

2

BALL BEARING 6203 JR2 C3

0625062035

$14.48

3

STOP DISK 17,2X30X1,3

77233020000

$4.11

4

NEEDLE BEARING K 20X26X12

0405202612

$10.93

5

Idler Gear 1: Z=31

54833311100

$148.94

6

STOP DISC 20,2X30X1

54833080000

$3.08

7

Sliding gear 6 th, Z=20

54833216100

$271.52

8

CIRCLIP WS24

0417024000

$2.05

9

STOP DISC 25X0,8X30X30X7H

54833043000

$5.23

10

Idler gear 3th, Z=25

54833213100

$123.22

11

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

$11.68

12

Idler gear 4.G, Z=23

54833214100

$116.77

13

Sliding gear 5th Z=22

54833215100

$93.96

14

STOP DISC 25X31X1,5

54833044000

$5.23

15

idler gear 2, Z=25

54833312100

$84.80

16

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

$7.28

17

Output shaft

77233110100

$134.44

18

cylindrical roller bearing NJ2

49030023000

$74.42

19

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

$5.23

20

O-RING 25,12X1,78 NBR70

0770020220

$3.08

21

SPACER SLEEVE COUNTER

78133014000

$28.42

22

Sprocket 13-t

79233029013

$30.94

23

Spring washer 17.2X40X1.5

59033034000

$2.89

24

HH COLLAR SCREW M10X18 10.9

59033029000

$1.77

99

COUNTER SHAFT REP.KIT 2 STROKE

00050000983

Unavailable
