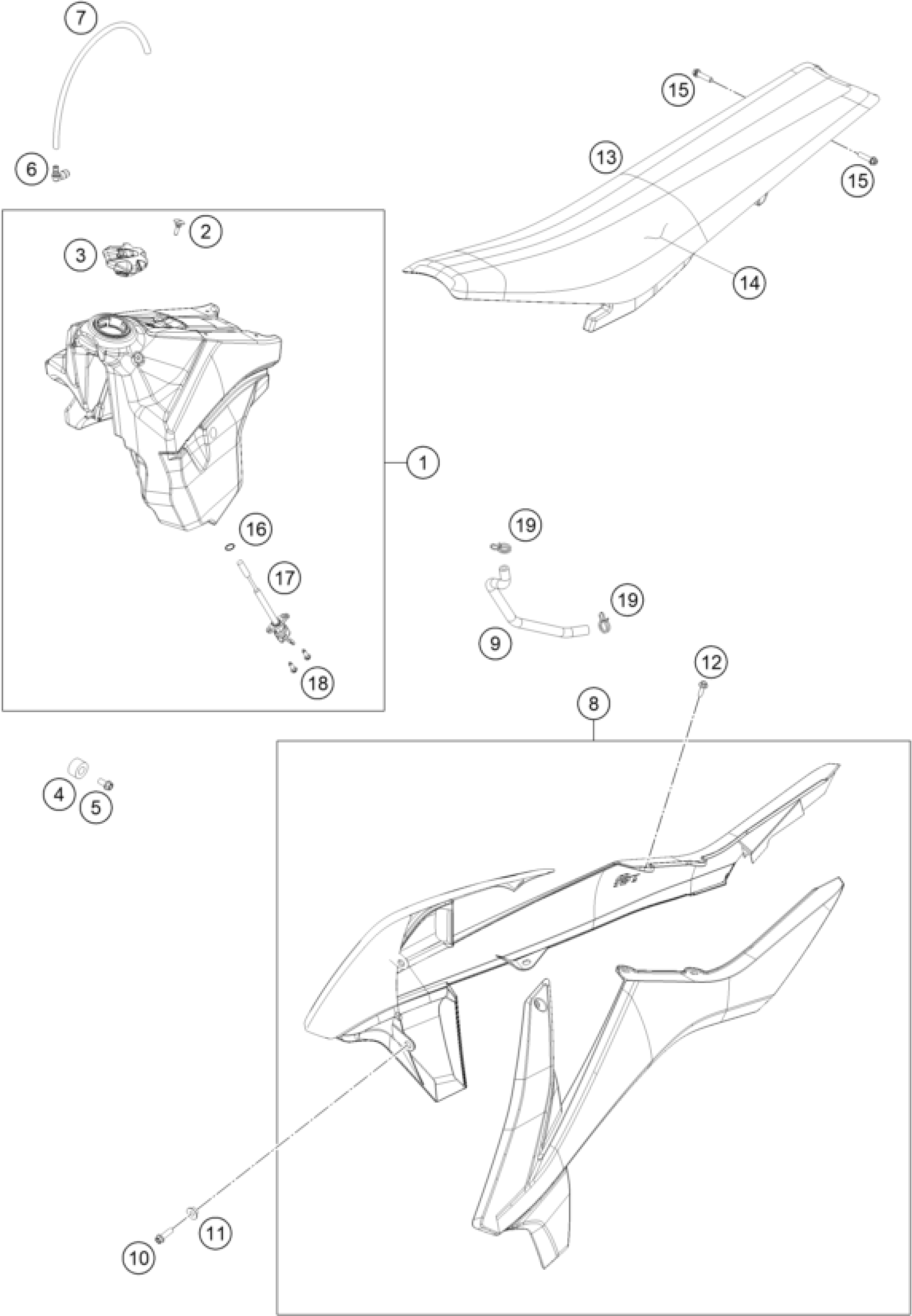

KTM 250 XC 2018 TANK, SEAT Diagram

FUEL TANK CPL. EXC 17

5560701303399

$299.28

SCREW SEAT FASTENING D=6X23/18

50307011000

$3.08

TANK PLUG CPL. 14

78107008044X4

$29.07

TANK ROLLER 12X26X12 '98

50307014000

$11.02

HH collar screw M6x12 TX30

0025060126

$3.08

ANGLE PIECE 90 DEGREE M10X1

51030022000

$5.23

PVC-hose 5.6X10X270MM

78007000270

$2.61

Spoiler Kit SX 2018

79008054000EBF

$227.29

FUEL PREFORMED HOSE

55407016000

$16.92

HH collar screw M6x16 TX30

0025060166

$3.08

BUSH 6X11X16X5 MM

79608052000

$1.96

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

SEAT SX 17

79007040400

$163.24

SEAT COVER SX 2017

79007040450

$70.12

HH collar screw M6x20 TX30

0025060206

$3.08

O-RING 11X2 VITON

0770110021

$2.05

GAS COCK ON/OFF/RES 03

54807004000

$32.72

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

CLAMP YDNAC 10128 12MM

58031005000

$3.08
