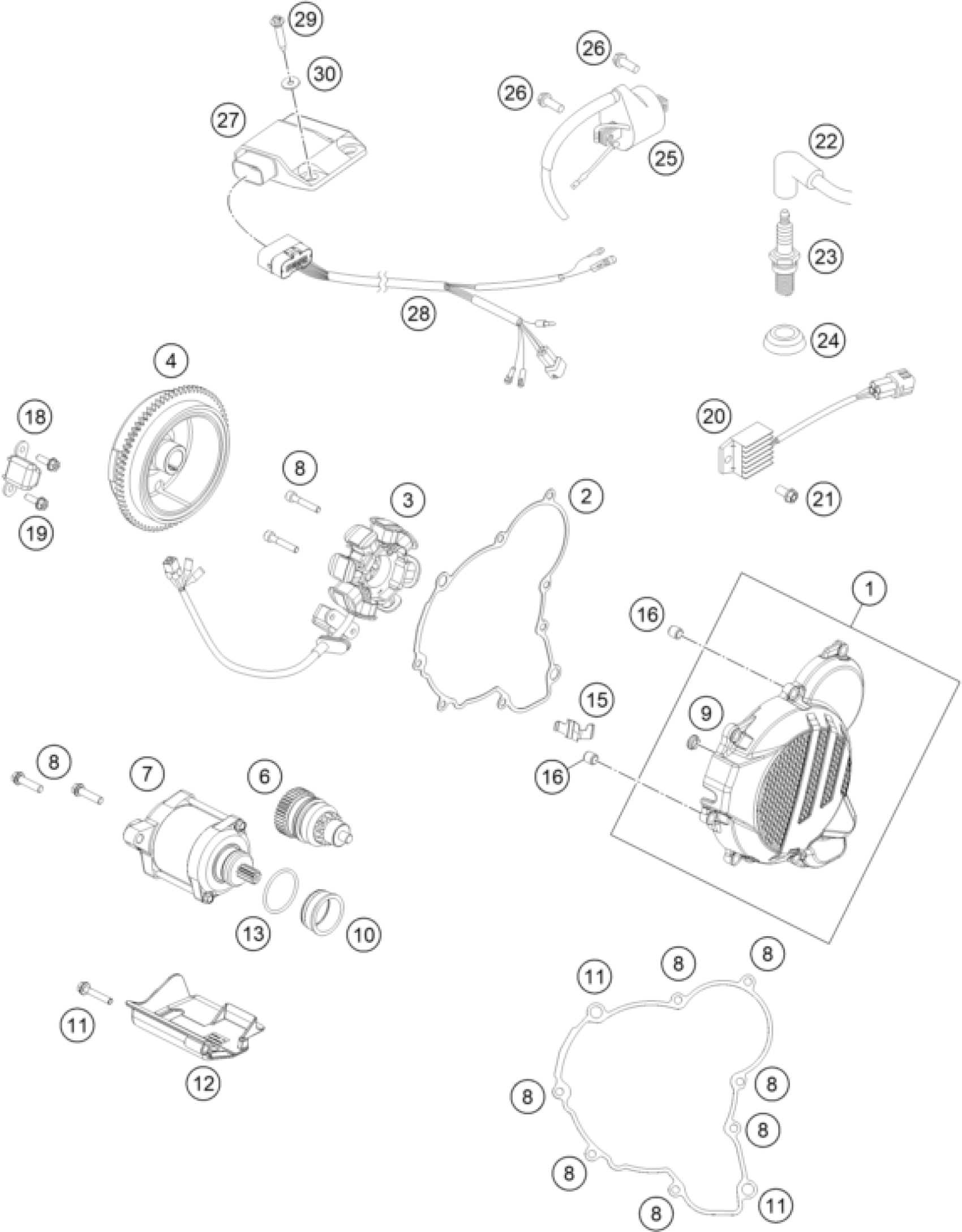

KTM 250 XC 2018 IGNITION SYSTEM Diagram

Ignition cover cpl.

5543020214415

$89.47

IGNITION COVER GASKET

55430040000

$14.58

STATOR

55439204000

$129.40

ROTOR

55439205000

$389.98

BENDIX

55440126000

$124.07

STARTER ENGINE

55440001000

$238.23

HH collar screw M6x25 TX30

0025060256

$3.08

COLLAR BUSHING

55140030100

$3.08

BEARING BUSH

55440012000

$12.33

HH collar screw M6x30 TX30

0025060306

$3.08

PROTECTION CAP STARTER ENGINE

55440040044

$16.73

O-RING 34,59X2,62

0770021260

$2.05

PLATE HARNESS MAGNETO

55439140120

$15.98

DOWEL 9,8 X7X10

49030090100

$2.05

pulse generator KOKUSAN 4K3-A/

59039034000

$89.28

HH collar screw M5x16 TX30

0025050166

$2.05

VOLTAGE REGULATOR 04

80011034000

$99.57

COLLAR SCREW M6X12 TX

0023060123

$2.05

SPARK PLUG CAP NGK REINFORC.04

47039090000

$31.44

SPARK PLUG

54739093000

$5.41

SEALING CUP FOR SPARK PLUG

50231012000

$4.11

IGNITIONCOIL ''IG5128''

59039006000

$66.19

COLLAR SCREW M6X18 ISA30

0026060186

$1.49

Dash board box 250 XC 18

55439031300

$271.52

HARNESS CDI BOX 2T 2017

55439032000

$56.93

Special screw K60X30 WS=6

0017060305

$2.05

washer DIN 9021 A - 5.3

0021050003

$1.49
