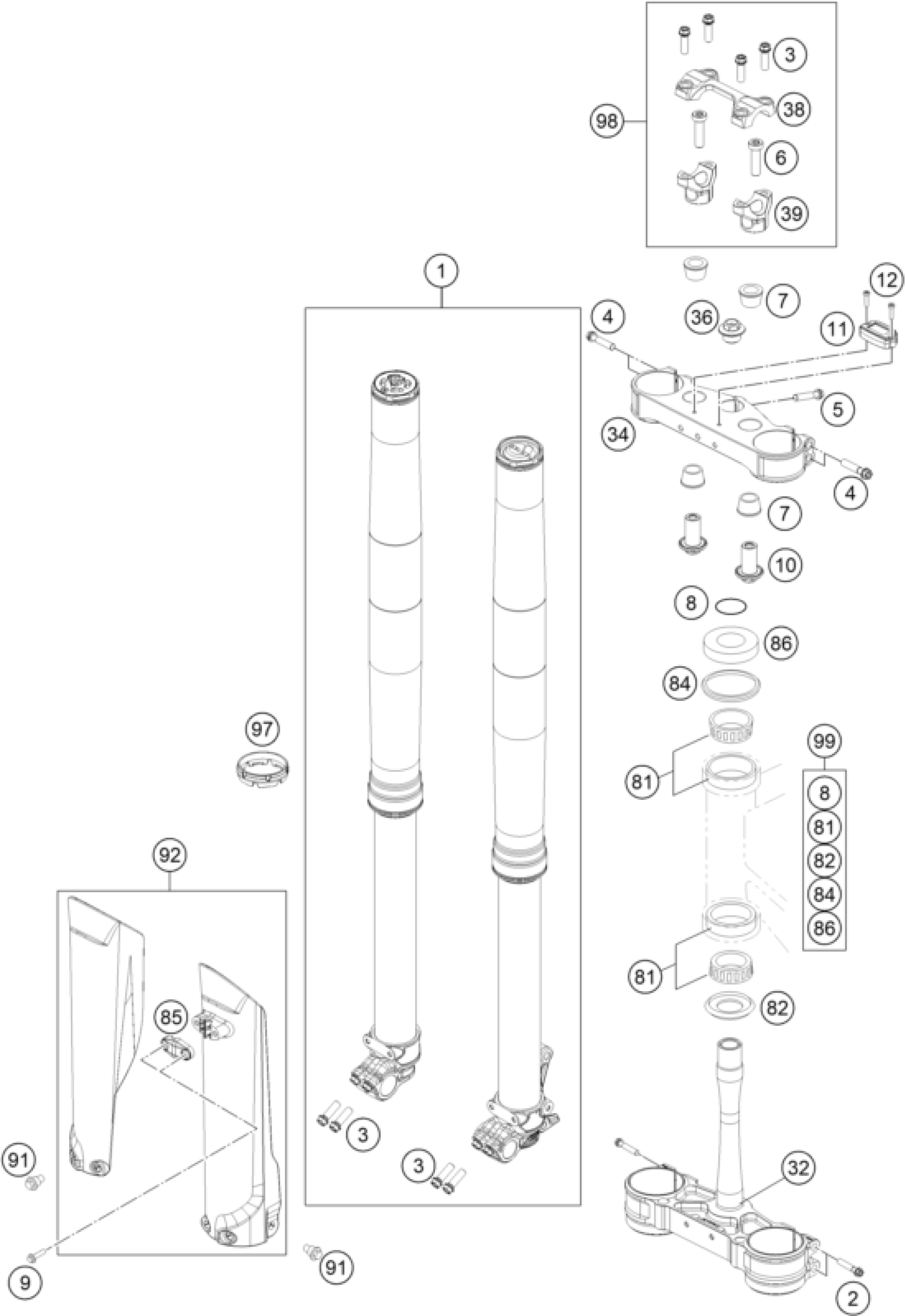

KTM 250 XC 2018 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork 250/300 XC 18

34188R7301

$2,406.46

2

HH collar screw M8x50 TX40

0025080506

$3.08

3

HH collar screw M8x25

0025080256

$2.05

4

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

5

HH COLLAR SCREW M8X25 WS=10

0015080256S

$3.08

6

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

7

RUBBER BUSH

83001040000

$5.23

8

O-RING 25X3,55 NBR70 05

0770025035

$1.49

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

10

HANDLEBAR SUPPORT LOWER PART

79001037034

$60.95

32

LOWER TRIPLE CLAMP CPL. 16

7900103202230

$420.46

11

HOUR METER

78112020050

$56.09

34

UPPER TRIPLE CLAMP X=22MM 2017

7900113402230

$275.82

12

AH SCREW DIN0912-M 4X16

0912040163

$2.05

36

AXLESCREW M20X1.5 SW17

70009082000

$9.44

38

HANDLEBAR CLAMP 28MM

79001038000

$69.37

39

HANDLEBAR SUPPORT D28MM-H36MM

79001039136

$32.44

81

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

82

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

84

STEARING HEAD GASKET TOP

54601184000

$7.10

85

CLAMP BRAKE HOSE

7770108510028

$5.23

86

STEERING HEAD COVER

78101086000

$6.07

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

Fork Protection SX 2018

7770109410028F

$43.28

97

Fork protection ring 62,1mm

48600698

$9.34

98

HANDLEBAR SUPPORT KIT D28/H36

00050000929

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
