Description

Price

1

AIR BOX BOTTOM

7900600100028

$29.91

2

AIR FILTER BOX COVER RIGHT

7900600400028

$17.84

3

AIR FILTER BOX COVER LEFT

7900600300028

$22.94

4

FILTERBOX SIDE

7900600700028

$15.97

5

FILTER BOX FRONT PART

7900600101028

$17.57

6

HH collar screw M6x20 TX30

0025060206

$3.08

7

COLLAR BUSH. F.REAR FENDER 07

77308013010

$5.23

8

SPECIAL SCREW M6X15X3

83008000015

$3.08

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

10

chain slider bushing

77304066050

$1.49

12

HOSE CLAMP 50-70MM

51006027000

$6.07

13

AIRBOX RUBBER

50406026000

$72.92

14

FILTER MOUNTING BRACKET

79006017000

$2.05

15

AIR FILTER SUPPORT

50406016000

$18.60

16

AIR FILTER

79006015000

$32.12

17

HH collar screw M6x12 TX30

0025060126

$3.08

18

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

19

quick release rubber grommet

47106003160

$4.11

99

SPLASH PROTECTOR KIT

79006010010

Unavailable

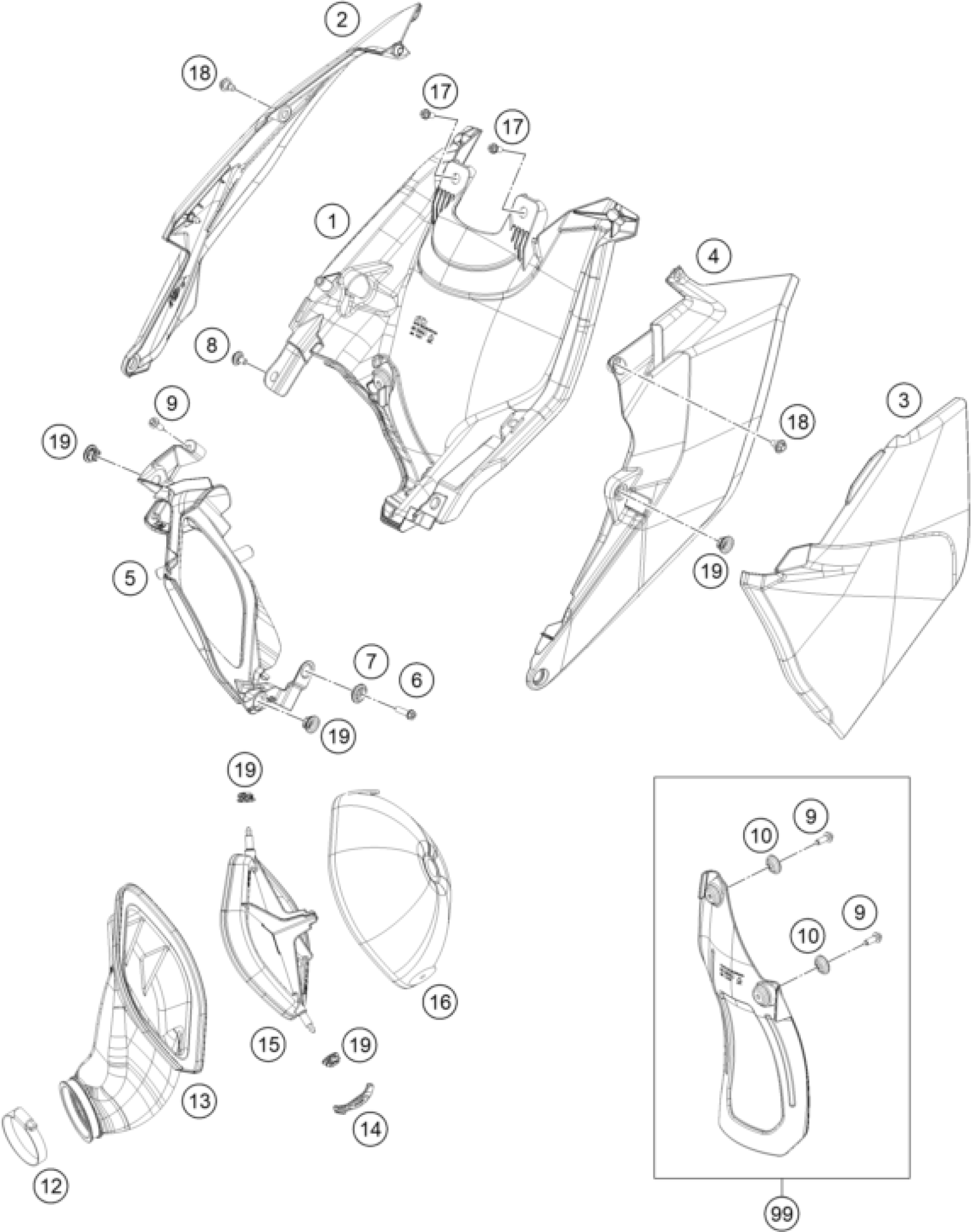

KTM 250 XC 2018 AIR FILTER Diagram

AIR BOX BOTTOM

AIR FILTER BOX COVER RIGHT

AIR FILTER BOX COVER LEFT

FILTERBOX SIDE

FILTER BOX FRONT PART

HH collar screw M6x20 TX30

COLLAR BUSH. F.REAR FENDER 07

SPECIAL SCREW M6X15X3

SCREW F. PLASTIC K60X20AL SW6

chain slider bushing

HOSE CLAMP 50-70MM

AIRBOX RUBBER

FILTER MOUNTING BRACKET

AIR FILTER SUPPORT

AIR FILTER

HH collar screw M6x12 TX30

SPECIAL SCREW M6X12,5 WS=8

quick release rubber grommet

SPLASH PROTECTOR KIT
