Description

Price

1

KICKSTARTER CPL.

50433070044

$127.81

3

WASHER 8MM GALVANIZED

54633037000

$6.07

4

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

5

KICK STARTER SPRING

50433054100

$5.23

6

KICK STARTER SHAFT

79233050000

$88.91

7

KICK STARTER WHEEL 27Z

79233051027

$101.81

8

NEEDLE BEAR K 25X29X10

0405252910

$8.87

9

STOP DISC 25X31X1,5

54833044000

$5.23

10

CIRCLIP SW25

0417025000

$3.08

11

KICK STARTER RATCHET

50433052000

$51.79

12

RATCHET GEAR SPRING 1,2 MM

58033028000

$2.05

13

HH collar screw M6x20 TX30

0025060206

$3.08

14

BUMP PART

59033069000

$13.27

15

CAROBRONZE BUSH

79433053050

$7.14

16

KICK STARTER IDLER 22Z

79233053022

$75.17

17

STOP DISC 6X26X1,5

79240017000

$3.08

18

HH collar screw M6x12 TX30

0025060126

$3.08

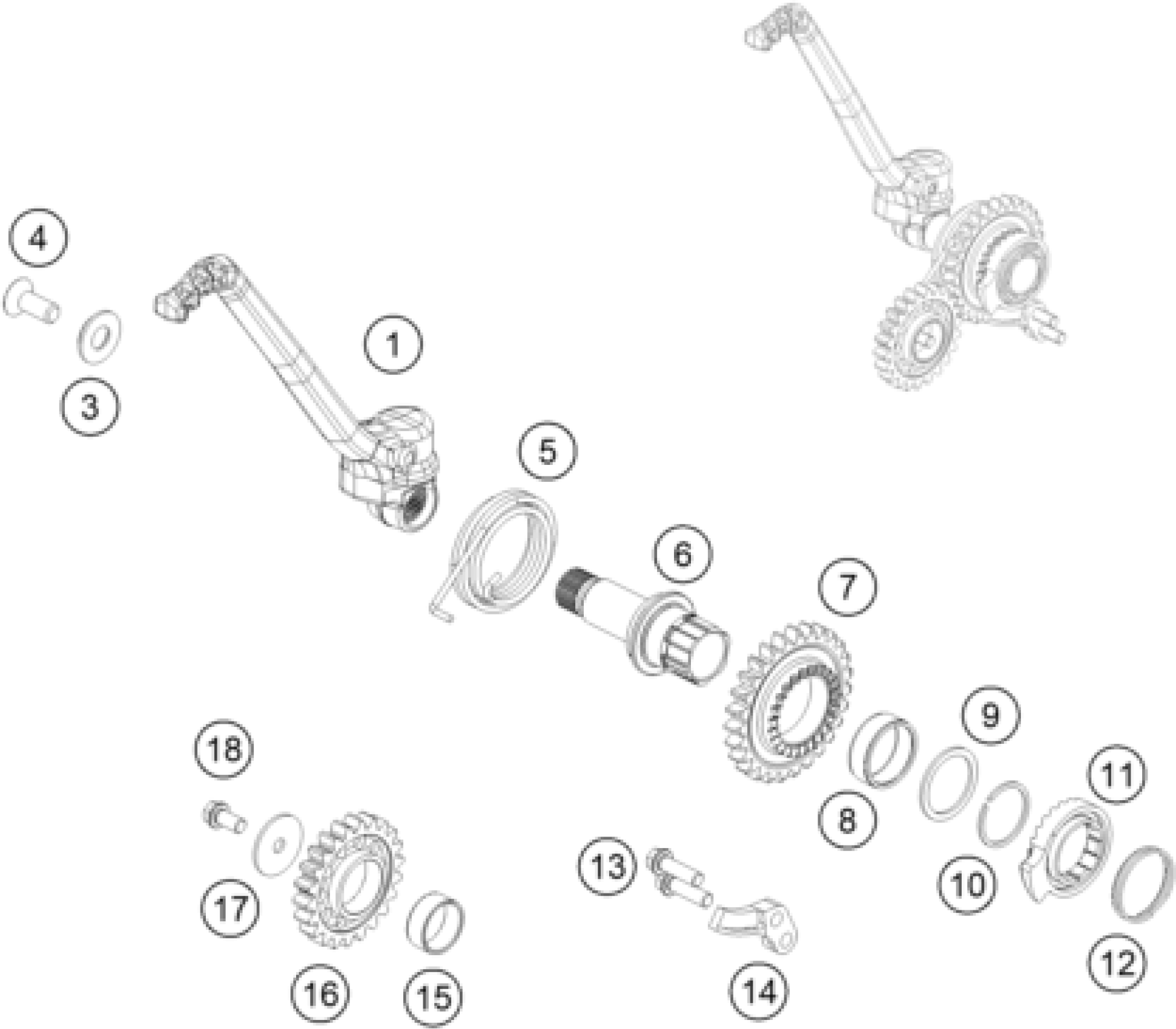

KTM 250 XC 2017 KICK STARTER Diagram

KICKSTARTER CPL.

WASHER 8MM GALVANIZED

FLAT HEAD SCREW M. ISA45 M8X20

KICK STARTER SPRING

KICK STARTER SHAFT

KICK STARTER WHEEL 27Z

NEEDLE BEAR K 25X29X10

STOP DISC 25X31X1,5

CIRCLIP SW25

KICK STARTER RATCHET

RATCHET GEAR SPRING 1,2 MM

HH collar screw M6x20 TX30

BUMP PART

CAROBRONZE BUSH

KICK STARTER IDLER 22Z

STOP DISC 6X26X1,5

HH collar screw M6x12 TX30
