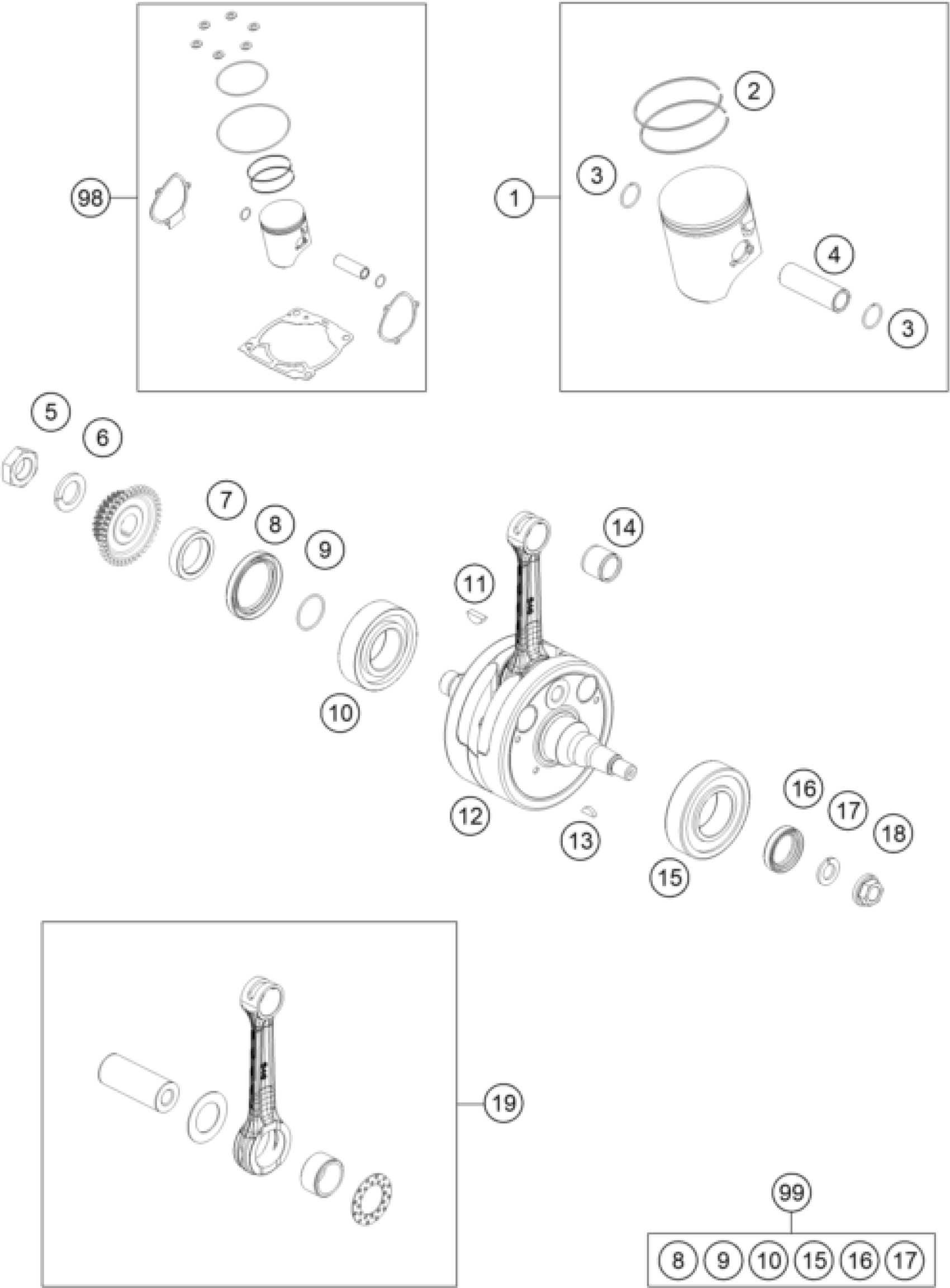

KTM 250 XC 2017 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

PISTON I 250 2011

54830007300 I

$228.13

1

PISTON II 250 2011

54830007300 II

$228.13

2

TRAPEZOID RING 250 66,4 MM

54830232000

$47.58

3

WIRE LOCK RING C18X1,5

54030074000

$3.08

4

PISTON PIN

54830233000

$29.16

5

HEX.NUT L/SH M18X1,5

54630029000

$10.65

6

LOCK WASHER VSK 18

58132072000

$2.05

7

DISTANCE SLEEVE

55430016000

$16.92

8

SHAFT SEAL RING 38X52X7BTSL

0760385273

$22.06

9

O-RING 25,00X1,50 NBR 70

0770250015

$1.49

10

BALL BEARING 32X65X17 NTN

0625623204

$60.95

11

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05

12

CRANKSHAFT EXC

55430118100

$629.25

13

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

14

NEEDLE BEARING KBK 18X22X20

54430034000

$20.94

15

CYLIND.ROL.BEAR. NJ207ET2XCS42

56530123200

$107.05

16

SHAFT SEAL RING 25X35X7 BTSL

0760253570

$16.79

17

LOCKING RING VSK 12

50230029012

$2.05

18

COLLAR NUT M12X1 R/S

49030021000

$2.05

19

CON.ROD REP.SET 250/300

54830015244

Unavailable

99

CRANKSHAF REP. KIT 250-300

00050002301

Unavailable

98

PISTON KIT GR.I 250 MX/Enduro

00050000243

Unavailable

98

PISTON KIT GR.II 250 MX/Enduro

00050000244

Unavailable
