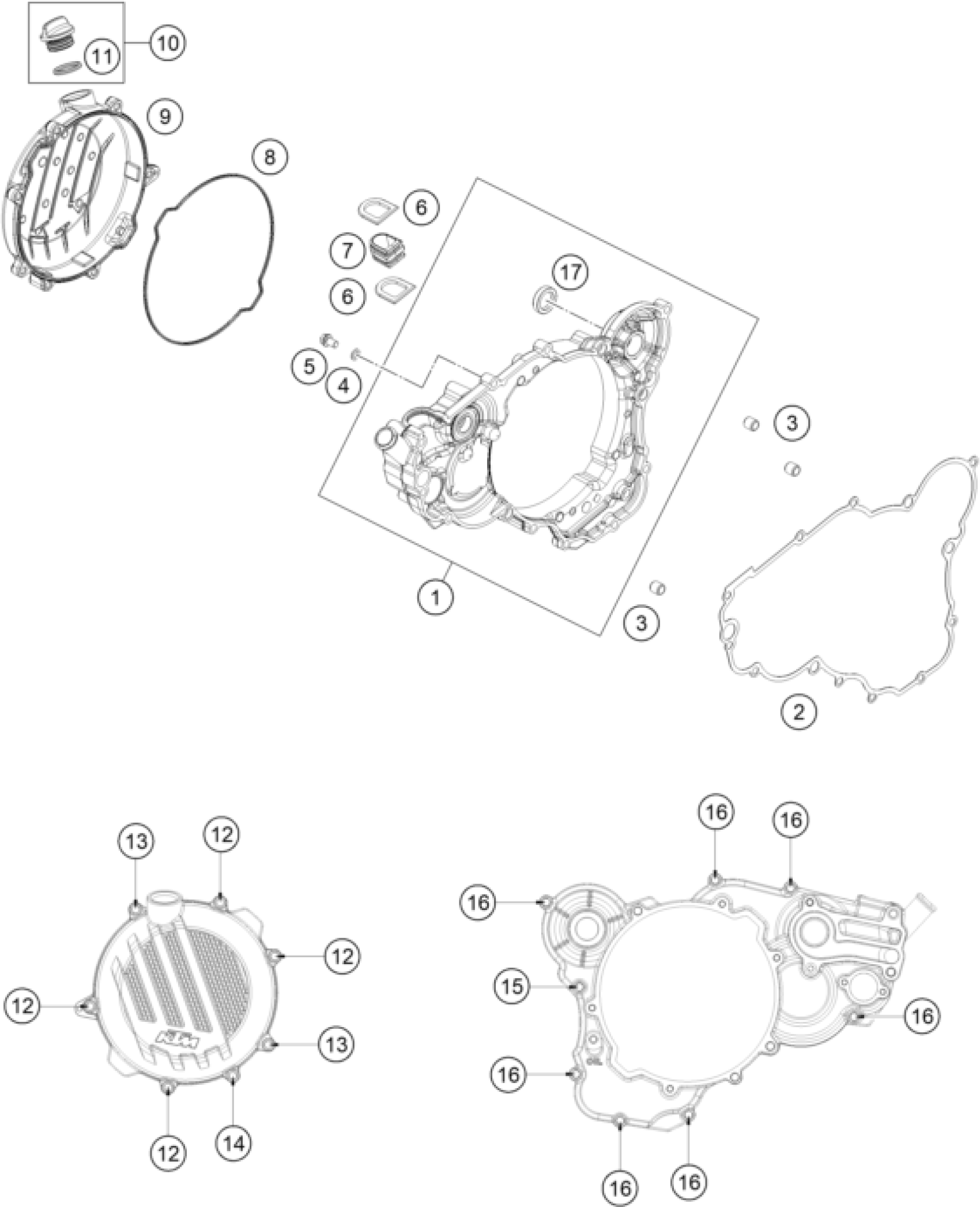

KTM 250 XC 2017 CLUTCH COVER Diagram

#

Description
Price

2

CLUTCH COVER GASKET INSIDE

55430025100

$22.71

3

DOWEL 9,8 X7X10

49030090100

$2.05

4

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

5

HH collar screw M6x10 TX30

0025060106

$3.08

6

SEALING ELEMENT BOTTOM

54637107000

$7.38

7

SEALING CARRIER 07

54837091100

$3.08

8

CLUTCH COVER GASKET OUTSIDE

55430027000

$13.46

10

Oil filler cap cmpl. M24x3

79430020033

$8.03

11

O-RING 19,00X3,00 NBR

0770191015

$2.05

12

HH collar screw M6x20 TX30

0025060206

$3.08

9

CLUTCH COVER OUTSIDE

5543002600015

$50.10

13

HH collar screw M6x60 TX30

0025060606

$3.08

14

HH collar screw M6x55 TX30

0025060556

$3.08

15

HH collar screw M6x30 TX30

0025060306

$3.08

16

HH collar screw M6x25 TX30

0025060256

$3.08

1

INNER CLUTCH COVER CPL. 17

55430001044

$145.76

17

SHAFT SEAL RING 19X30X7 B

0760193070

$5.60
