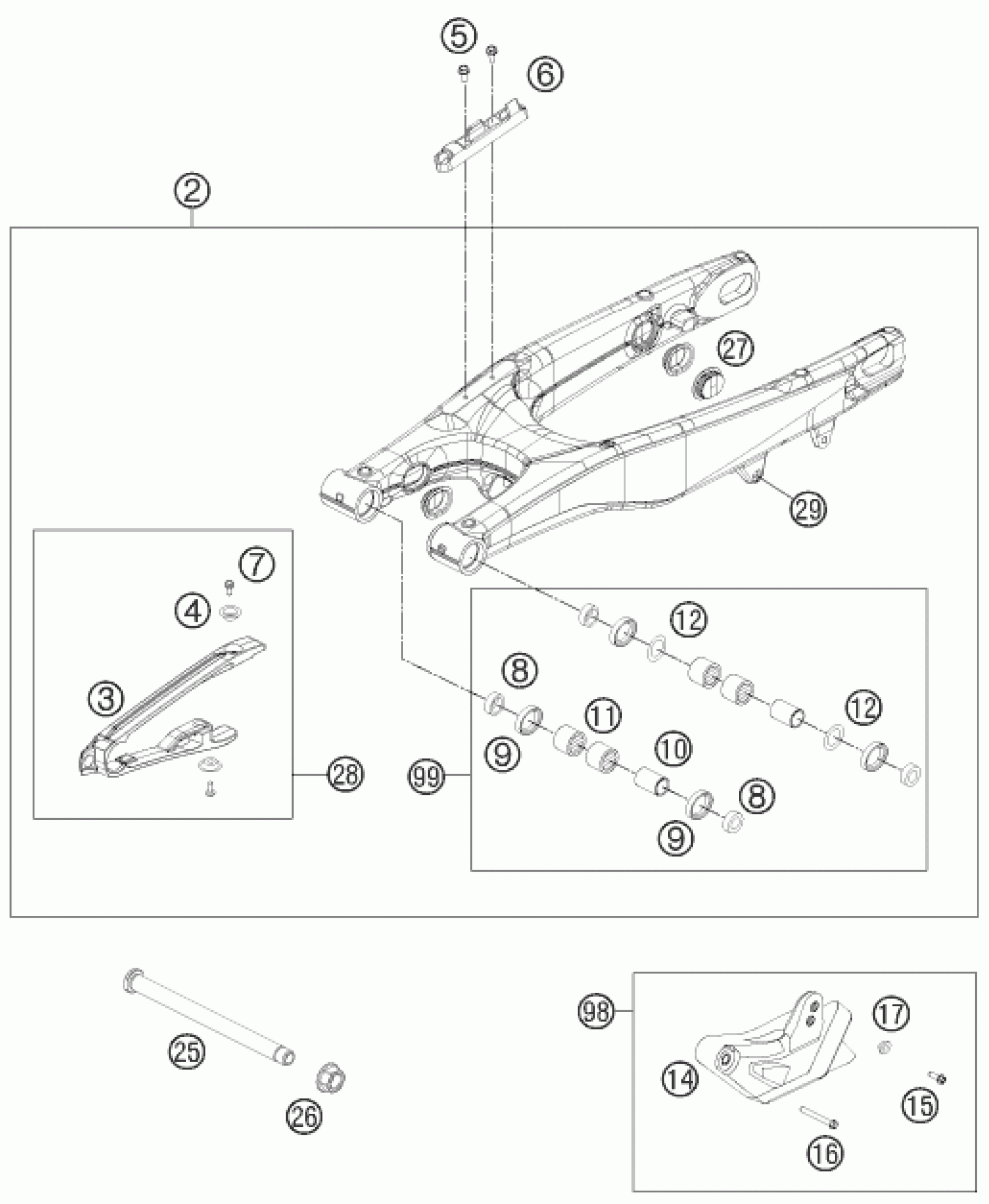

KTM 250 XC 2015 SWING ARM Diagram
#
Description
Price
2
SWINGARM CPL. 2014
77704030144
$965.29
3
CHAIN SLIDING PROTECTION
77204066100
$22.34
4
chain slider bushing
77304066050
$1.49
5
EJOT SPIRAL SCREW SF M5X10-K
0009050106
$2.05
6
BRAKE LINE GUIDE 08
76504042000
$5.23
7
SPECIAL SCREW M6X13 WS=8 10.9
59009062013
$2.05
8
Bucket f. shaft seal ring 03
54804034000
$5.23
9
radial shaft seal 25x32x7
0760253270
$6.63
10
BUSHING SLEEVE F. SWING ARM 03
54804032000
$10.93
11
NEEDLE BEARING HK 2216
58033097000
$14.02
12
STOP DISK 22,2X31,7X1
54603036000
$3.08
14
CHAIN GUIDE REAR CPL. SX 2013
77704070000
$56.56
15
SPECIAL SCREW M6X19 WS=8 10.9
59009062019
$2.05
16
HH COLLAR SCREW M6X45 TX30
0025060456
$2.05
17
BUSH. F. CHAIN FAIL. PROT. 07
77304070130
$3.08
25
SWINGARM BOLT M16X1,5 07
77304037000
$56.65
26
Nut with flange M16X1,5 WS=19
54804038000
$2.05
27
Locking cap swingarm
77204041000
$4.11
28
Chain guard cpl.
77204066010
$23.37
29
PRESS IN NUT M6 STEEL ZINC
54603055051
$2.05
98
CHAIN GUIDE KIT REAR SX-F 14
77704070210
$54.88
99
SWINGARM REPAIR KIT 05-15
54804230210
Unavailable
