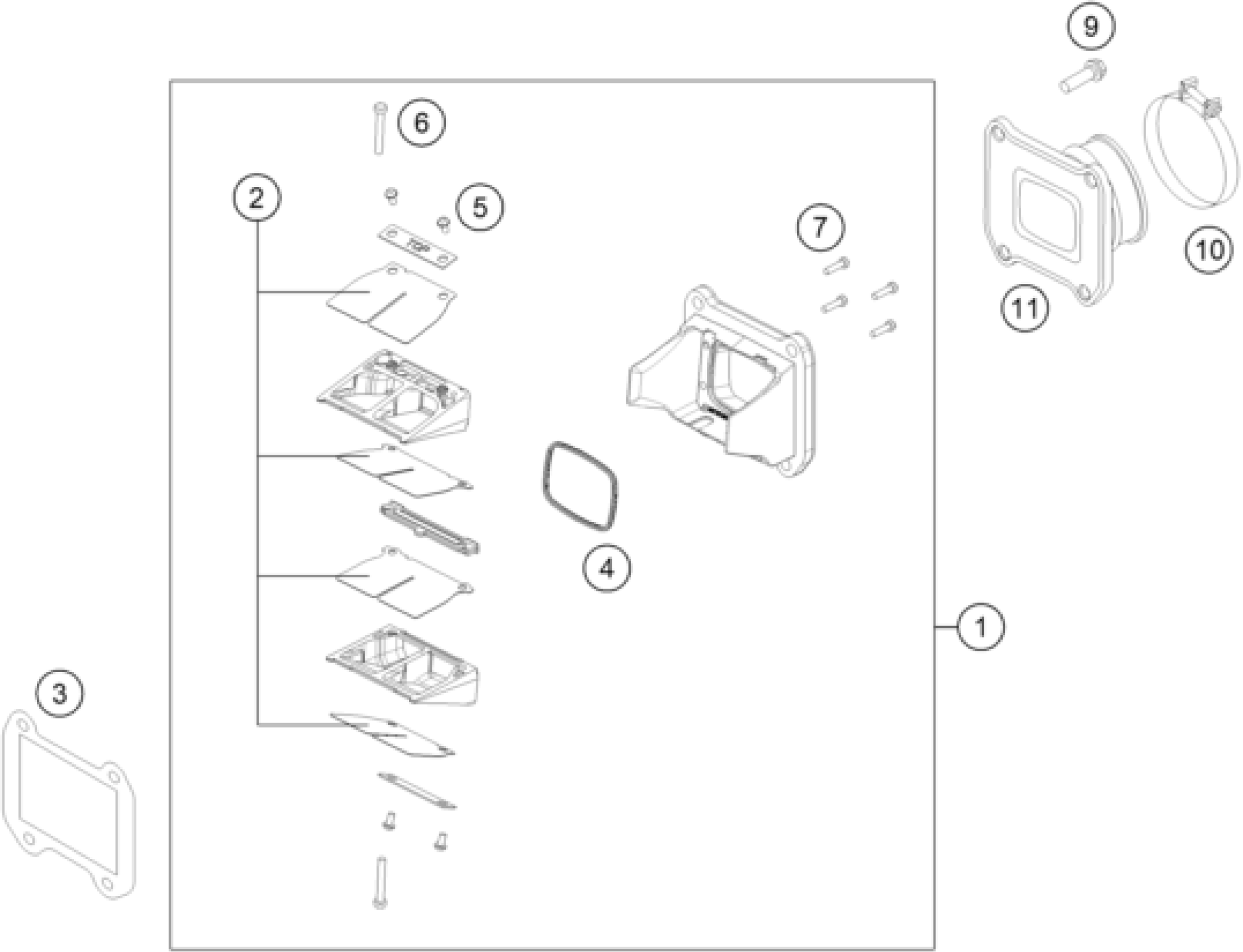

KTM 250 XC 2015 REED VALVE CASE Diagram

REED VALVE ASSY CPL.

54830151044

$175.30

REED VALVE SET

54830052344

$114.66

GASKET REED VALVE CASE

54830062200

$5.23

GASKET SUPPORTING PLATE

54830153050

$9.44

EJOT DELTA PT SCREW 30X6

0081030063

$1.49

EJOT DELTA PT SCREW 35X25

0081035253

$1.49

EJOT DELTA PT SCREW 30X12

0081030124

$1.49

HH collar screw M6x20 TX30

0025060206

$3.08

Hose clip GEMI 52mm

54330061000

$7.47

INTAKE FLANGE V-FORCE 04

54830050000

$43.10
